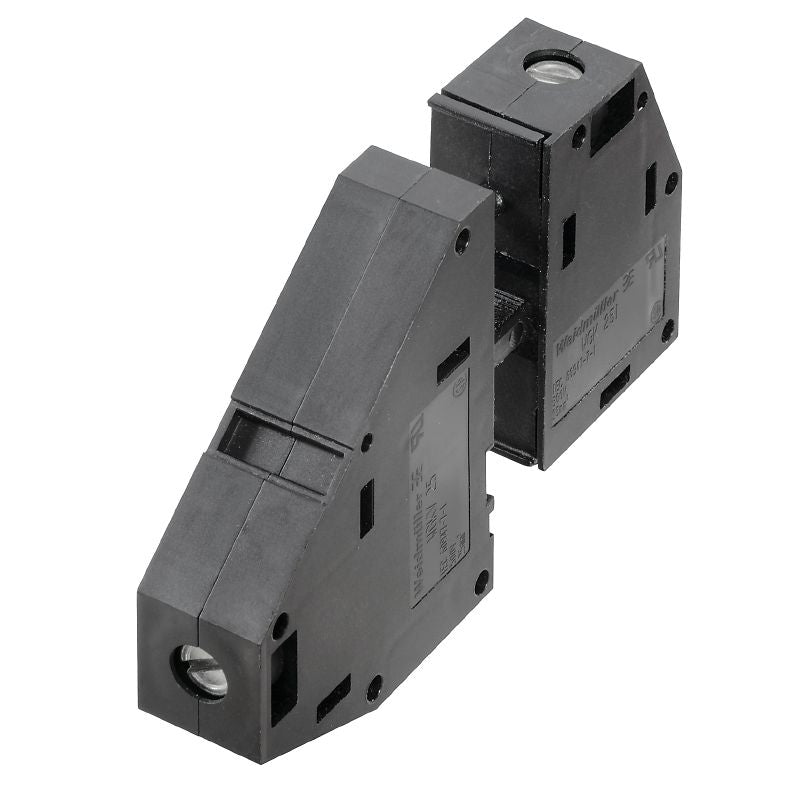

2444840000 - 25mm² Feed-Through Terminal for Direct Mounting (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

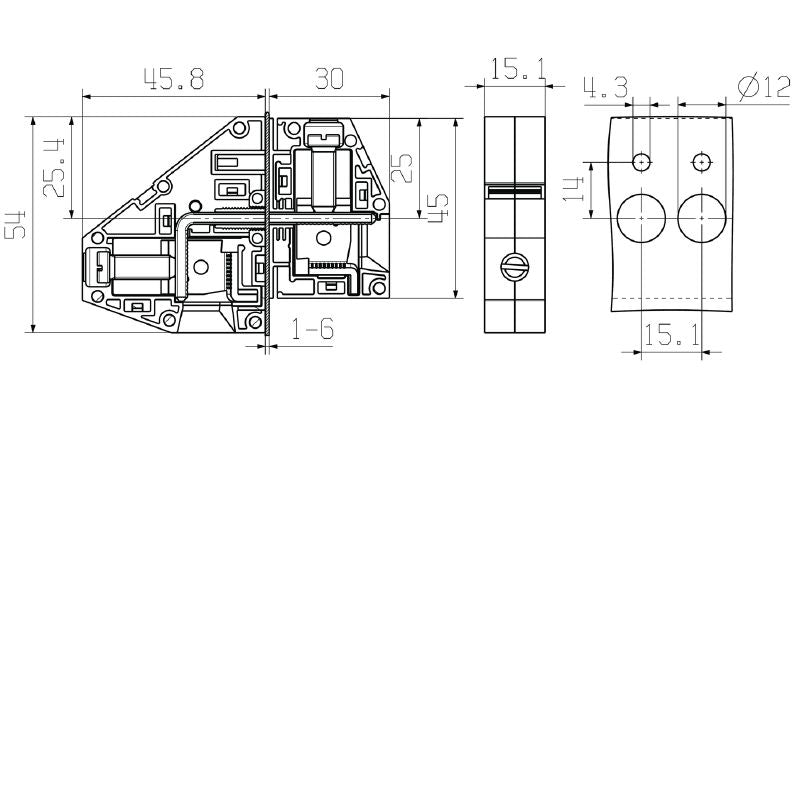

Introducing the WGKV 25 BK BX feed-through terminal, engineered for direct mounting applications This terminal boasts a rated cross-section of 25 mm² and is constructed from high-quality Wemid (PA) material It meets essential compliance standards, including ROHS, ensuring a reliable and environmentally friendly choice Designed with compact dimensions—54 mm in height, 151 mm in width, and 151 mm in length—this lightweight terminal weighs only 66.

48 grams, making it an efficient addition to your setup.

Features and Benefits:

•Part of the OMNIMATE Power series.

•Utilizes a screw connection for wiring.

•Includes touch-safe protection according to DIN VDE 0470.

•Can connect conductors with sizes from 4 mm² to 35 mm².

•Features two clamping yoke connections.

Specifications:
