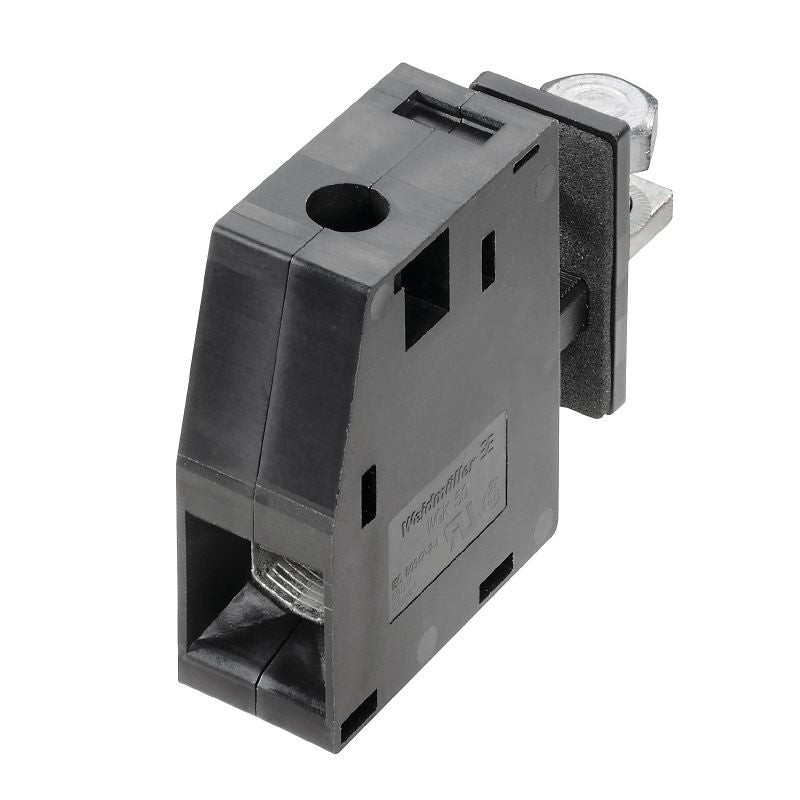

2428400000 - 50 mm² Feed-Through Terminal in Wemid Material (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the WGK 50 VP TXSC BX, a reliable feed-through terminal from the OMNIMATE Power series With a rated cross-section of 50 mm², this terminal is crafted from durable Wemid (PA) material, making it suitable for direct mounting applications It complies with IEC standards for an operating voltage of 690 V and a current of 150 A, and also meets UL standards with a voltage of 600 V and a current rating of 150 A.

Connection is seamless with compatibility for ring or spade lugs, ensuring effective electrical performance.

Features and Benefits:

•Compliant with RoHS without exemption.

•Suitable for a wide range of wire cross-sections from 10 mm² to 50 mm².

•Stripping length of 24 mm for proper connectivity.

•Touch-safe protection class IP 20.

•Insulating material made from Wemid (PA).

•Flammability rating of V-0 according to UL 94.

Specifications:
