Description:

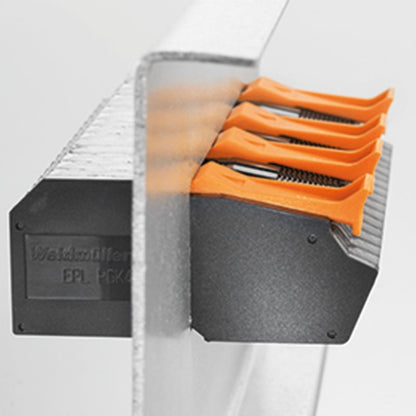

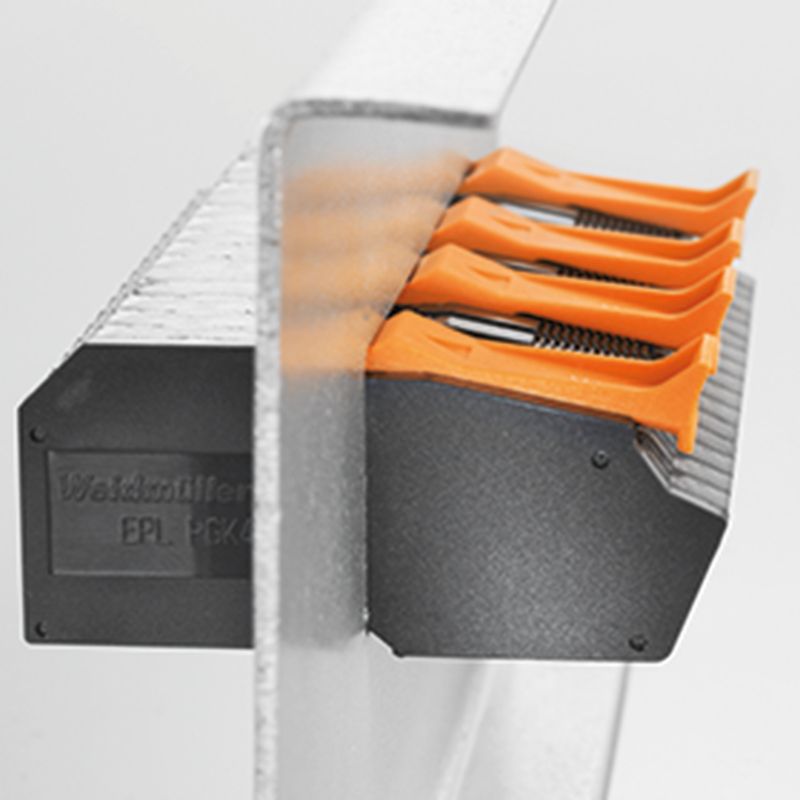

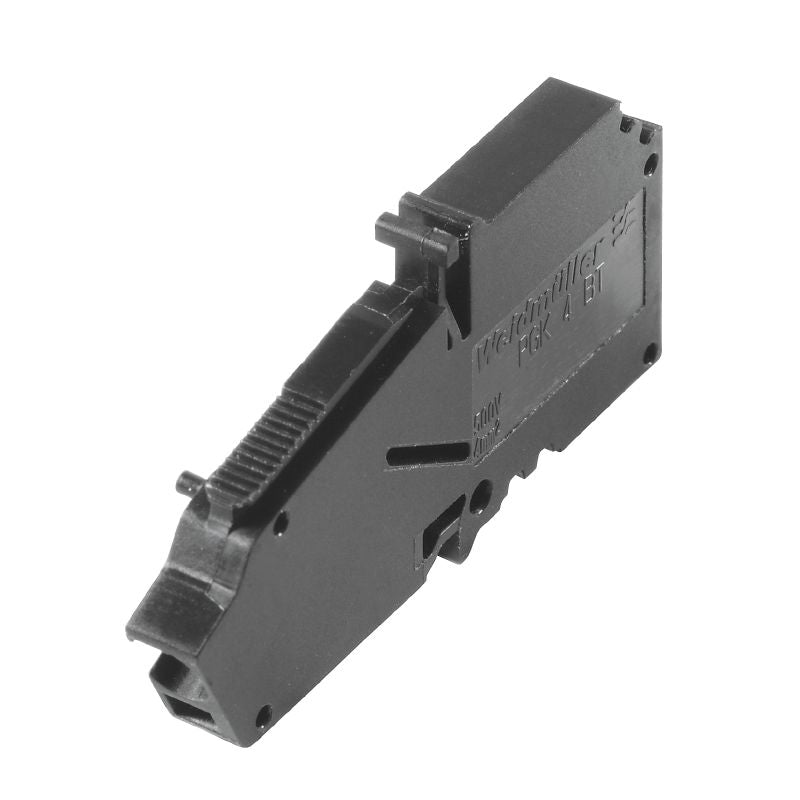

Introducing the OMNIMATE Power series PGK feed-through terminal, expertly designed for efficient power connection with a cross-section capacity of 4 mm² Crafted from durable Wemid (PA), this terminal is intended for straightforward installation It supports push-in connections that accommodate wire sizes from 05 to 4 mm², ensuring a secure and reliable fit Additionally, it boasts a cURus E60693 certification and complies with stringent RoHS standards, making it a trustworthy choice for your electrical needs.
Features and Benefits:
•Compliant with RoHS.
•Rated for IEC: 500 V / 32 A / 0.5 - 4 mm².
•UL rating: 300 V / 30 A / AWG 24 - AWG 10.
•Protection degree of IP20.
•Wire connection method is push-in without actuator.
•Fitted by customer.
•Touch-safe protection according to DIN VDE.
•Material made of Wemid (PA).

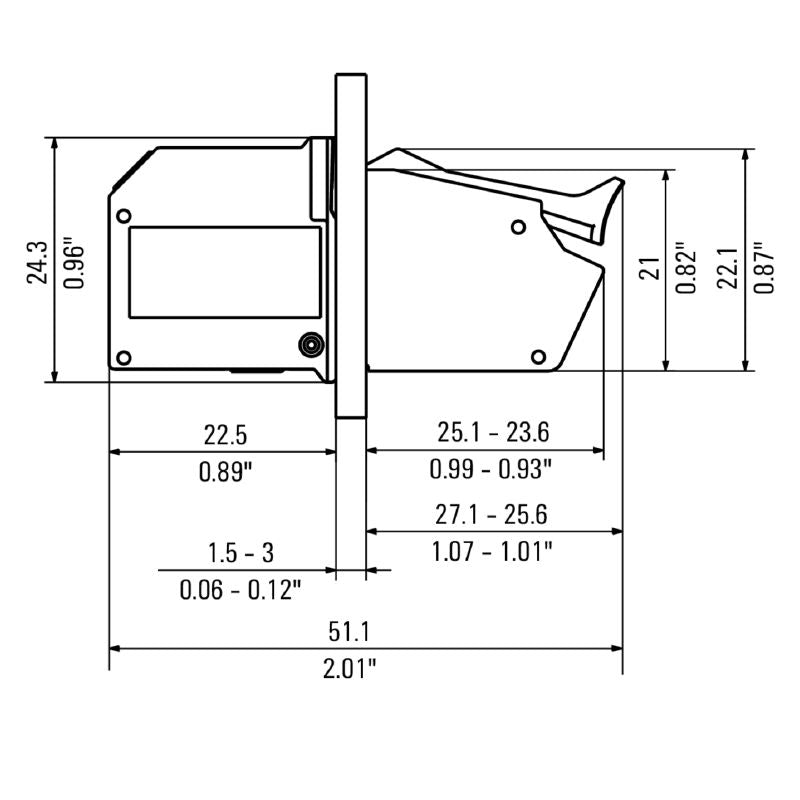

Specifications:
| Height | 24.3 mm |
| Width | 5.1 mm |
| Length | 5.1 mm |
| Operating temperature, min | -50 °C |
| Operating temperature, max | 120 °C |
| Rated current, min. number of poles | 32 A |
| Rated current, max. number of poles | 32 A |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated voltage (Use group C / UL 1059) | 150 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 4 mm² |
| Insulating material | Wemid (PA) |
| Contact material | Cu-alloy |
| UL 94 flammability rating | V-0 |
| Colour | black |
