Description:

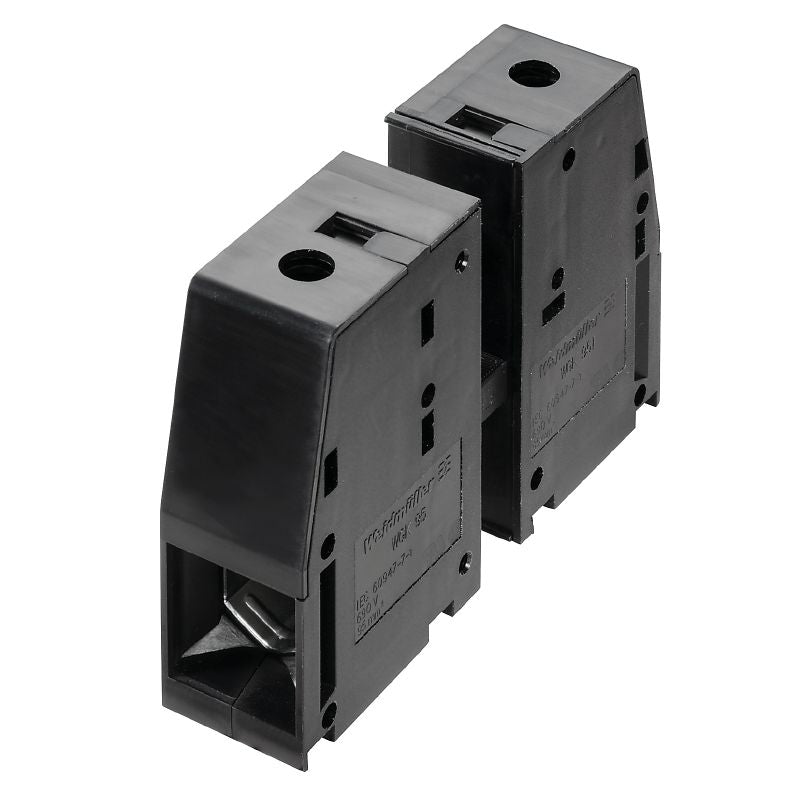

Introducing the WGK 95 BK BX feed-through terminal, expertly designed for a cross-section of 95 mm² This terminal utilizes a reliable screw connection and is crafted from durable black Wemid (PA) material It's ideal for direct installation and holds a UL Listing, ensuring compliance with safety standards Operating safely under IEC guidelines, it supports a maximum voltage of 1000 V and a current rating of 232 A, with UL certifications up to 600 V and 255 A.
Each terminal comes securely packed in a box, complete with precise dimensions and weight specifications to streamline installation and fitting.
Features and Benefits:
•Screw connection for improved reliability.
•Compliant with RoHS.

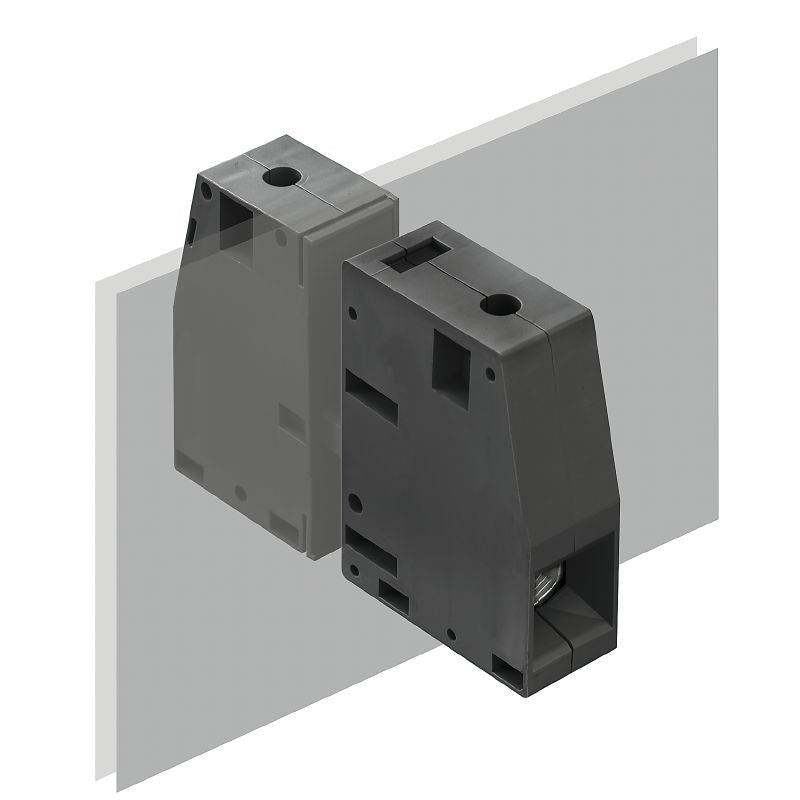

•Direct mounting capability.
•Meets IEC and UL standards.
Specifications:

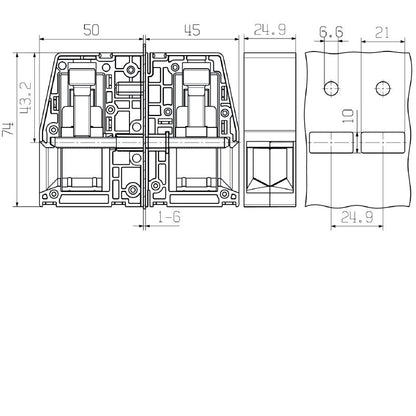

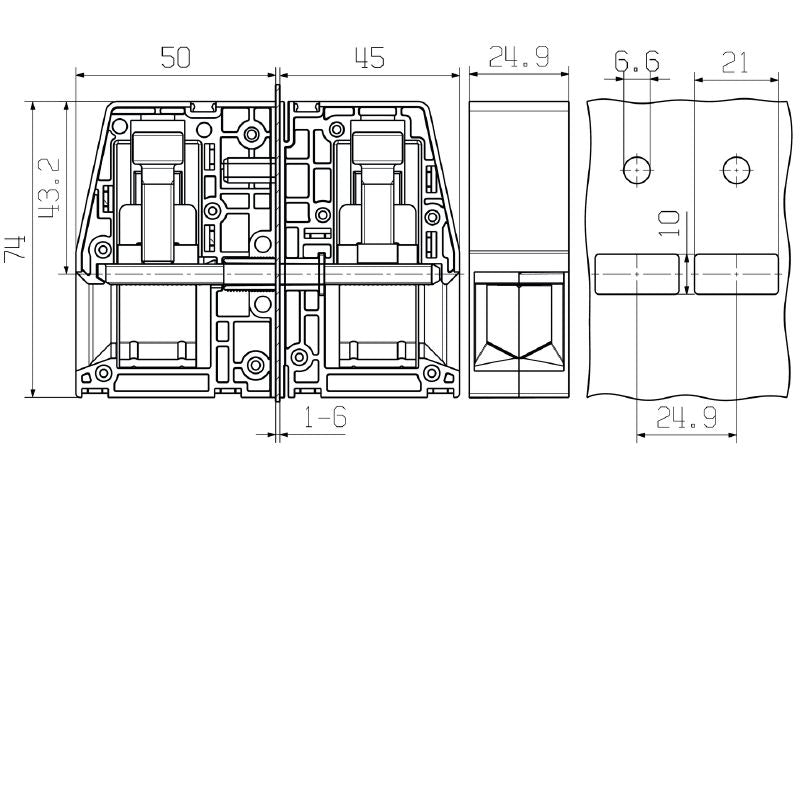

| Height | 74 mm |
| Width | 25 mm |
| Length | 24.9 mm |
| Net weight | 214.544 g |
| Rated Voltage (IEC) | 1000 V |
| Rated Current (IEC) | 232 A |
| Rated Voltage (UL) | 600 V |
| Rated Current (UL) | 255 A |
| Tightening Torque (min) | 15 Nm |
| Tightening Torque (max) | 20 Nm |
| IP Rating | IP20 |
| Insulating Material | Wemid (PA) |
| Operating Temperature (min) | -50 °C |
| Operating Temperature (max) | 120 °C |
| Clamping Range (min) | 35 mm² |
| Clamping Range (max) | 95 mm² |
| Wire Connection Cross Section AWG (min) | AWG 4 |
| Wire Connection Cross Section AWG (max) | kcmil 250 |
