2439400000 - 10 mm² Screw Terminal Block, RoHS Compliant (Pack of 50)

2439400000 - 10 mm² Screw Terminal Block, RoHS Compliant (Pack of 50)

SKU: SKU: 2439400000   Download PDF

Select a Variant:
  • 2439400000 - 10 mm² Screw Terminal Block, RoHS Compliant (Pack of 50)
Qty:
Regular price Now $339.73   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $339.73 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

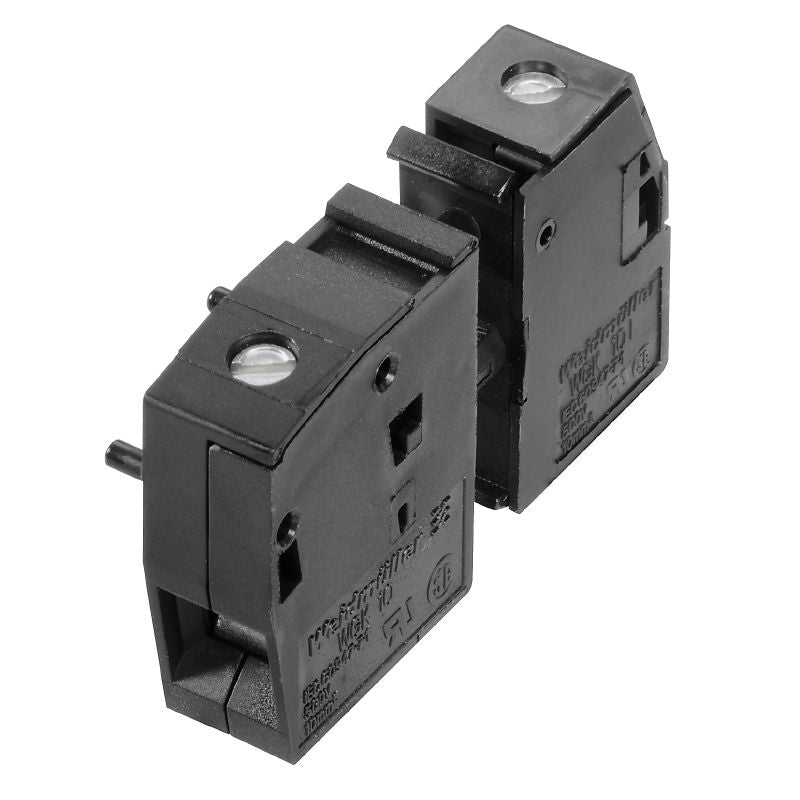

Introducing the OMNIMATE Power series WGK, a robust feed-through terminal designed to securely connect wires with a rating of 10 mm² This component features a reliable screw connection method for optimal wiring stability Crafted from high-quality Wemid (PA), it allows for direct mounting with a bushing, ensuring a seamless installation process Additionally, it complies with RoHS regulations and meets stringent IEC standards for electrical insulation, making it a safe and efficient choice for your projects.

Features and Benefits:

    •Screw connection method.

    •Compliant with RoHS.

    •Direct mounting capability.

    •IP20 protection degree.

    •Wide temperature range for operation and storage.

Specifications:

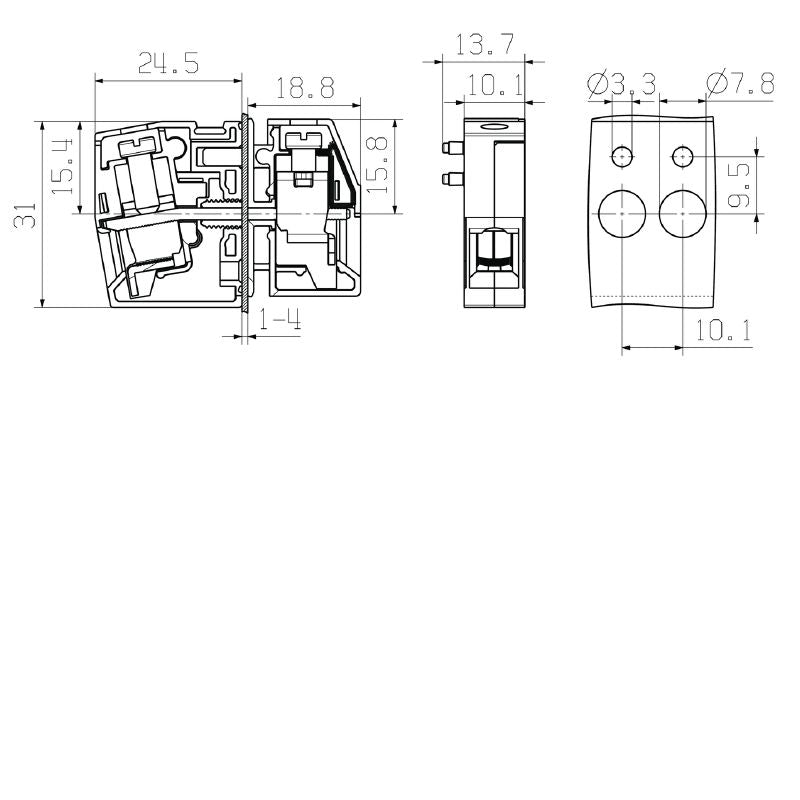

 Height 31 mm
 Width 13.7 mm
 Length 13.7 mm
 Insulating material Wemid (PA)
 Rated voltage (IEC) 500 V
 Rated current (IEC) 57 A
 Tightening torque, min. 1.2 Nm
 Tightening torque, max. 2.4 Nm
 Pin series quantity 1
 Number of poles 1
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
 Operating temperature, min. -50 °C
 Operating temperature, max. 120 °C
 Clamping range, min. 0.5 mm²
 Clamping range, max. 16 mm²
