2444800000 - 25mm² Feed-Through Terminal, 690V, Compact 48.5mm Height (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

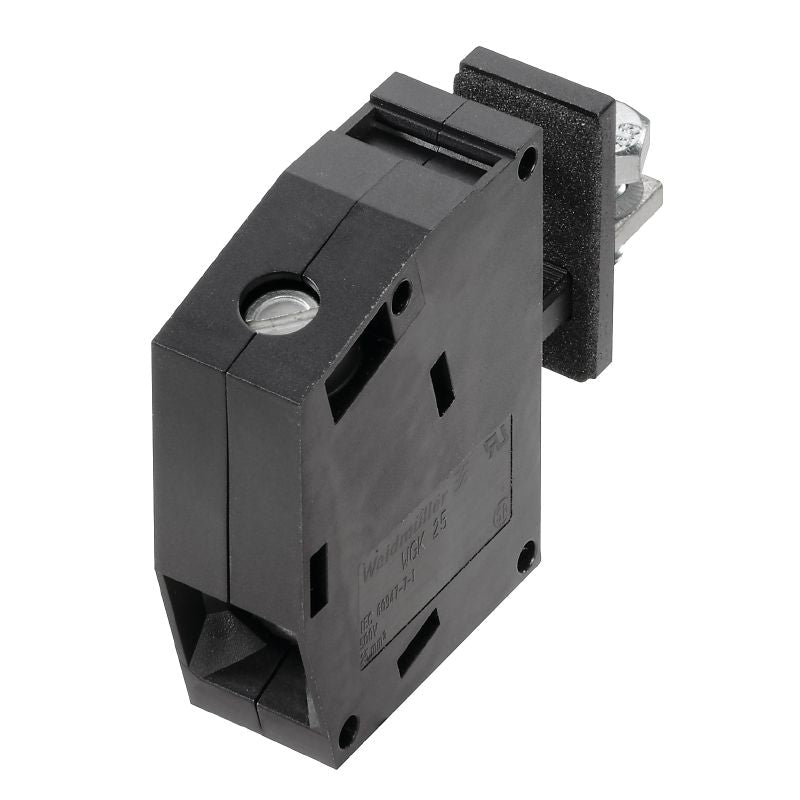

The WGK 25 VP BK BX is an advanced feed-through terminal engineered for direct mounting, offering a rated cross-section of 25 mm² Constructed from durable Wemid (PA) material, this terminal accommodates multiple wire connection styles, including ring cable and spade lug It operates efficiently with a voltage capacity of 690 V and a current rating of 101 A in accordance with IEC standards, while UL certifications allow for 600 V and 100 A.

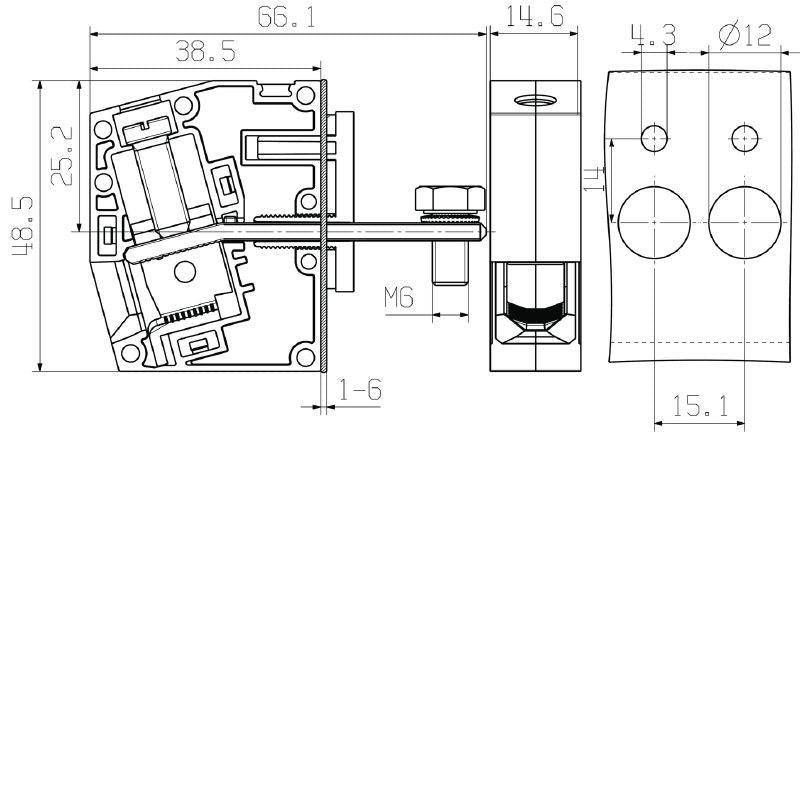

With compact dimensions of 485 mm in height, 146 mm in width, and 146 mm in length, it has a lightweight design at just 47 g Additionally, this terminal adheres to RoHS regulations and is free from substances of very high concern as outlined by REACH, ensuring compliance and safety for your applications.

Features and Benefits:

•Compliant with RoHS regulations.

•Designed for direct mounting.

•Cable lug connection method.

•IP 20 touch-safe protection.

•Includes multiple wire connection options.

•Compact design with a lightweight structure.

Specifications:
