2440650000 - 16mm² Feed-Through Terminal, 500V, RoHS & UL Certified (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

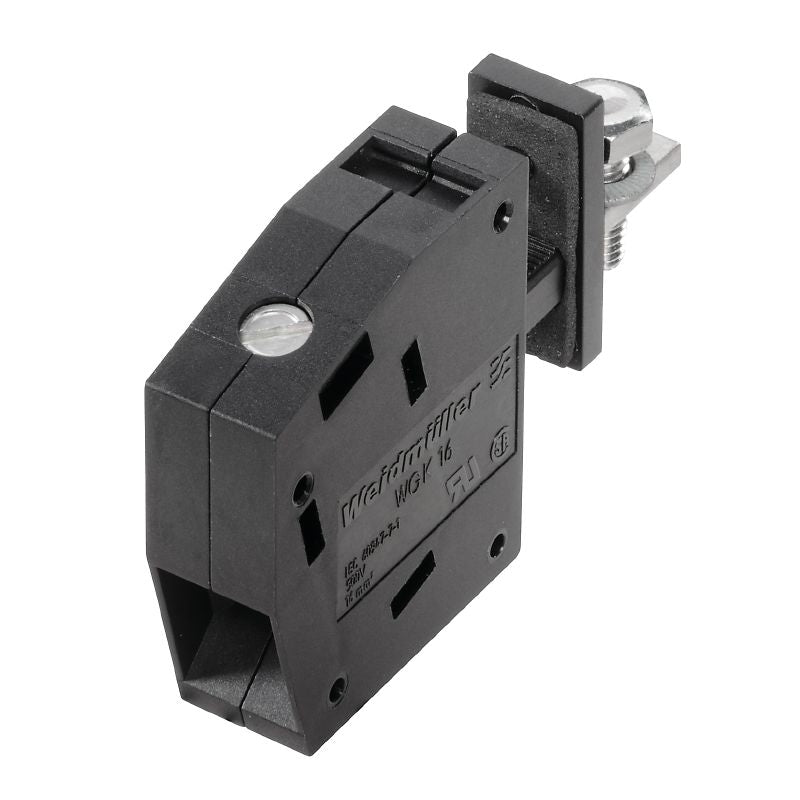

Introducing the WGK 16 VP TXSC GY BX feed-through terminal, expertly crafted for a cross-section of 16 mm² This component is constructed from durable Wemid (PA) material and is compliant with RoHS standards, in addition to holding a UL certification under file number E60693 The terminal functions at a rated voltage of 500 V and can manage up to 76 A in line with IEC guidelines, while also accommodating 600 V and 85 A as per UL specifications.

It features connection options for both ring and spade lugs, ensuring versatility for your electrical needs Importantly, this device is confirmed to have no substances of very high concern (SVHC) present above 01 wt%, adhering to strict environmental standards.

Features and Benefits:

•Compliant with RoHS without exemption.

•Rated for a wide temperature range from -50 °C to 120 °C.

•Offers touch-safe protection as per DIN VDE 0470.

•Allows for various wire connection methods including ring and spade lugs.

•Durable construction with flame rating V-0.

Specifications:
