2440800000 - OMNIMATE Feed-Through Terminal, 16 mm², 500V/76A Rating (Pack of 50)
2440800000 - OMNIMATE Feed-Through Terminal, 16 mm², 500V/76A Rating (Pack of 50)
SKU: SKU: 2440800000 Download PDF
- 2440800000 - OMNIMATE Feed-Through Terminal, 16 mm², 500V/76A Rating (Pack of 50)
- 2440800000 - OMNIMATE Feed-Through Terminal, 16 mm², 500V/76A Rating (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

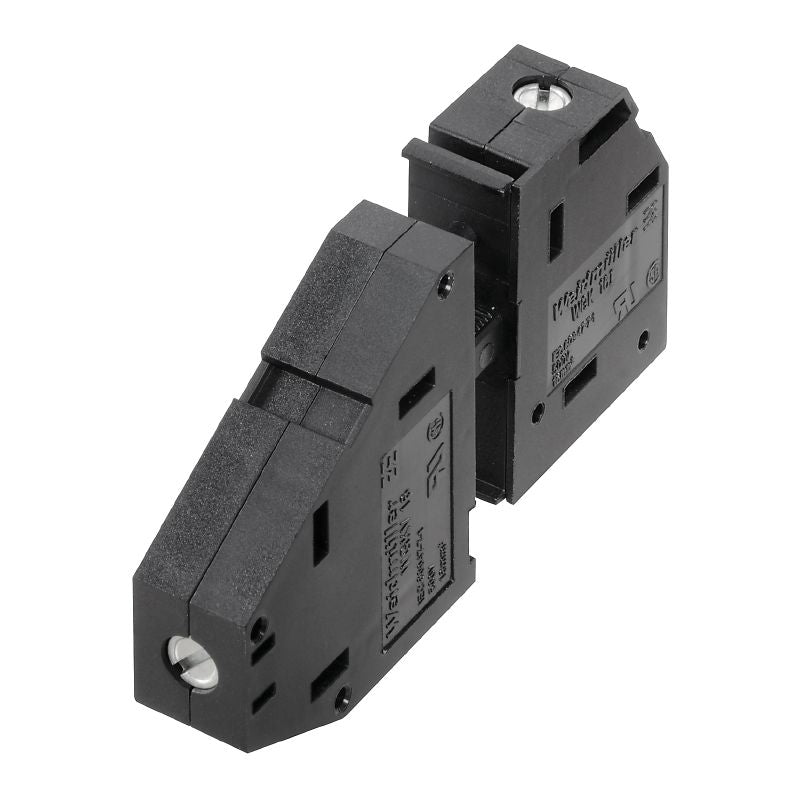

Introducing the WGKV 16/Z BK BX, a robust feed-through terminal from the OMNIMATE Power series This terminal is crafted from high-quality Wemid (PA) material, making it ideal for direct mounting applications Engineered to meet IEC standards, it supports a voltage of 500 V and a current of 76 A, while also being UL rated for 600 V and 85 A This versatile component accommodates a variety of wire cross-sections ranging from 0.
5 mm² to 25 mm², ensuring reliable performance for your electrical needs.
Features and Benefits:
•Easy mounting with screw connection.
•IP 20 protection degree for safety.
•Temperature operation ranges from -50 °C to 120 °C.
•Compliant with RoHS and REACH regulations.
•Fitted by customer for greater flexibility.
Specifications:
| Approvals | RoHS Compliant, UL File Number E60693 |

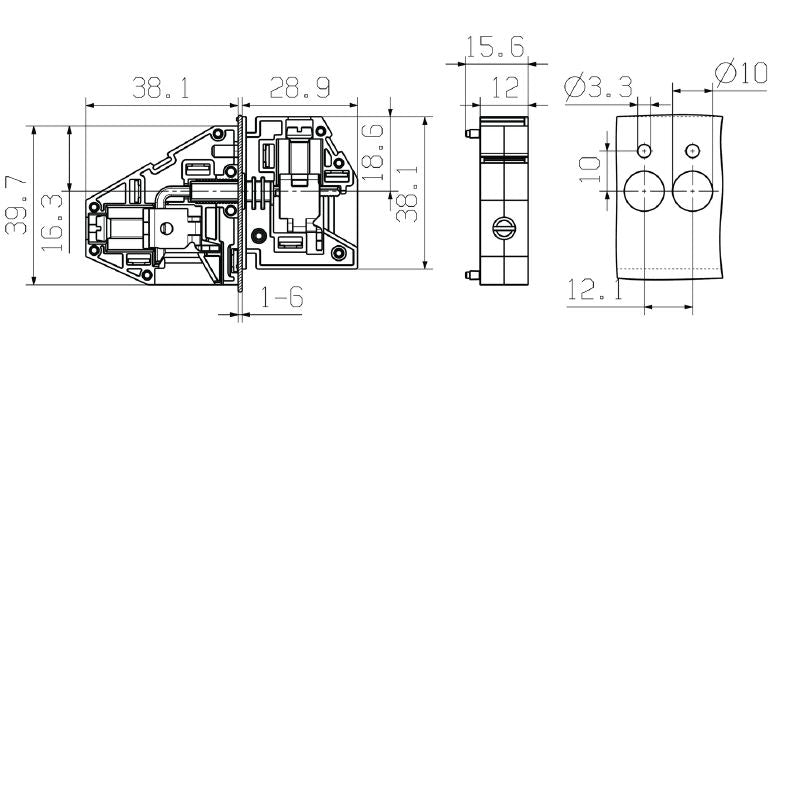

| Height | 39.7 mm |
| Width | 15.7 mm |
| Length | 15.6 mm |
| Wire Connection Method | Screw connection |
| Number of Poles | 1 |
| Tightening Torque, min. | 2 Nm |
| Tightening Torque, max. | 2.3 Nm |
| Insulating Material | Wemid (PA) |
| Contact Material | Cu-alloy |
| Storage Temperature, min | -40 °C |
| Storage Temperature, max | 70 °C |
| Operating Temperature, min | -50 °C |
| Operating Temperature, max | 120 °C |
| Rated Voltage (IEC) | 500 V |
| Rated Current (IEC) | 76 A |
| Rated Voltage (UL) | 600 V |
| Rated Current (UL) | 85 A |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 25 mm² |
| Flammability Rating | V-0 |
