2440750000 - Compact 39.7mm Feed-Through Terminal, 16mm² Cross-Section (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

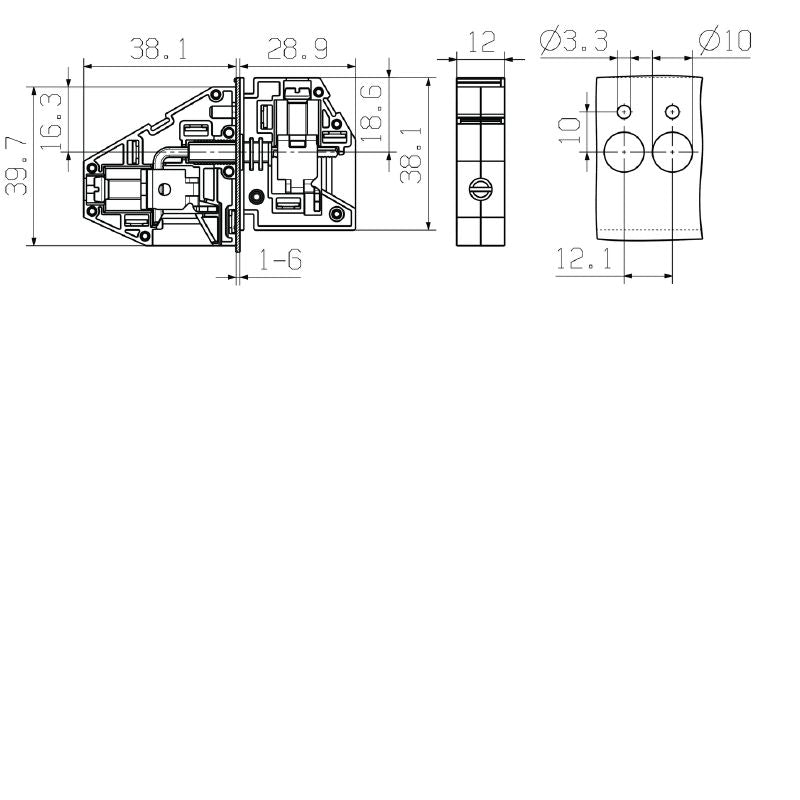

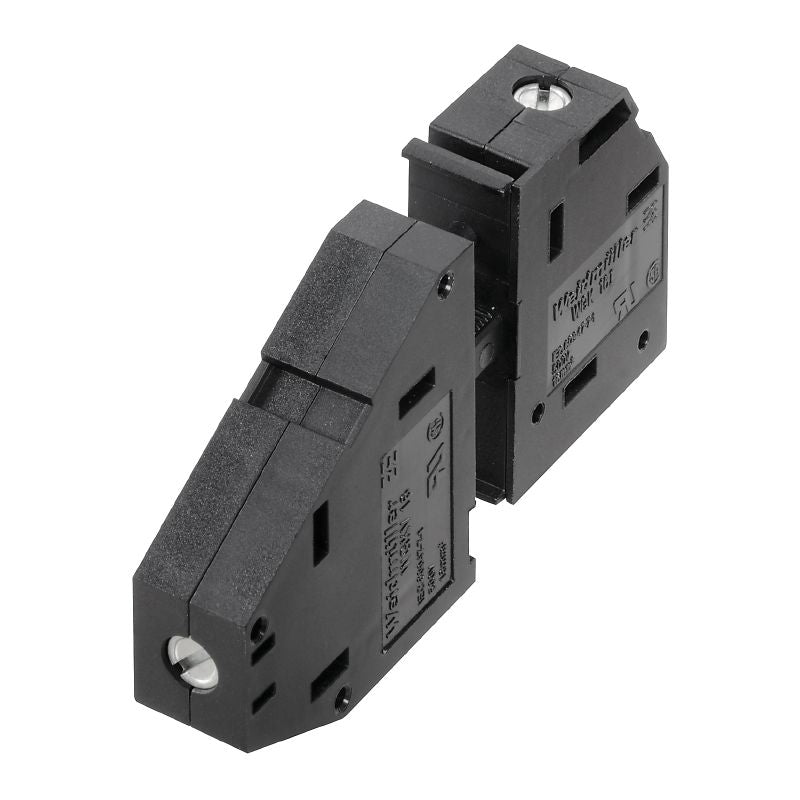

Introducing the WGKV 16 GY BX, a robust feed-through terminal from the OMNIMATE Power series, specifically engineered for easy direct installation It boasts a rated cross-section of 16 mm² and is made from durable Wemid (PA) material This terminal efficiently connects wires ranging from 05 to 25 mm², accommodating both stranded and solid conductor types With compact dimensions of 397 mm in height, 12 mm in width, and 12 mm in length, it weighs just 33.

78 g Designed with safety in mind, it features an IP20 protection grade, adhering to the DIN VDE 0470 standards for touch safety.

Features and Benefits:

•RoHS compliant without exemption.

•Screw connection method.

•Touch-safe protection to IP 20.

•Compact size allows for efficient use in various applications.

•Suitable for use in various electrical and electronic applications requiring high-quality terminal connections.

Specifications:
