2439430000 - Compact 10mm² Power Terminal, Green/Yellow Insulation (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

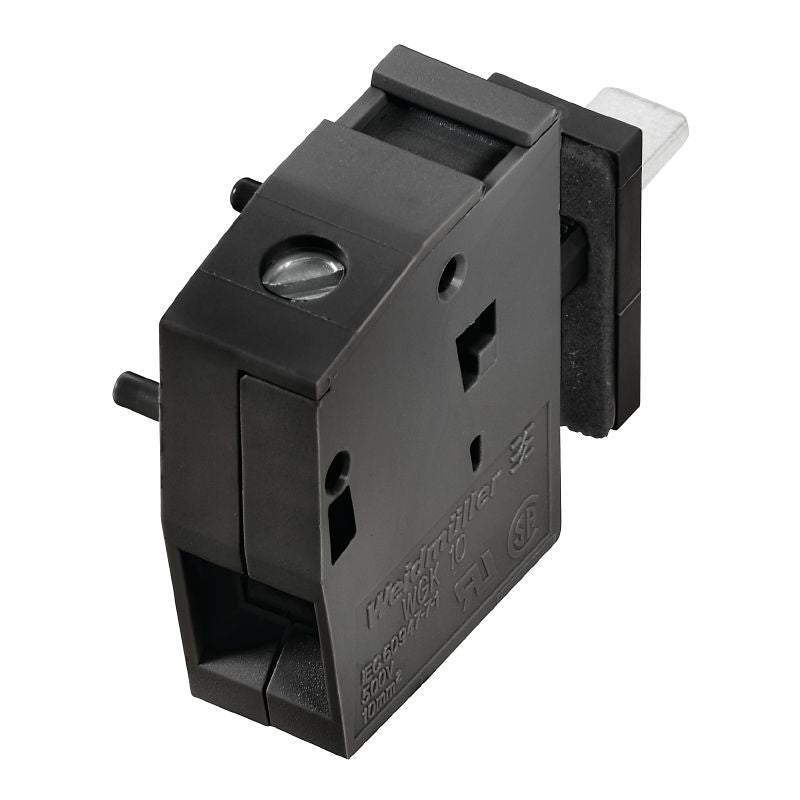

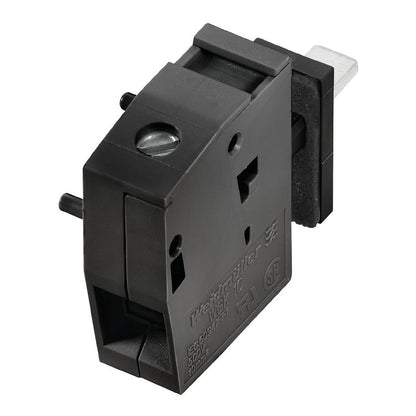

Introducing the WGK 10 VP GN/YE BX, an advanced feed-through terminal from the OMNIMATE Power series, crafted to support a rated cross-section of 10 mm² This terminal is compliant with RoHS regulations and proudly features UL certification E60693 Designed for versatility, it can manage a rated voltage of up to 500 V and a maximum current of 57 A per IEC standards, while adhering to UL guidelines for up to 300 V and 65 A.

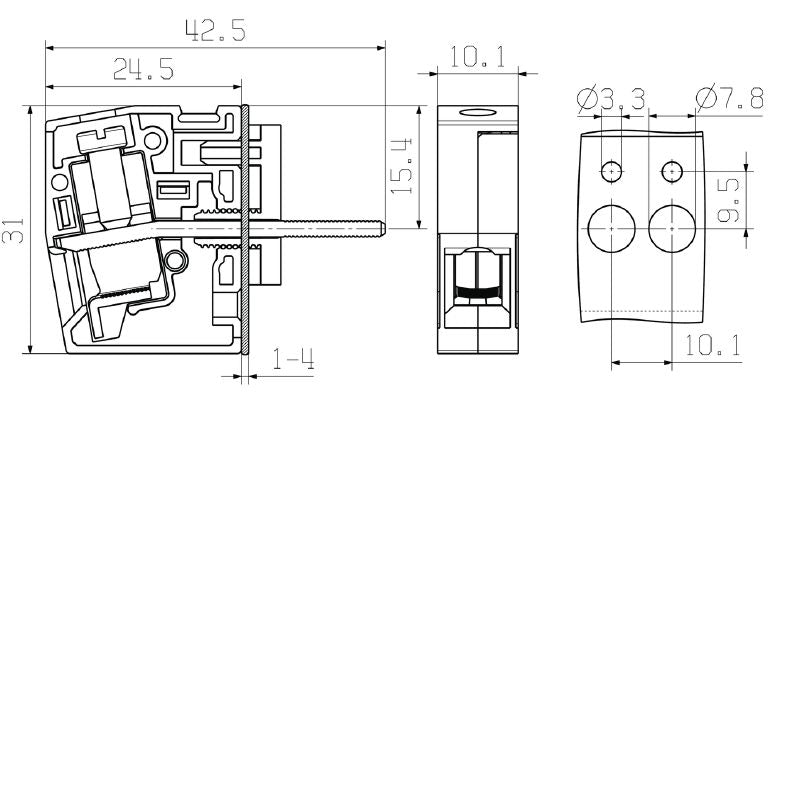

With compact dimensions of 101 mm in height and length, and a width of 31 mm, this terminal is constructed from durable Wemid (PA) material, showcasing a distinct green and yellow insulation For added safety, it boasts an IP20 protection rating and is designed to function within various temperature ranges for both storage and operation, ensuring reliability in all environments.

Features and Benefits:

•Screw and solder wire connection method.

•Integration of touch-safe protection according to DIN VDE 0470.

•Lightweight design with a net weight of 13 g.

•Easy to install with clamping and screw connection types.

Specifications:
