Description:

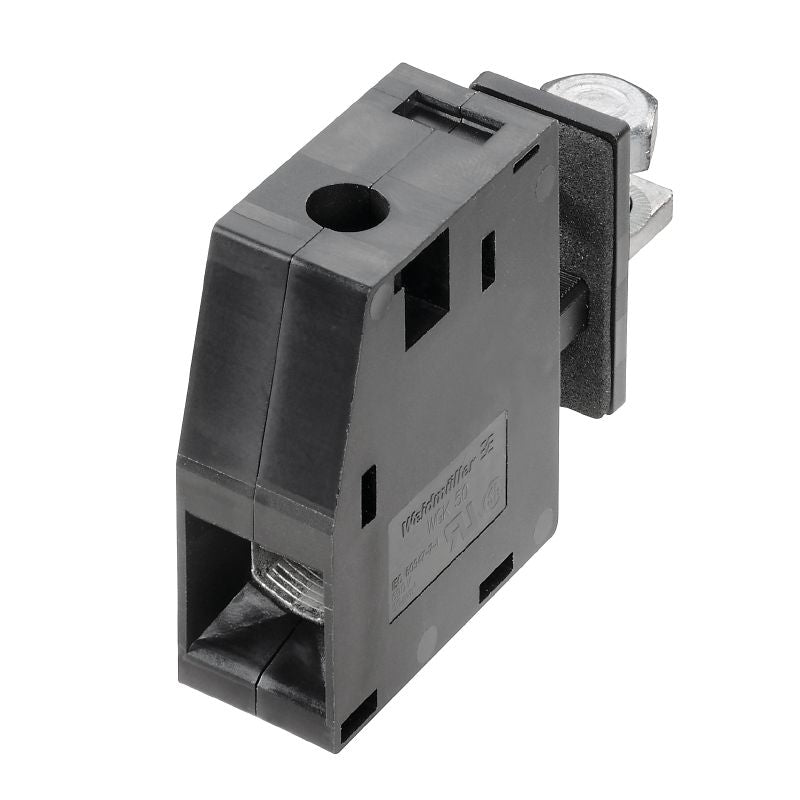

Introducing the WGK 50 VP/Z RD BX feed-through terminal from the OMNIMATE Power series, engineered for direct mounting with a rated cross-section of 50 mm² This terminal meets RoHS and UL compliance standards, ensuring safety and reliability It supports a voltage capacity of 690 V at 150 A in accordance with IEC regulations, and 600 V at 150 A according to UL specifications Each terminal measures 54 mm in height, 22.
8 mm in both width and length, and has a net weight of 814 grams Each unit comes neatly packaged in a box, ready for installation.
Features and Benefits:
•Direct mounting option.
•Single pole design.
•Cable lug connection method.
•Touch-safe protection according to DIN VDE 0470.
•Clamping yoke and screw connection types.
•Material made of Wemid (PA).
•IP20 protection degree for safety.
Specifications:
| Rated cross-section | 50 mm² |
| Rated voltage (IEC) | 690 V |
| Rated current (IEC) | 150 A |
| UL voltage rating | 600 V |
| Operating temperature (max) | 120 °C |
| Storage temperature (min) | -40 °C |
| Storage temperature (max) | 70 °C |
| Number of poles | 1 |
| Tightening torque (min) | 4 Nm |
| Tightening torque (max) | 5.5 Nm |
| Stripping length | 24 mm |
| Clamping range (min) | 10 mm² |
| Clamping range (max) | 50 mm² |
| IP protection degree | IP20 |
| Material data | Wemid (PA) |
