Description:

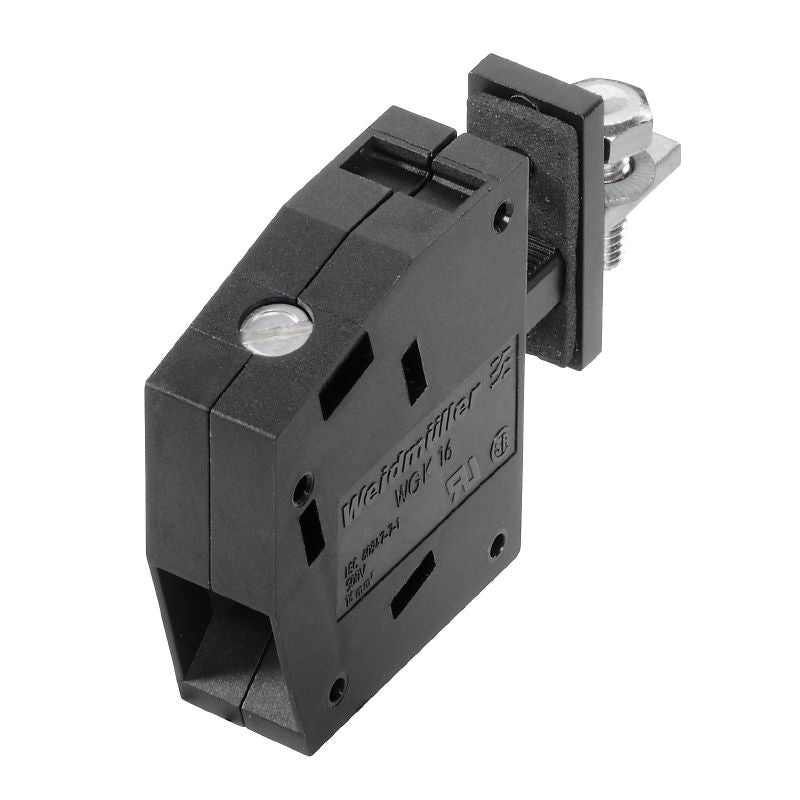

Introducing the WGK 16 VP BLOCK, a reliable feed-through terminal from the OMNIMATE Power series With a rated cross-section of 16 mm², this terminal is compliant with RoHS standards and bears UL certification, featuring certificate number E60693 It is engineered for ease of use with wire connections via cable lugs, including ring or spade types, and provides a 180° conductor outlet This versatile terminal accommodates conductors sized from 0.

5 mm² to 25 mm², compatible with wire gauges ranging from AWG 20 to AWG 4, making it an excellent choice for various electrical applications.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Robust construction with an insulating material of Wemid (PA).

•Has a protection degree of IP20.

•Suitable for operating temperatures ranging from -50 °C to 120 °C.

•Includes touch-safe protection according to DIN VDE 0470.

Specifications:

Rated Voltage (IEC)	500 V

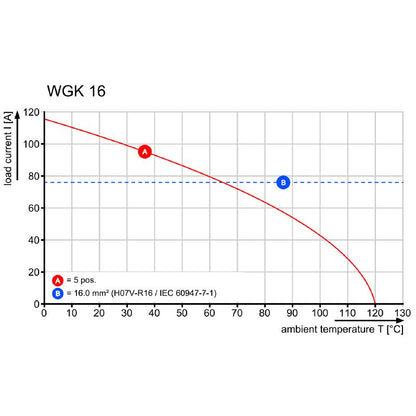

Rated Current (IEC)	76 A
Clamping torque (min)	2 Nm
Clamping torque (max)	2.3 Nm
Clamping range (min)	0.5 mm²
Clamping range (max)	25 mm²
UL Rated Voltage	600 V
UL Rated Current	85 A
Storage Temperature (min)	-40 °C
Storage Temperature (max)	70 °C
Operating Temperature (min)	-50 °C
Operating Temperature (max)	120 °C
UL 94 Flammability Rating	V-0
Screwdriver Blade Size	1.0 x 5.5
Material	Cu-alloy with tinned surface
