1250930000 - UL Certified Black Terminal Block for 4 mm² Wire Connections (Pack of 50)

1250930000 - UL Certified Black Terminal Block for 4 mm² Wire Connections (Pack of 50)

SKU: 1250930000   Download PDF

Select a Variant:
  • 1250930000 - UL Certified Black Terminal Block for 4 mm² Wire Connections (Pack of 50)
Qty:
Now $209.67   Web pricing policy
BEFORE   $0.00 Now $209.67 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

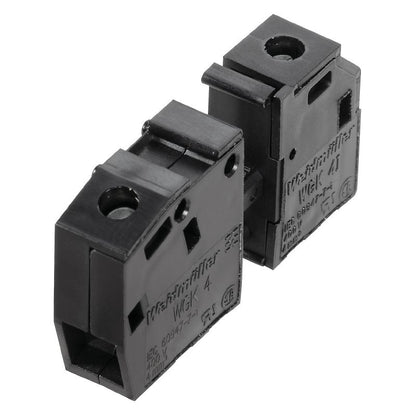

Introducing the WGK 4 BK BX, a specialized feed-through terminal block engineered for connections with a 4 mm² wire cross-section Crafted from durable black Wemid (PA) material, this component features a reliable screw connection mechanism With a single pole design, it allows for straightforward direct mounting Certified by UL for safety, it supports a maximum voltage of 300 V and a current capacity of 30 A while complying with RoHS regulations.

Perfect for all your wiring needs!.

Features and Benefits:

    •Complies with RoHS standards without exemptions.

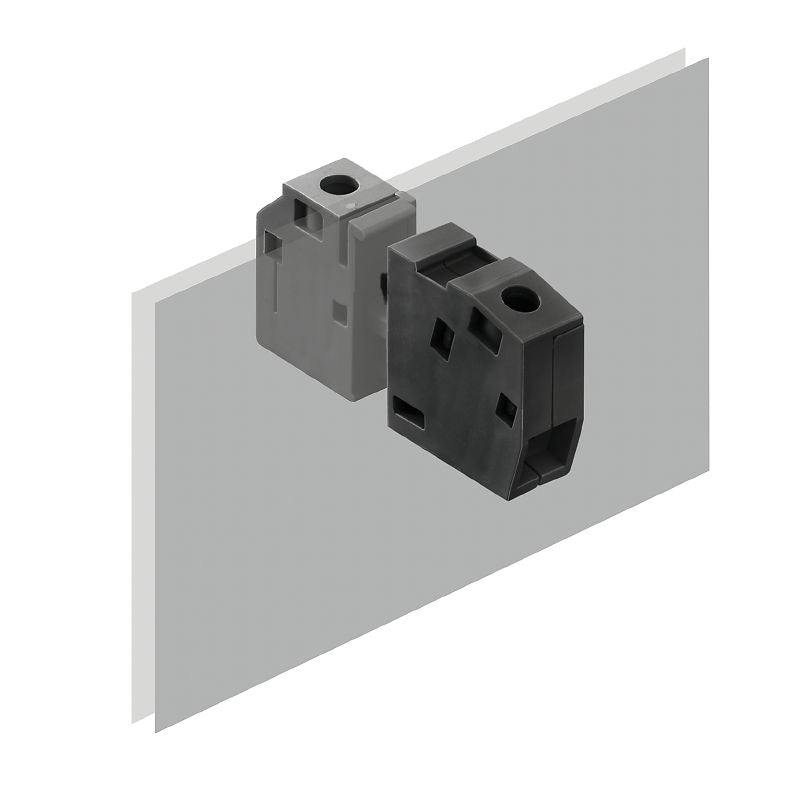

    •Direct mounting capability.

    •Low space requirement with a compact design.

    •Suitable for a variety of wire types and sizes.

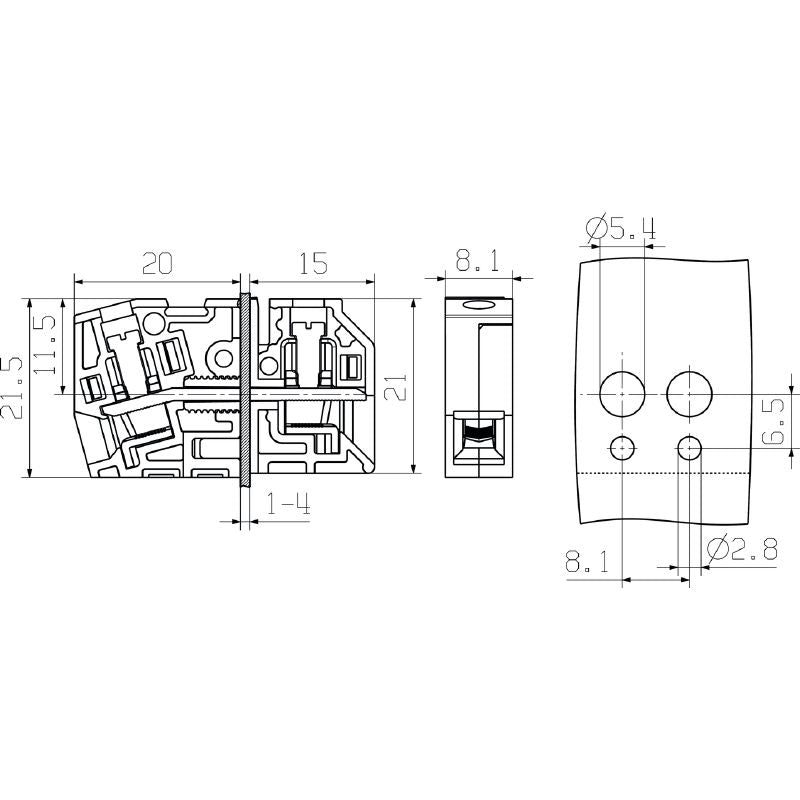

Specifications:

 Height 21.5 mm
 Width 8.1 mm
 Length 8.1 mm
 Net weight 8.48 g
 Rated voltage 500 V
 Rated current 32 A
 Wire connection method Screw connection
 Number of poles 1
 Clamping range (min) 0.5 mm²
 Clamping range (max) 6 mm²
 Insulating material Wemid (PA)
 Color black
 Operating temperature -50 °C to 120 °C
 Storage temperature -40 °C to 70 °C
 Protection degree IP20
 Flammability rating V-0
