Description:
Introducing the WGKV 16/Z GY BX feed-through terminal, engineered for reliable performance with a maximum cross-section capacity of 16 mm² Constructed from robust Wemid (PA), this terminal is designed for direct mounting and features a secure clamping yoke connection Its wire terminals utilize a screw connection, ensuring dependable connections with a tightening torque range of 2 to 23 Nm This versatile terminal accommodates conductor outlet directions of 90° and 270°, meeting RoHS compliance standards for environmental safety.
Perfect for your wiring needs, this terminal combines functionality with reliability.
Features and Benefits:
•Rated voltage up to 600 V and supports rated currents of up to 85 A.
•Touch-safe protection according to DIN VDE 0470.
•Compatible with clamping yokes for secure connectivity.
•Compliant with RoHS without exemptions.

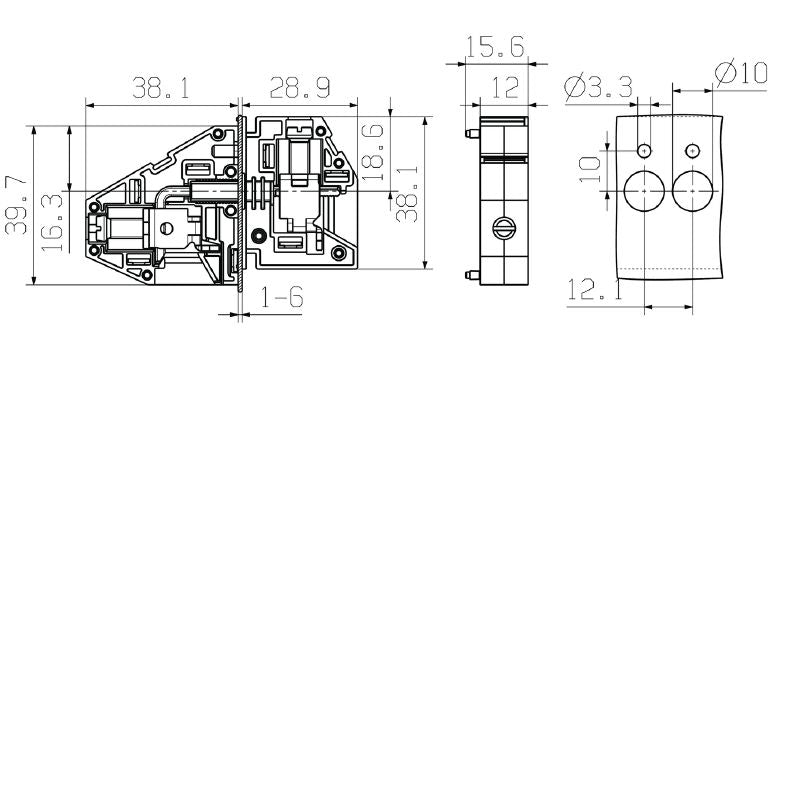

Specifications:
| Height | 39.7 mm |
| Width | 15.7 mm |
| Length | 15.6 mm |
| Net weight | 33.68 g |
| Wire connection method | Screw connection |
| Number of poles | 1 |
| IP Protection degree | IP20 |
| Operating temperature | -50 to 120 °C |
| Storage temperature | -40 to 70 °C |
| Conductor cross section (min) | 0.5 mm² |
| Conductor cross section (max) | 25 mm² |
| UL voltage rating | 600 V |
| IEC voltage rating | 500 V |
| Rated current | 76 A |
