2439380000 - 10mm² Feed-Through Terminal Approved for 500V Applications (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

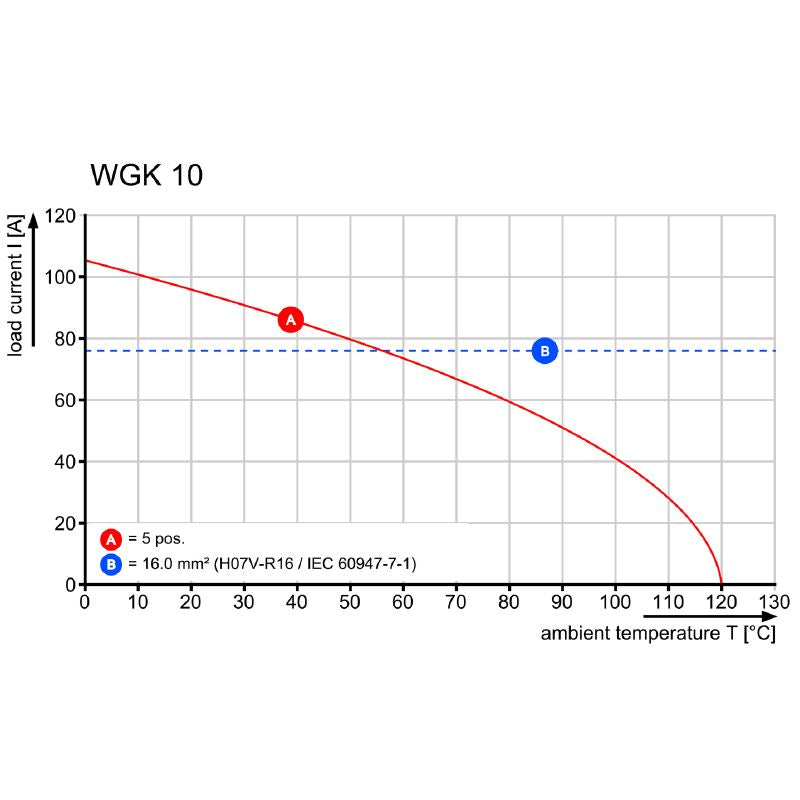

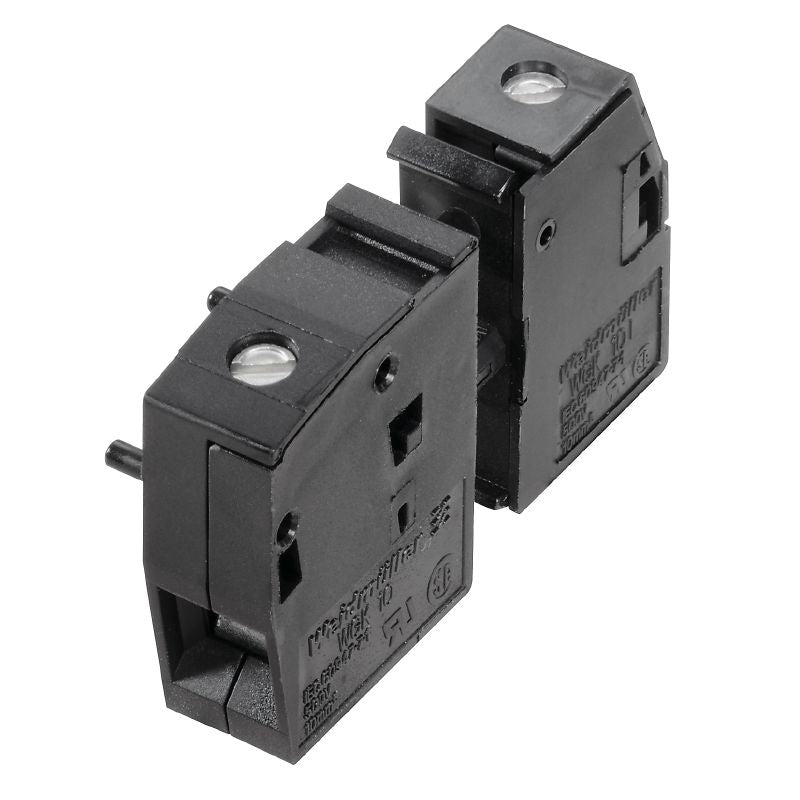

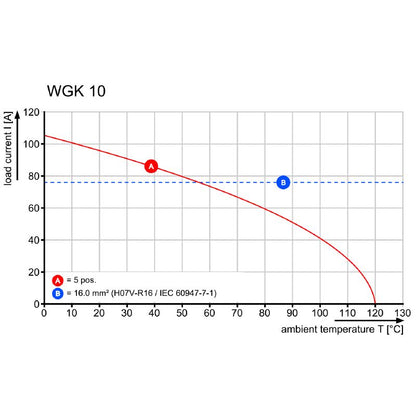

Introducing the WGK 10 GN/YE BX feed-through terminal, an essential component for your electrical applications With a rated cross-section of 10 mm², this terminal is crafted from high-quality Wemid (PA) material Its innovative design allows for direct installation and facilitates feed-through functionality Operating at IEC specifications of up to 500 V and 57 A, it also boasts UL ratings of 300 V and 65 A, accommodating wire sizes from 0.

5 mm² to 16 mm² This product is packaged conveniently in a box and fully adheres to RoHS standards, ensuring safety and compliance in your projects .

Features and Benefits:

•Screw connection for secure wiring.

•Contact material is made from copper alloy for durability.

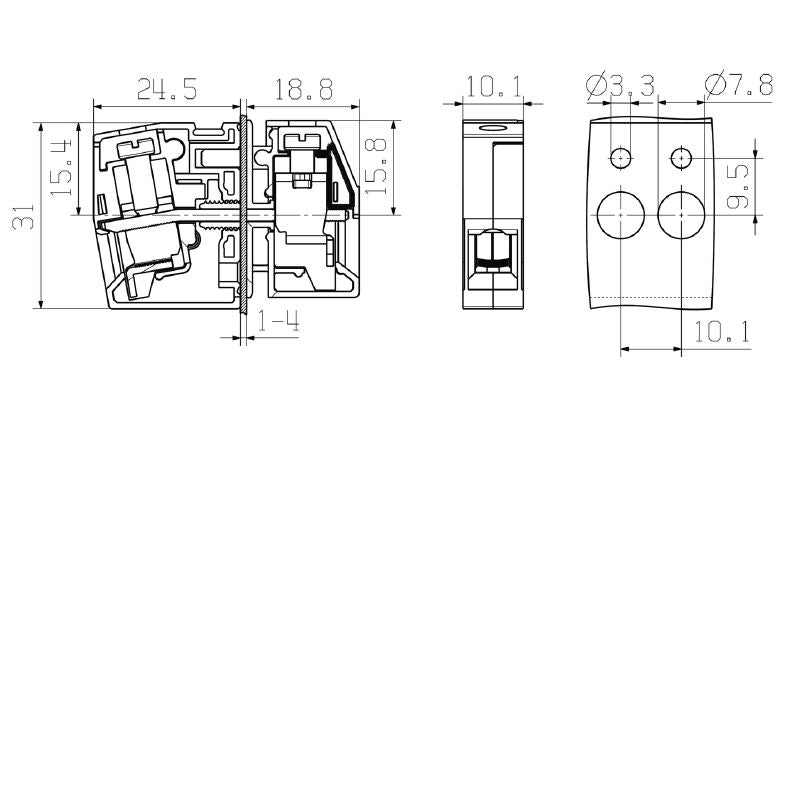

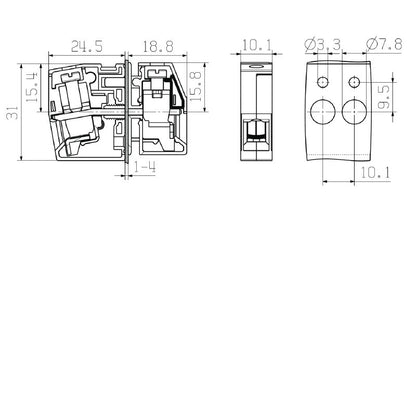

•Size is compact with a height of 31 mm and a width of 10.1 mm.

•IP 20 rating ensures protection against touch.

•Flammability is rated V-0 according to UL 94 standards.

Specifications:
