Description:

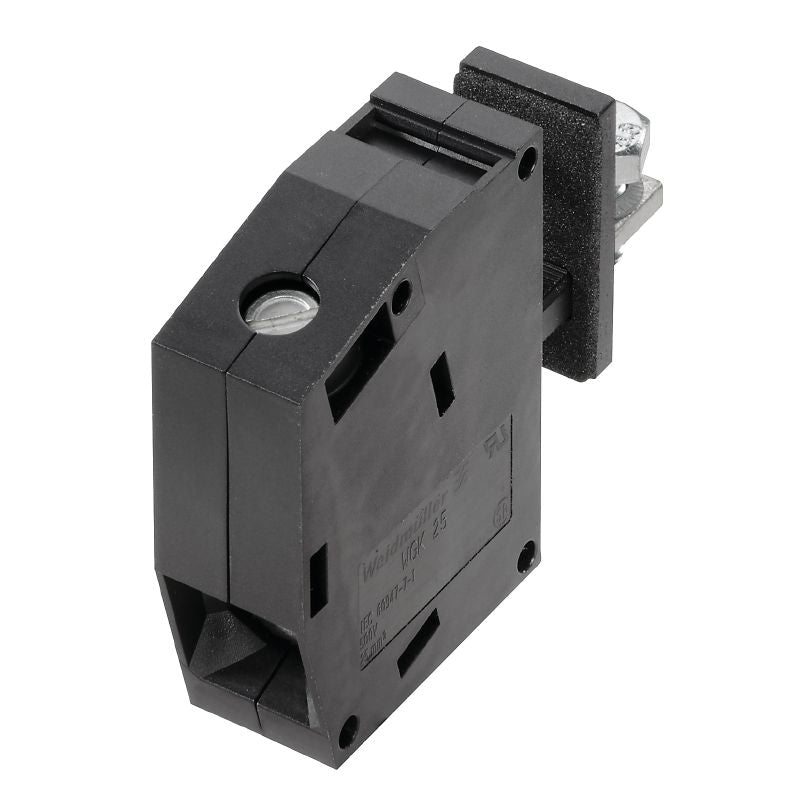

Introducing the WGK 25 VP/Z GN/YE BX feed-through terminal, expertly crafted for direct mounting applications With a robust rated cross-section of 25 mm² and constructed from durable Wemid (PA), this terminal accommodates various connection types, including ring cable and spade lug Boasting an IP20 protection rating, it guarantees safe operation against accidental contact Designed to meet both IEC and UL standards, it supports a rated voltage of 690 V and 600 V respectively, making it a versatile choice for diverse electrical uses.
Features and Benefits:
•Compliant with RoHS standards without exemption.
•Net weight of 47.96 g.
•IP20 rated for touch-safe protection.
•Temperature range for installation is from -25 °C to 120 °C.

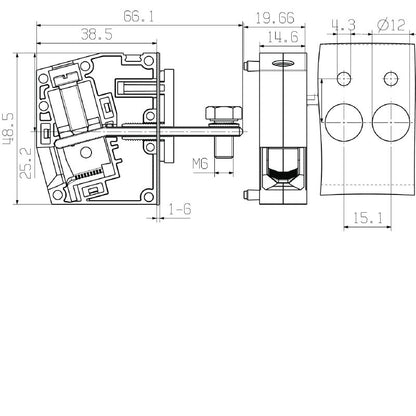

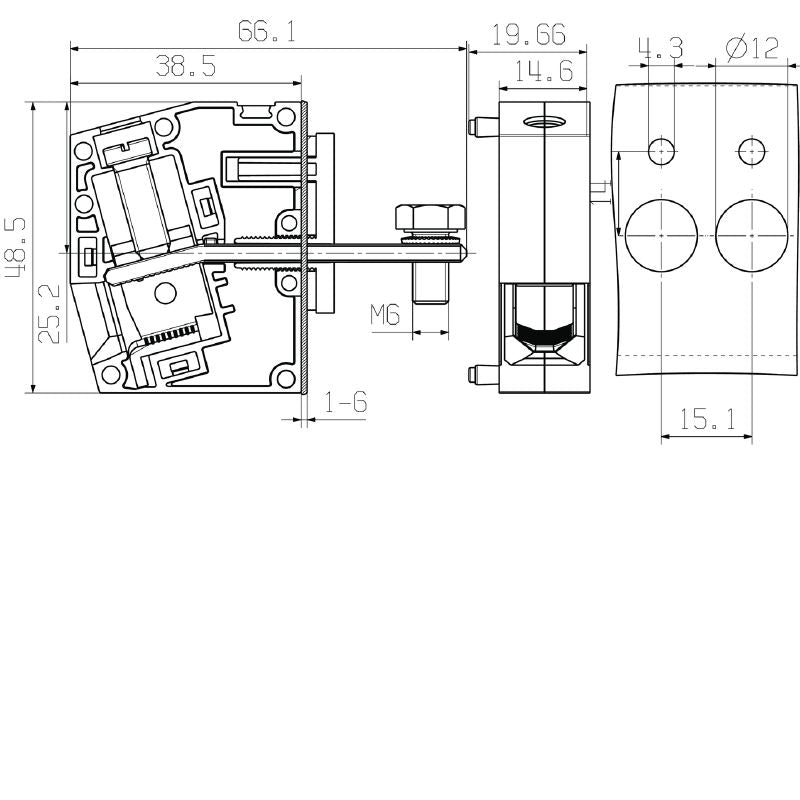

•Length of 19.66 mm and width of 19.7 mm.
•Operating temperature range from -50 °C to 120 °C.
•Suitable for multiple pole connections.
Specifications:
| Rated cross-section | 25 mm² |
| Approvals | cURus Certificate No. E60693 |
| Height | 48.5 mm |
| Voltage rating (IEC) | 690 V / 101 A / 6 - 35 mm² |
| UL voltage rating | 600 V / 100 A / AWG 10 - AWG 3 |
| Number of poles | 1 |
| Fitted by customer | Yes |
| Clamping screw | M 6 |
| Stripping length | 18 mm |
| Insulating material | Wemid (PA) |
| Contact material | Cu-alloy |
| Storage temperature (min) | -40 °C |
| Storage temperature (max) | 70 °C |
| Temperature range (installation) | -25 °C to 120 °C |
| Wire connection cross section (AWG) | min. AWG 10, max. AWG 3 |
