1936480000 - OMNIMATE 4mm² Feed-Through Terminal in Wemid Material (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

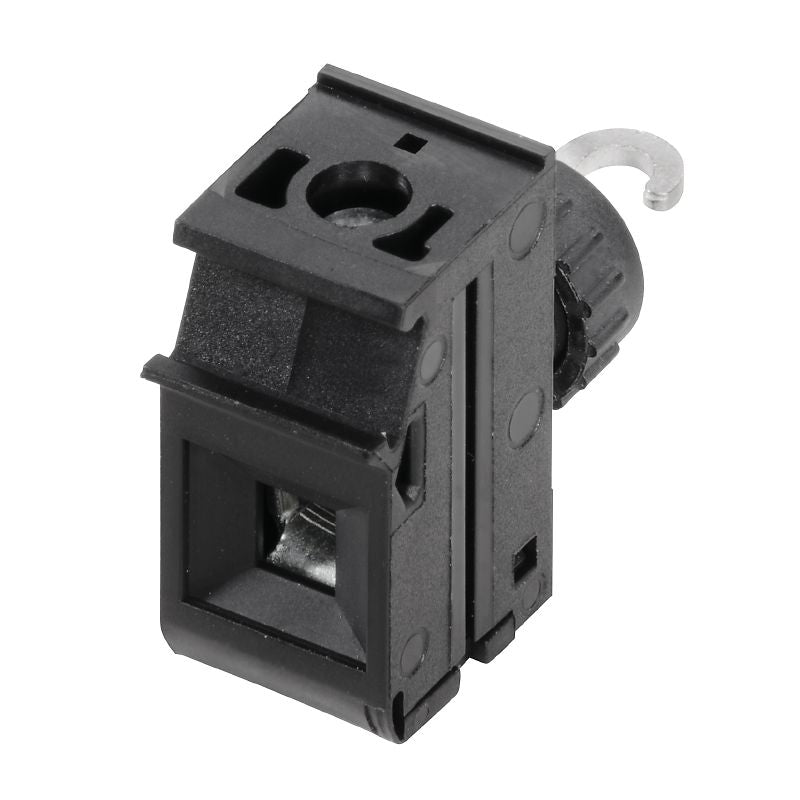

Introducing the VWGK 4 GN/YE BX feed-through terminal, expertly crafted for direct installation Made from robust Wemid (PA) material, it supports a rated cross-section of 4 mm² As part of the OMNIMATE Power series, this terminal meets RoHS standards and carries a UL file number E60693 Versatile in its applications, it accommodates various wire connection methods, including both screw and solder options, making it an excellent choice for your electrical projects.

Features and Benefits:

•Rated voltage: 500 V / Rated current: 32 A.

•Number of poles: 1.

•Touch-safe protection according to DIN VDE 0470.

•Insulating material: Wemid (PA).

•UL 94 flammability rating: V-0.

•RoHS compliant without exemption.

•Max storage temperature: 70 °C.

•Min operating temperature: -50 °C.

Specifications:
