2484680000 - OMNIMATE Feed-Through Terminal Rated for 500V, 6 mm² (Pack of 50)

SKU: SKU: 2484680000 Download PDF

Select a Variant:

2484680000 - OMNIMATE Feed-Through Terminal Rated for 500V, 6 mm² (Pack of 50)

SET THE QTY:

Now $211.34 Web pricing policy

~~BEFORE $0.00~~ Now $211.34 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

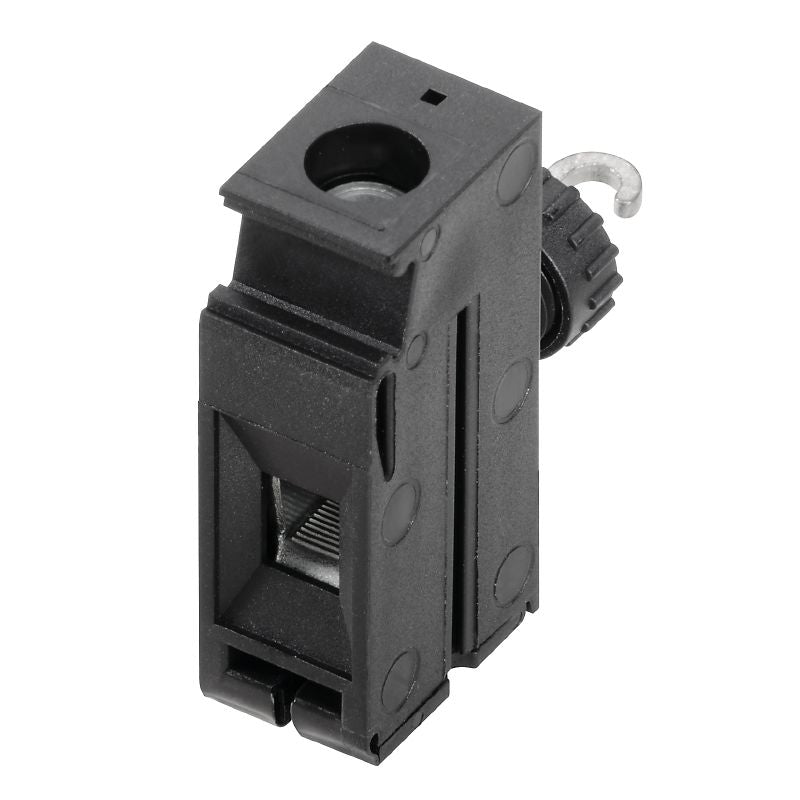

Introducing the VWGK 6 GN/YE BX, a reliable feed-through terminal from the OMNIMATE Power line This terminal offers direct mounting capabilities and accommodates wire sizes between 05 mm² and 10 mm² Adhering to IEC standards, it safely operates at voltage levels up to 500 V and handles currents up to 41 A It features both screw and solder connection options, crafted from durable Wemid material, making it well-suited for diverse electrical applications.

Features and Benefits:

•Provides a direct mounting solution.

•Compatible with screw and solder connections.

•Constructed from durable Wemid material.

•Compliant with RoHS standards.

•IP 20 rated for touch safety.

•Available in a green/yellow color.

Specifications:

Rated Voltage (IEC)	500 V
Rated Current (IEC)	41 A
Rated Voltage (UL)	300 V
Rated Current (UL)	50 A

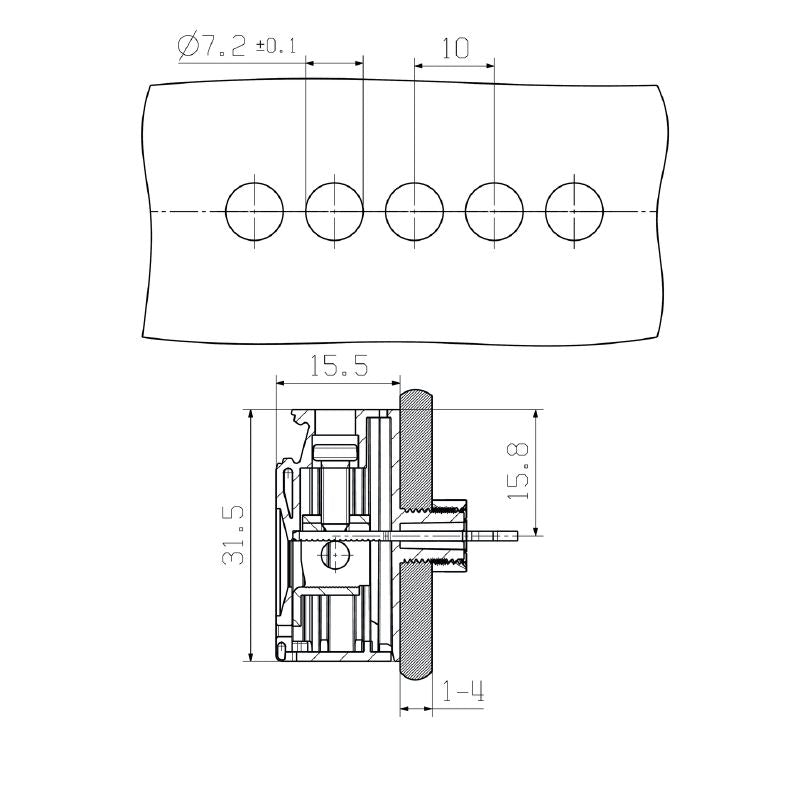

Height	31.5 mm
Width	10 mm
Length	10.7 mm
Tightening Torque (min)	0.8 Nm
Tightening Torque (max)	1.8 Nm
Insulating Material	Wemid (PA)
UL 94 Flammability Rating	V-0
Storage Temperature (min)	-40 °C
Storage Temperature (max)	70 °C
Operating Temperature (max)	120 °C
Clamping Range (min)	0.5 mm²
Clamping Range (max)	10 mm²
Number of Poles	1
Conductor Outlet Direction	180°
