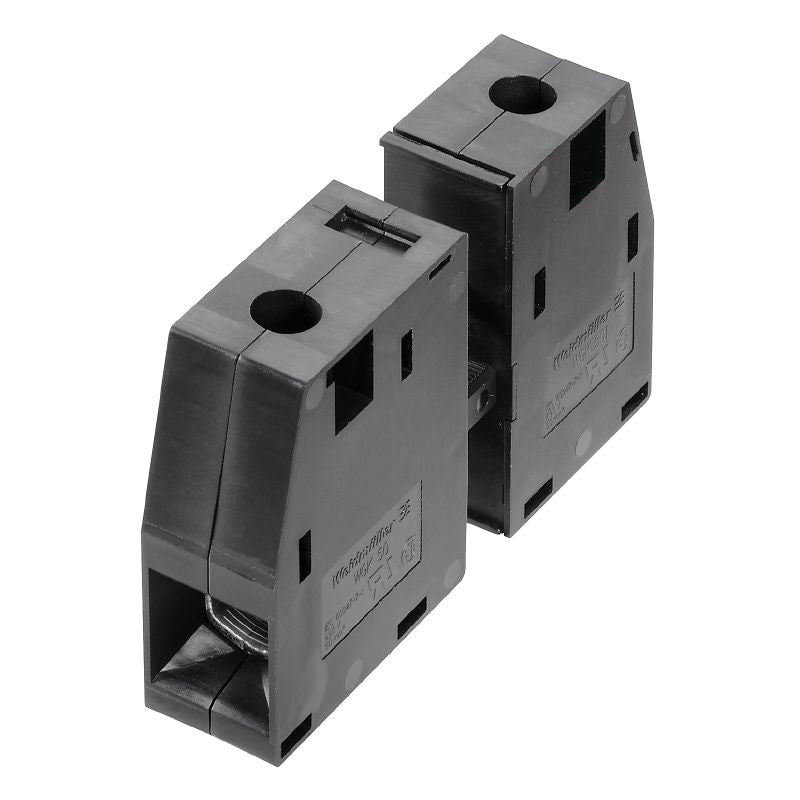

2427720000 - 50mm² Feed-Through Terminal Connector, UL Certified (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable connectivity with the OMNIMATE Power series WGK terminal connector, meticulously engineered for feed-through applications and capable of handling a rated cross-section of 50 mm² Crafted from durable Wemid (PA), this connector allows for direct mounting and complies with UL certification E60693 It is ideal for SC cable connections and features a secure screw mechanism to ensure optimal performance.

Compliant with RoHS standards, this connector is provided in a protective box for your convenience.

Features and Benefits:

•Rated voltage: IEC 690 V and UL 600 V.

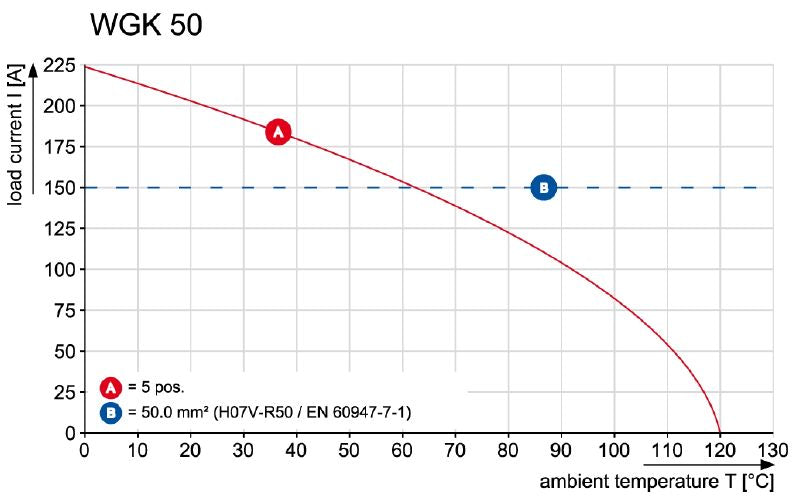

•Rated current: 150 A.

•One pole design for simple connectivity.

•Touch-safe protection rated IP20 according to DIN VDE 0470.

•Designed for a wide range of conductor sizes from 10 mm² to 50 mm².

Specifications:
