2484800000 - 6 mm² Feed-Through Terminal, 31.5mm Height, IEC/UL Compliant (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

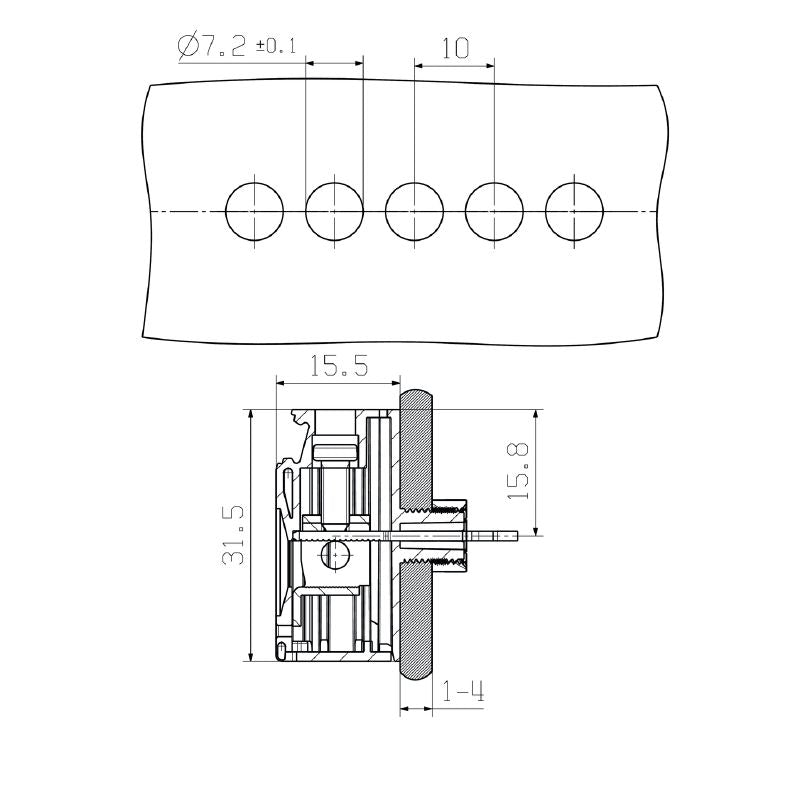

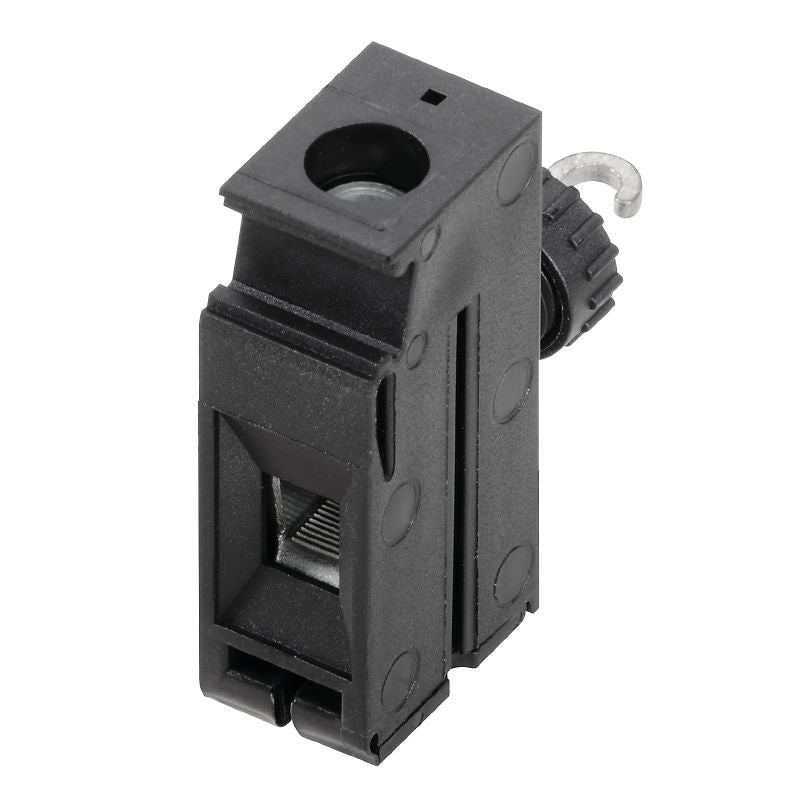

Introducing the VWGK 6 GY BX feed-through terminal, a reliable solution for direct mounting with an impressive rated cross-section of 6 mm² This terminal adheres to both IEC and UL standards, boasting a voltage capacity of 500 V and supporting a maximum current of 41 A per IEC guidelines In compliance with UL specifications, it operates at 300 V with a maximum current of 50 A Crafted from high-quality Wemid (PA) material, its compact design measures 31.

5 mm in height, 10 mm in width, and 107 mm in length Weighing just 71 g, this terminal offers efficiency without compromising on performance.

Features and Benefits:

•Compliant with RoHS regulations.

•Insulating material is made of Wemid (PA).

•Designed for screw/solder connectivity with a conductor outlet direction of 180°.

•Suitable for clamping range from 0.5 mm² to 10 mm².

•Touch-safe protection rated at IP 20.

•UL 94 flammability rating of V-0.

Specifications:
