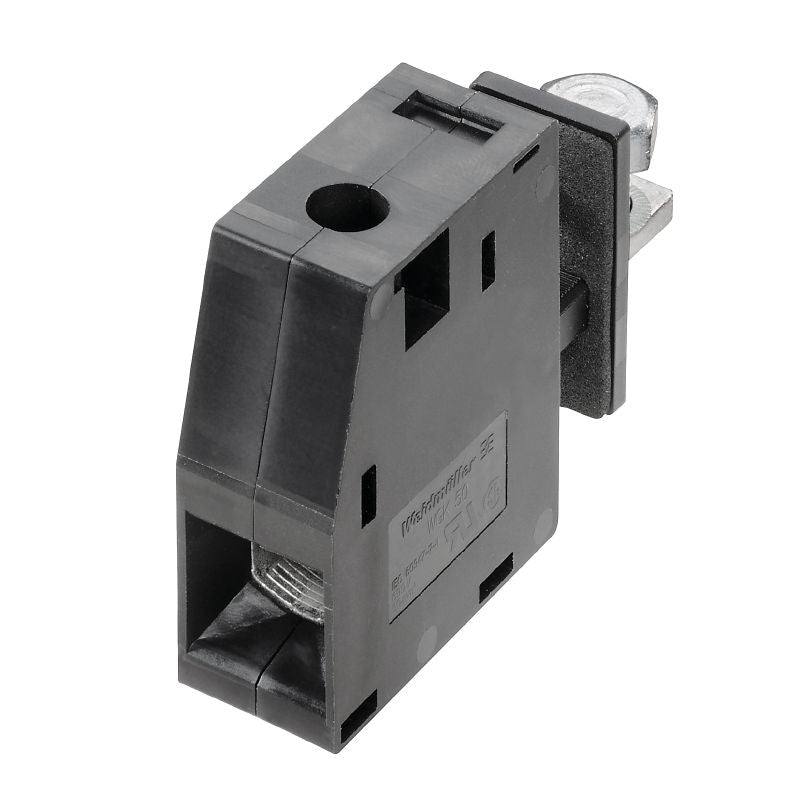

2585680000 - 50 mm² Feed-Through Terminal, RoHS Compliant (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable connectivity with the WGK 50 VP/Z BL BX feed-through terminal, part of the OMNIMATE Power series This terminal is crafted from high-quality Wemid (PA) material and has a rated cross-section of 50 mm² Its innovative feed-through bushing design allows for hassle-free direct mounting Additionally, it meets stringent compliance standards, including RoHS regulations, and holds a UL file number certified under cURus, recognized by certificate number E60693, ensuring safety and reliability for your applications.

Features and Benefits:

•Rated for IEC: 690 V / 150 A / 16 - 50 mm².

•UL rated for 600 V / 150 A / AWG 6 - AWG 1/0.

•Designed for use with ring cable or spade lug connections.

•Features touch-safe protection according to DIN VDE 0470 with an IP 20 rating.

•Built with a tightening torque range of 4 Nm to 5.5 Nm.

Specifications:
