Description:

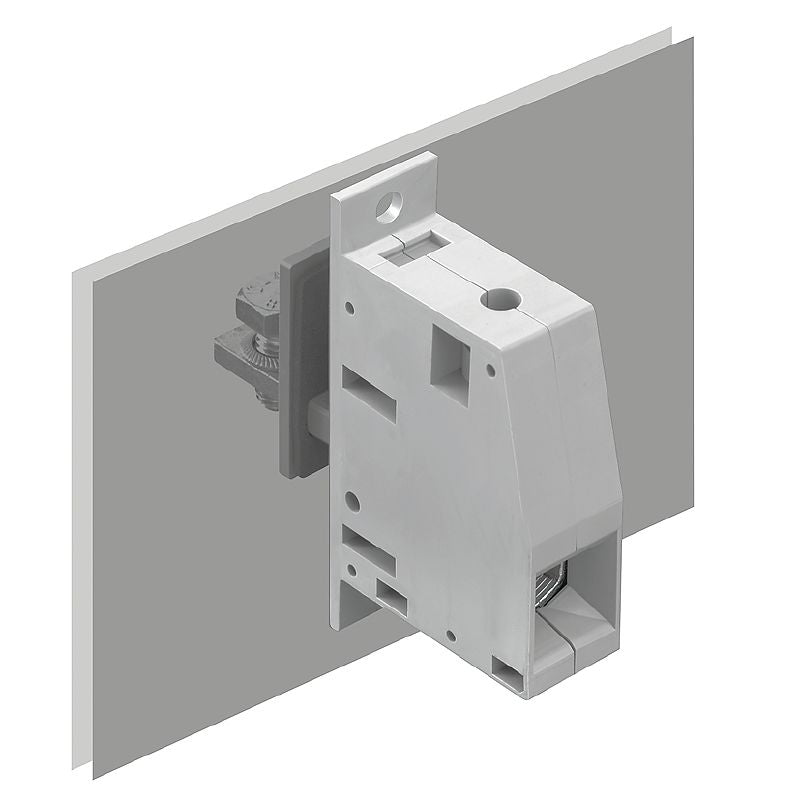

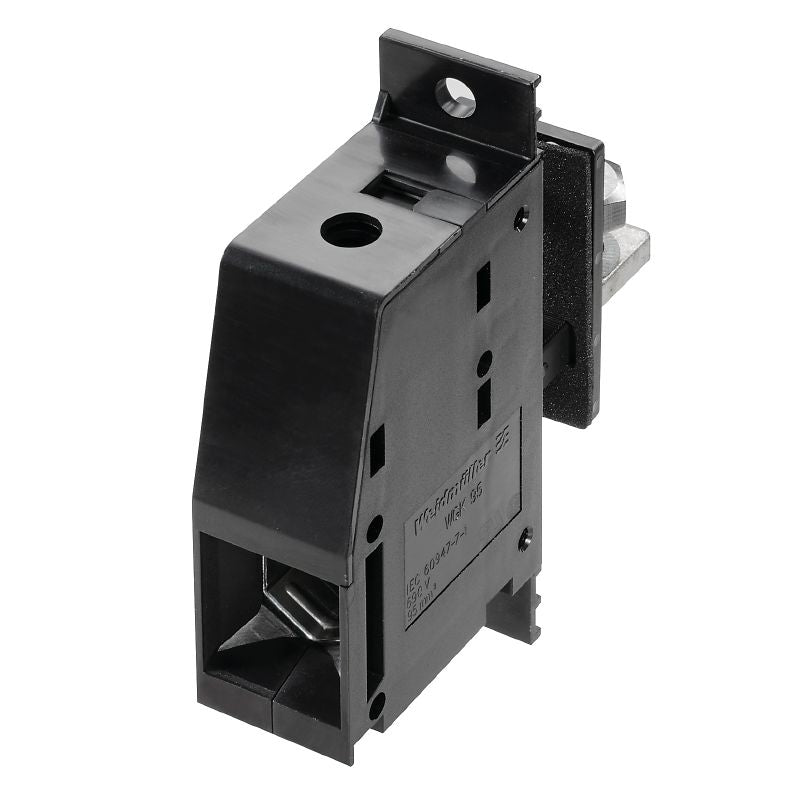

Introducing the WGK 95F VP GY BX feed-through terminal, expertly crafted for a rated cross-section capacity of 95 mm² This terminal features a reliable screw connection, simplifying the installation process Constructed from durable Wemid (PA) material, this component is elegantly finished in grey Designed for direct mounting, it serves a wide range of electrical applications, making it an essential choice for professionals in the field.
Features and Benefits:
•Compliant with RoHS directives.
•Conforms to various rating standards including IEC and UL.
•Single pole design with a conductor outlet direction of 180°.
•Utilizes cable lug connections, including ring and spade lugs.
•Includes touch-safe protection according to DIN VDE 0470.
Specifications:

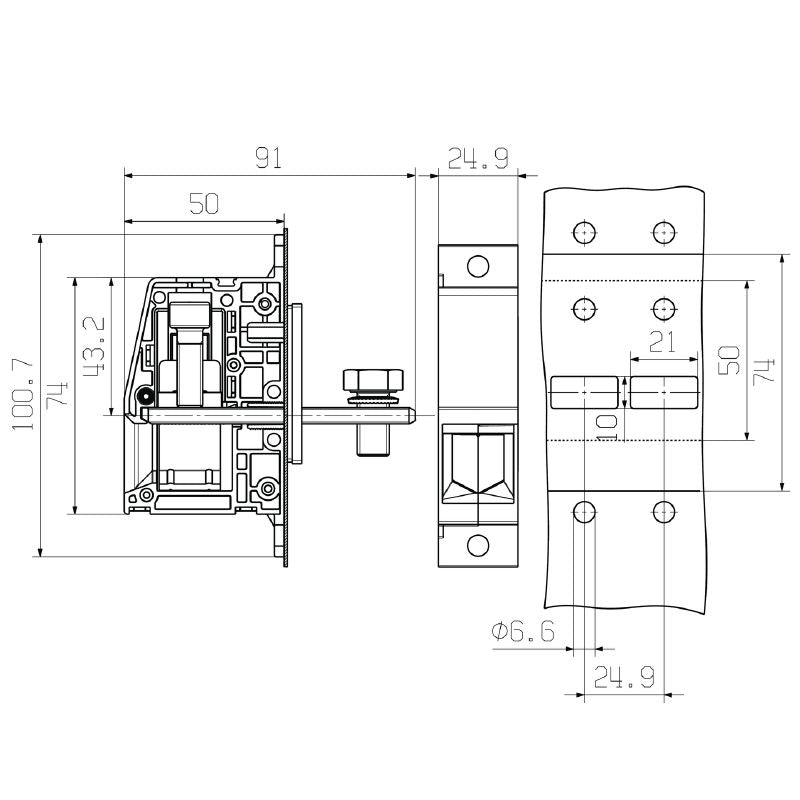

| Height | 74 mm |
| Width | 25 mm |
| Length | 27.4 mm |
| Net weight | 185.2 g |
| Rated voltage (IEC) | 1000 V |

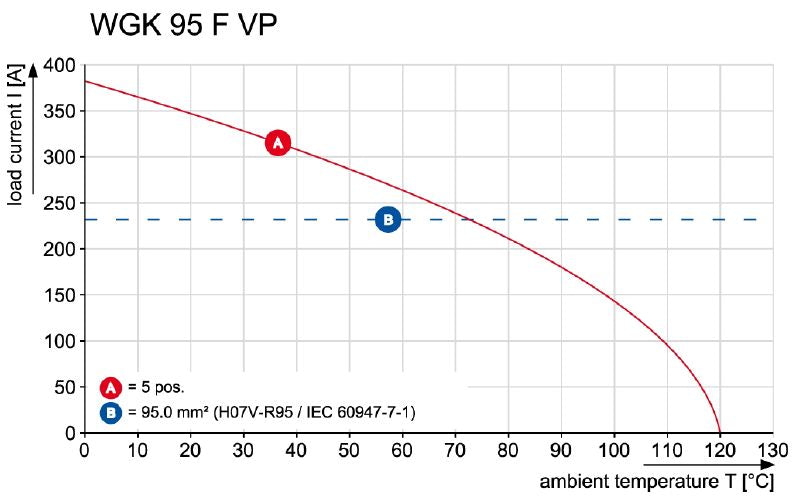

| Rated current (IEC) | 232 A |
| Rated cross-section | 35 - 95 mm² |
| Wire connection method | Cable lug: ring cable / spade lug |
| Number of poles | 1 |
| Tightening torque, min. | 15 Nm |
| Tightening torque, max. | 20 Nm |
| Material | Wemid (PA) |
| Insulation material | Wemid (PA) |
| Protection degree | IP20 |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 120 °C |
