Description:

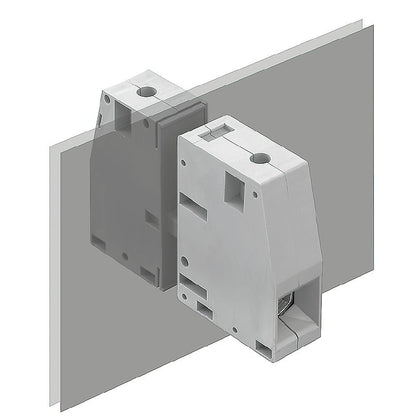

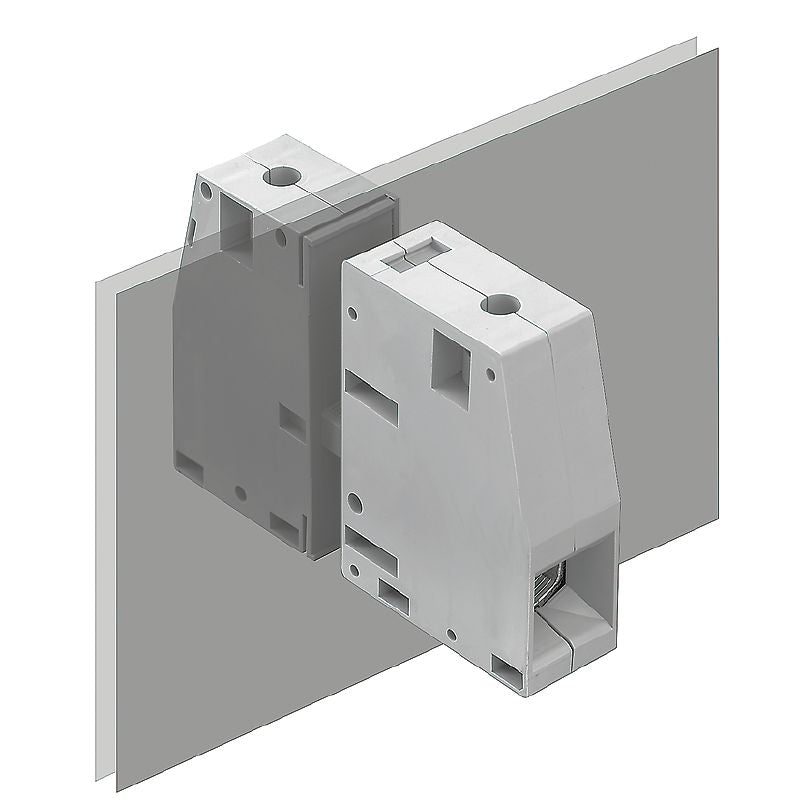

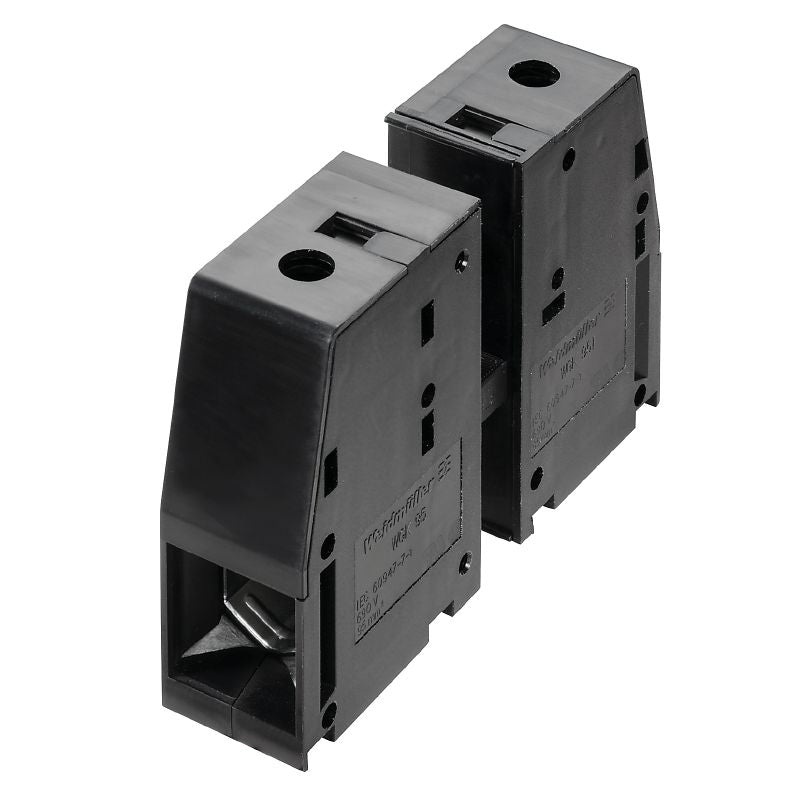

Introducing the WGK 95 GY BX, an exceptional feed-through terminal from the OMNIMATE Power series This terminal is crafted to support a rated cross-section of 95 mm² and features a secure screw connection Made from durable Wemid (PA) material, it is designed for easy direct mounting and includes a specialized feed-through bushing Compliant with RoHS standards and boasting a range of certifications, this terminal delivers both reliability and superior performance.
Features and Benefits:
•Screw connection method for reliable electrical contact.
•Compatible with conductor sizes from 35 mm² to 95 mm².
•IP20 protection grade ensuring adequate safety.
•Integrated tightening torque range of 15 to 20 Nm.
Specifications:
| Approval Certificates | E60693, 200039-1830694 |
| Rated Voltage | 1000 V / 600 V / 300 V |
| Rated Current | 232 A / 255 A / 10 A |

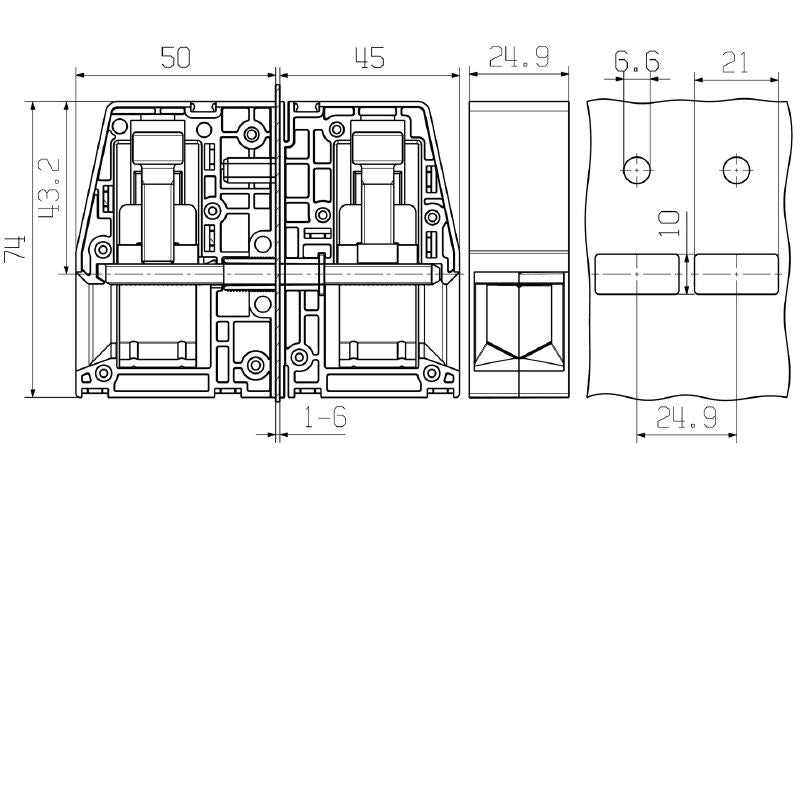

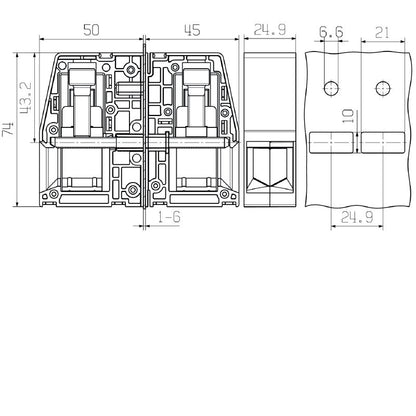

| Dimensional Specifications | {'Height': '74 mm', 'Width': '25 mm', 'Length': '24.9 mm'} |
| Temperature Ratings | {'Storage Temperature': '-40 °C to 70 °C', 'Operating Temperature': '-50 °C to 120 °C', 'Installation Temperature': '-25 °C to 120 °C'} |
| Material | Wemid (PA) |
| Contact Material | Cu-alloy |
| Flammability Rating | V-0 |
| Conductor Outlet Direction | 180° |
| Number of Poles | 1 |
