Description:

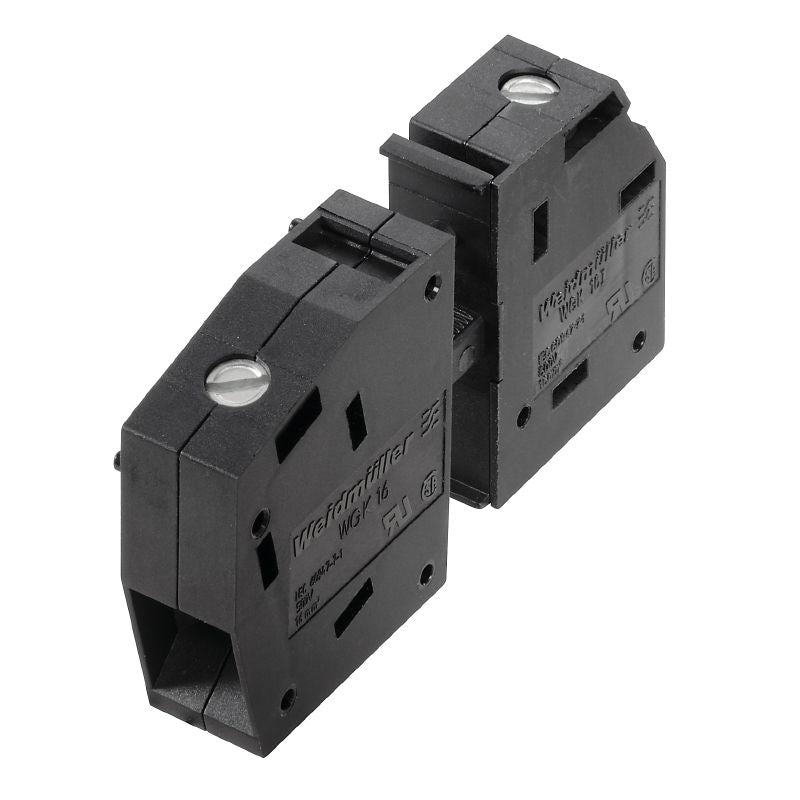

Introducing the WGK 16 GN/YE BX feed-through terminal, a reliable solution for direct mounting with a rated cross-section of 16 mm² Crafted from durable Wemid (PA) material, this terminal complies with RoHS regulations for safety and environmental standards With the order number 2439600000, it carries IEC approvals for voltages up to 500 V and currents of 76 A, as well as UL ratings of 600 V and 85 A.
Packaged in a compact box, this terminal is designed for efficient use, featuring a screw connection method for secure electrical connections It also offers a convenient 180° conductor outlet direction for added flexibility in installation.
Features and Benefits:
•Screw connection for easy installation.

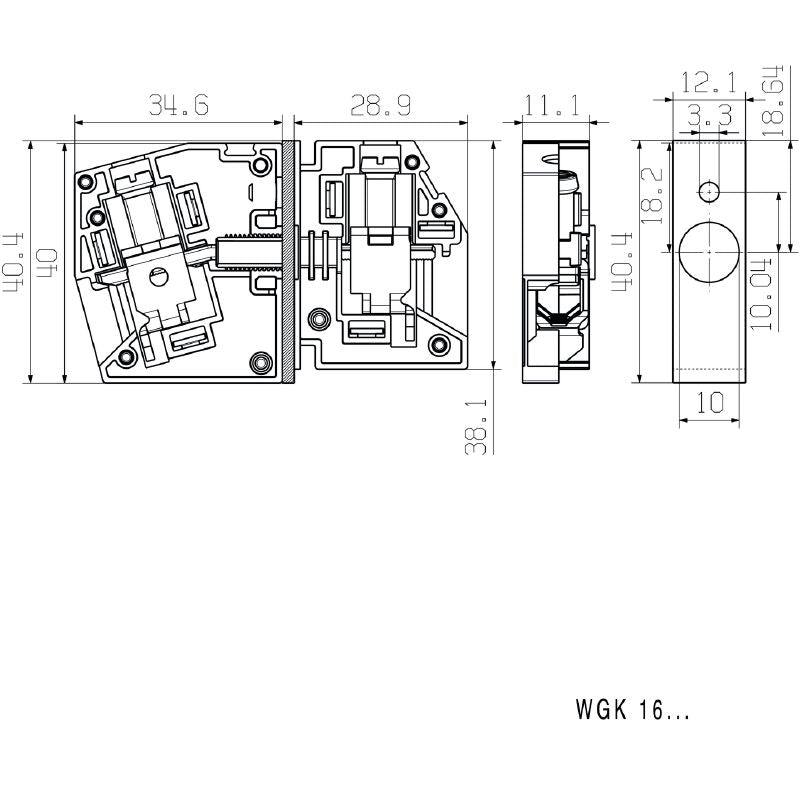

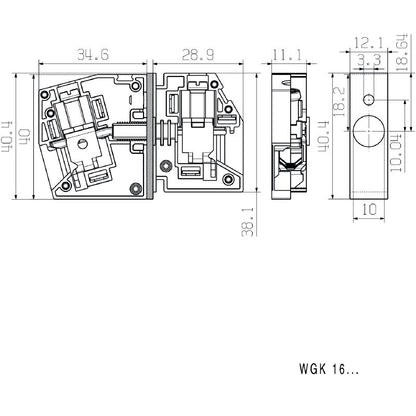

•Compact size with dimensions of 40.4 mm height, 12 mm width, and 12 mm length.
•Environmentally compliant with RoHS and free of SVHC.
•Touch-safe protection according to DIN VDE 0470 rated at IP 20.
Specifications:
| Rated voltage (IEC) | 500 V |
| Rated current (IEC) | 76 A |
| Rated voltage (UL) | 600 V |
| Rated current (UL) | 85 A |
| Height | 40.4 mm |
| Width | 12 mm |
| Length | 12 mm |
| Net weight | 29.709 g |
| Insulating material | Wemid (PA) |
| Color | Green/yellow |
| Number of poles | 1 |
| Tightening torque (min) | 2 Nm |
| Tightening torque (max) | 2.3 Nm |
| Operating temperature (min) | -50 °C |
| Operating temperature (max) | 120 °C |
| Storage temperature (min) | -40 °C |
| Storage temperature (max) | 70 °C |
| Wire connection cross section AWG (min) | AWG 20 |
| Wire connection cross section AWG (max) | AWG 4 |
| Protection degree | IP20 |
