2717110000 - 25 mm² Feed-Through Terminal for Direct Mounting (Pack of 15)

SKU: SKU: 2717110000 Download PDF

Variant:

2717110000 - 25 mm² Feed-Through Terminal for Direct Mounting (Pack of 15)

Now $384.85

~~BEFORE $0.00~~ Now $384.85

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

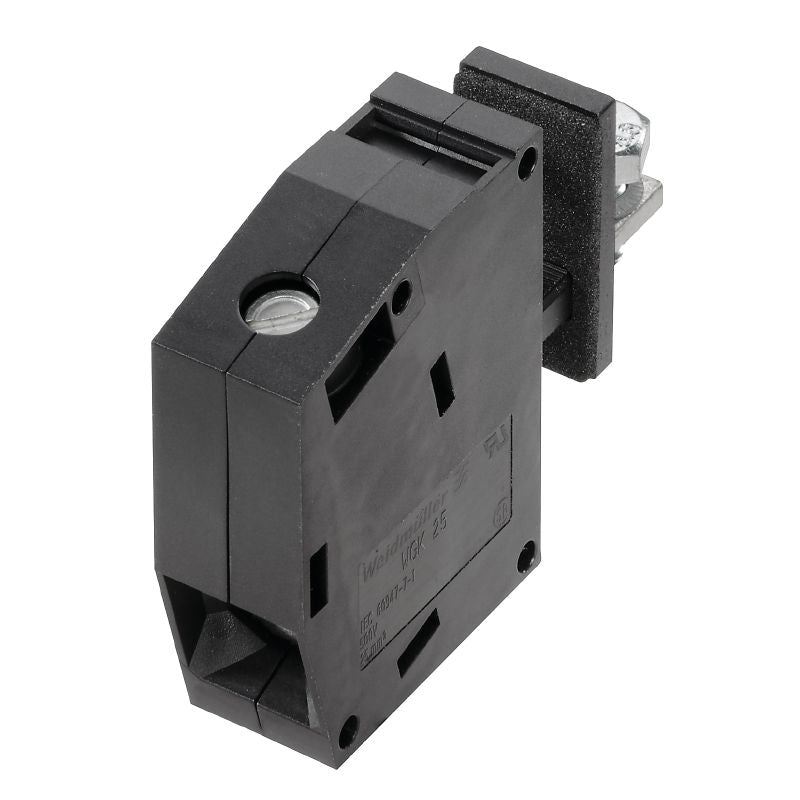

Introducing the WGK 25 VP IK3 BLOCK 3P BK BX, a versatile feed-through terminal from the OMNIMATE Power series This terminal features a rated cross-section of 25 mm² and is constructed from durable Wemid (PA) for direct mounting applications Compliant with IEC standards for voltages up to 690 V and currents up to 101 A, as well as UL ratings for 600 V and 100 A, this terminal provides reliable performance in various electrical setups.

Features and Benefits:

•Compliant with RoHS without exemption.

•Uses cable lug: ring cable / spade lug for wire connection.

•Touch-safe protection according to DIN VDE 0470.

•Color-coded black (RAL 9011).

Specifications:

Product family	OMNIMATE Power - series WGK
Rated cross-section	25 mm²
Number of poles	3

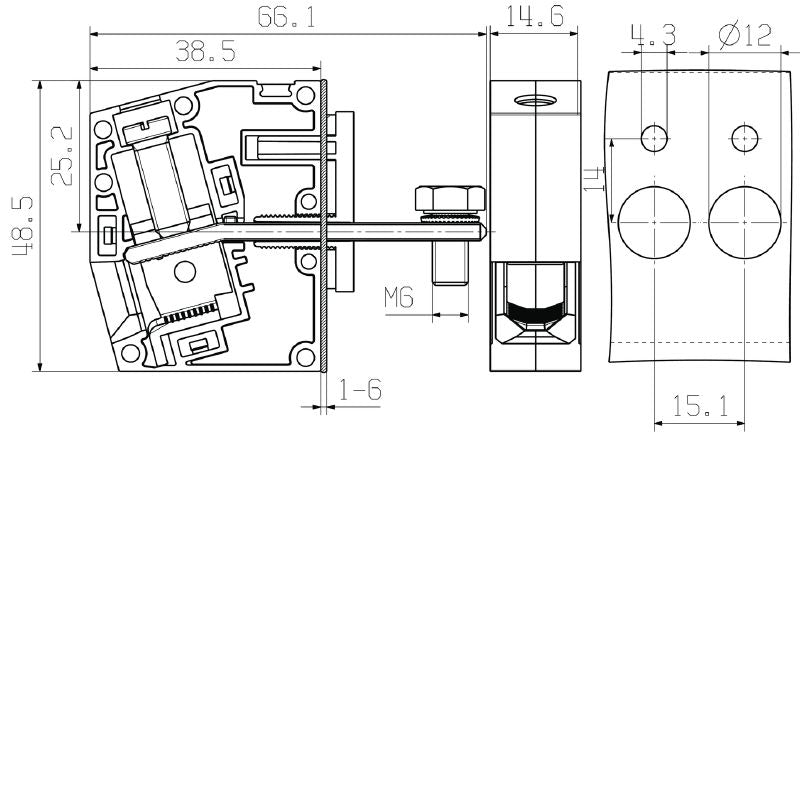

Dimensions	{'Height': '48.5 mm', 'Width': '45.3 mm', 'Length': '45.3 mm'}
Tightening torque	{'min': '4 Nm', 'max': '4.5 Nm'}
Protection degree	IP20
Insulating material	Wemid (PA)
UL 94 flammability rating	V-0
Storage temperature	{'min': '-40 °C', 'max': '70 °C'}
Operating temperature	{'min': '-50 °C', 'max': '120 °C'}
Clamping range	{'min': '4 mm²', 'max': '35 mm²'}
Rated voltage	{'IEC': '690 V', 'UL': '600 V'}

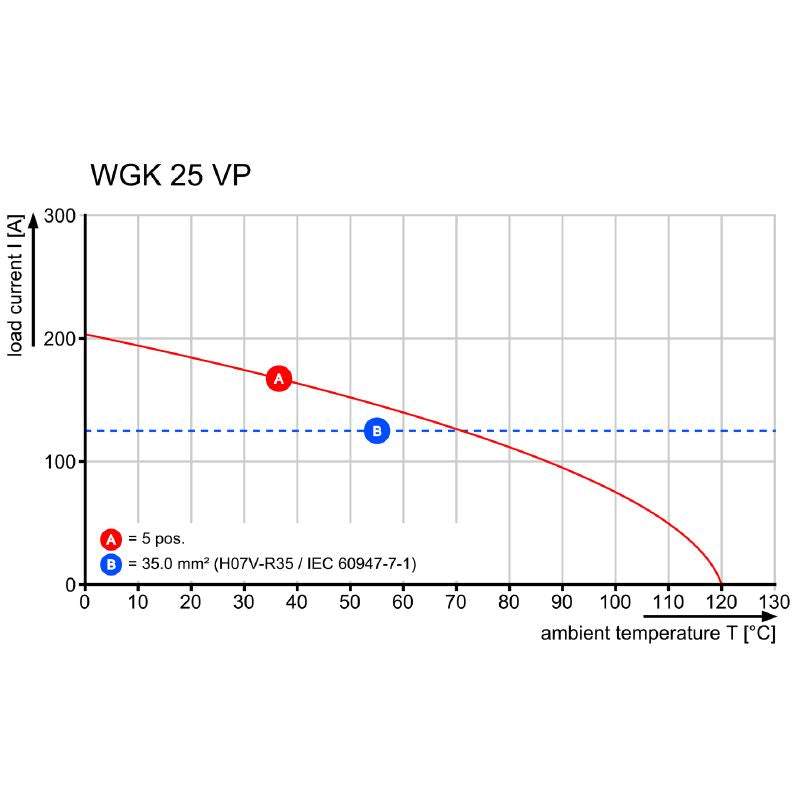

Rated current	{'IEC': '101 A', 'UL': '100 A'}
