2444830000 - 25mm² Feed-Through Terminal, 690V, Direct Mounting (Pack of 25)
2444830000 - 25mm² Feed-Through Terminal, 690V, Direct Mounting (Pack of 25)
SKU: SKU: 2444830000 Download PDF
- 2444830000 - 25mm² Feed-Through Terminal, 690V, Direct Mounting (Pack of 25)
- 2444830000 - 25mm² Feed-Through Terminal, 690V, Direct Mounting (Pack of 25)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

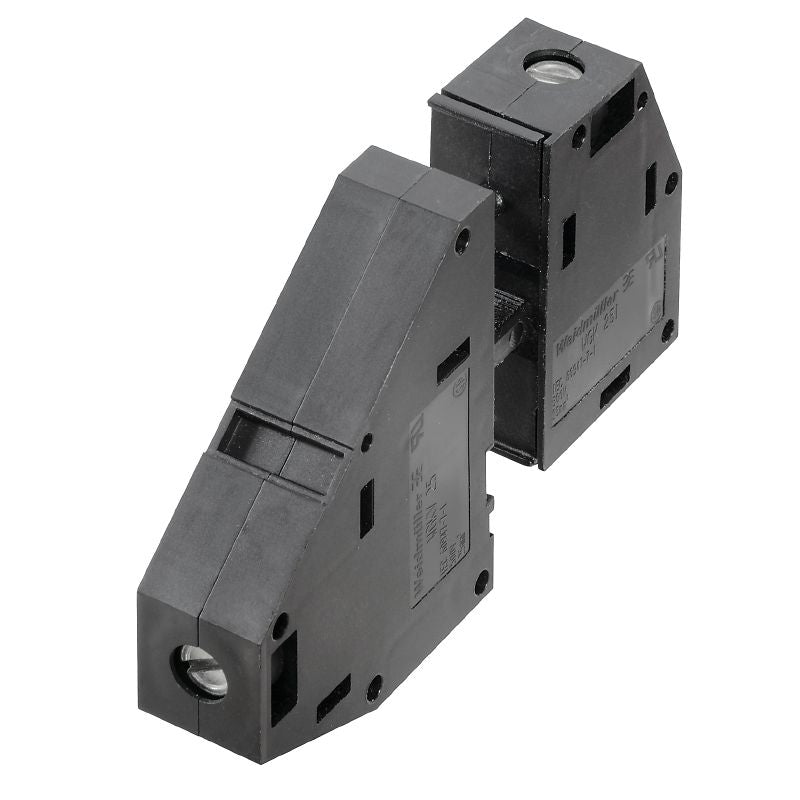

Discover the OMNIMATE Power series WGK Feed-through terminal, expertly crafted for direct mounting applications With a rated cross-section of 25 mm², this terminal is constructed from robust Wemid (PA) material It is designed to handle IEC voltages of up to 690 V and has a current rating of 101 A, accommodating wire sizes from 6 to 35 mm² Additionally, it meets UL standards with ratings of 600 V for 100 A, compatible with AWG wire sizes ranging from 10 to 3.
Each unit is neatly packaged in a specified-sized box for your convenience.
Features and Benefits:
•RoHS compliant without exemptions.
•Screw connection wire method.
•Can accommodate wire sizes from 4 mm² to 35 mm².
•Touch-safe protection according to IP 20.
•Material is Wemid (PA), with a UL 94 flammability rating of V-0.
•Clamping yoke type connections.
Specifications:

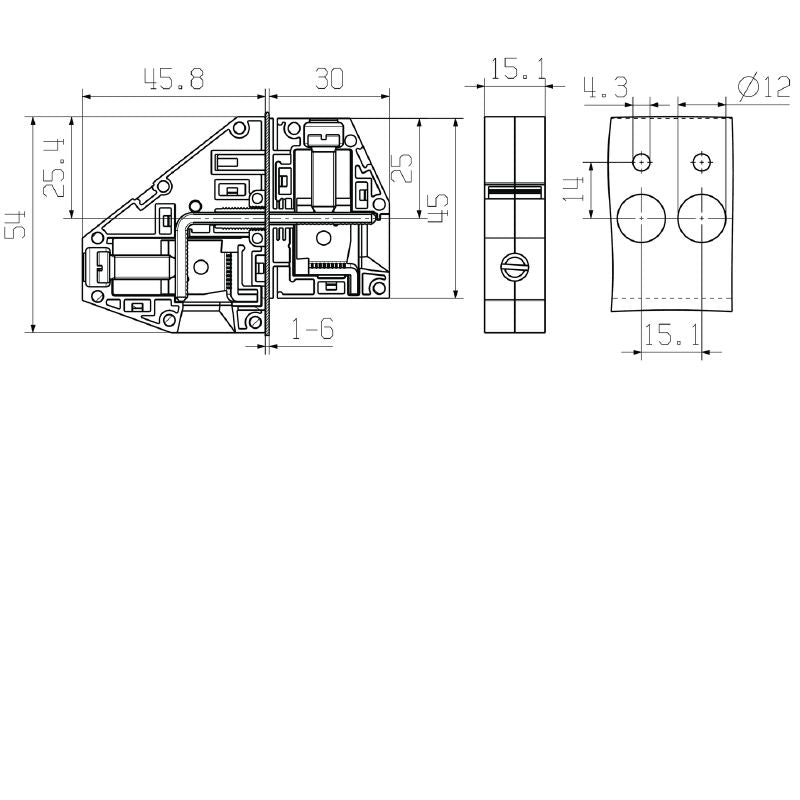

| Height | 54 mm |
| Width | 15.1 mm |
| Length | 15.1 mm |
| Net weight | 67.08 g |
| Number of poles | 1 |
| Rated voltage (IEC) | 690 V |

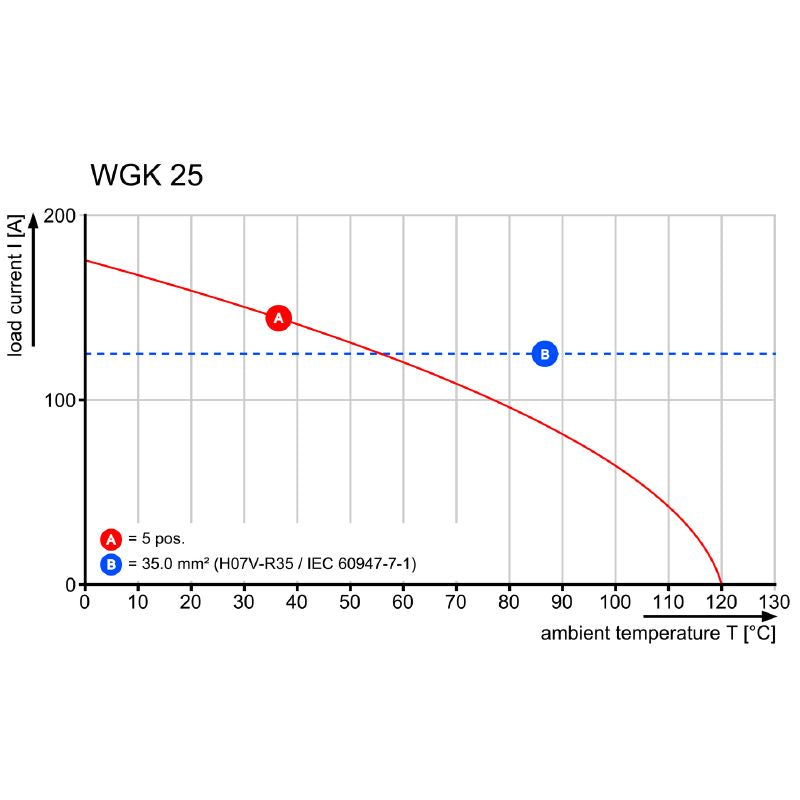

| Rated current (IEC) | 101 A |
| Rated voltage (UL) | 600 V |
| Rated current (UL) | 100 A |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 120 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| IP Protection degree | IP20 |
| Clamping torque, min. | 4 Nm |
| Clamping torque, max. | 4.5 Nm |
