Description:

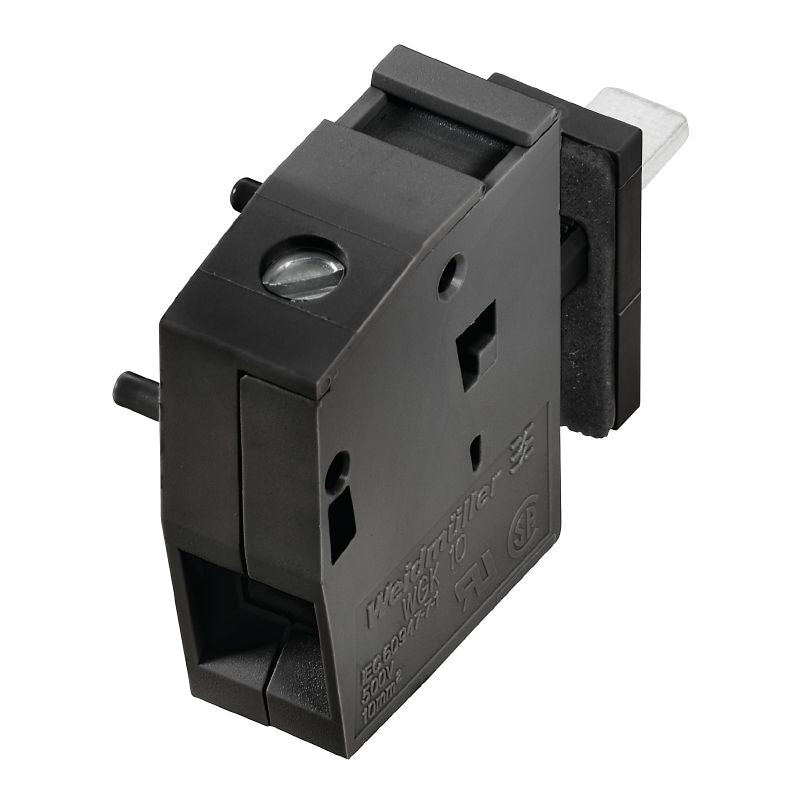

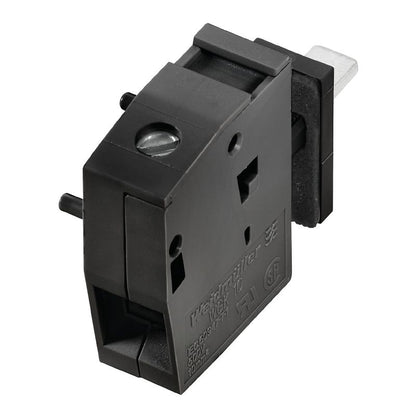

Introducing the WGK 10 VP BK BX, an efficient feed-through terminal from the renowned OMNIMATE Power series It boasts a rated cross-section of 10 mm² and is constructed from high-quality Wemid (PA) This terminal accommodates both screw and solder connection techniques, making it versatile for conductors ranging from 05 to 16 mm² With compact dimensions of 101 mm in height, length, and width, it’s designed for easy integration into your projects.
Additionally, this product meets RoHS standards and carries a UL certification number of E60693, ensuring reliability and compliance.
Features and Benefits:
•Screw and solder connection options.
•Compliant with RoHS standards.
•Wemid (PA) material allows for durable and safe connections.
•Suitable for various wire sizes.
•Compact dimensions make it ideal for tight spaces.
Specifications:

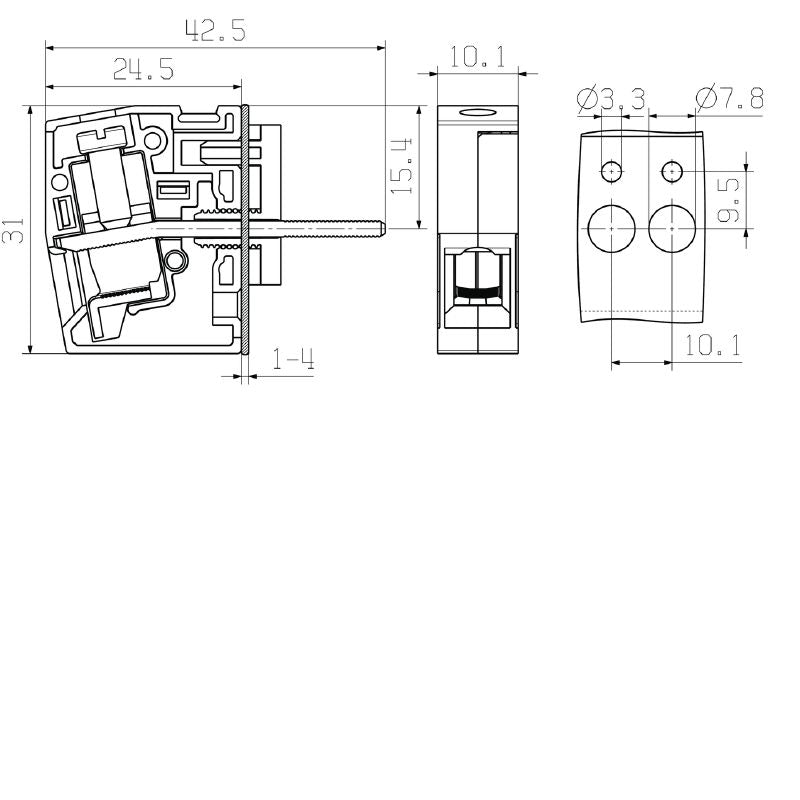

| Height | 31 mm |
| Width | 10.1 mm |
| Length | 10.1 mm |
| Net weight | 13 g |
| Rated voltage (IEC) | 500 V |

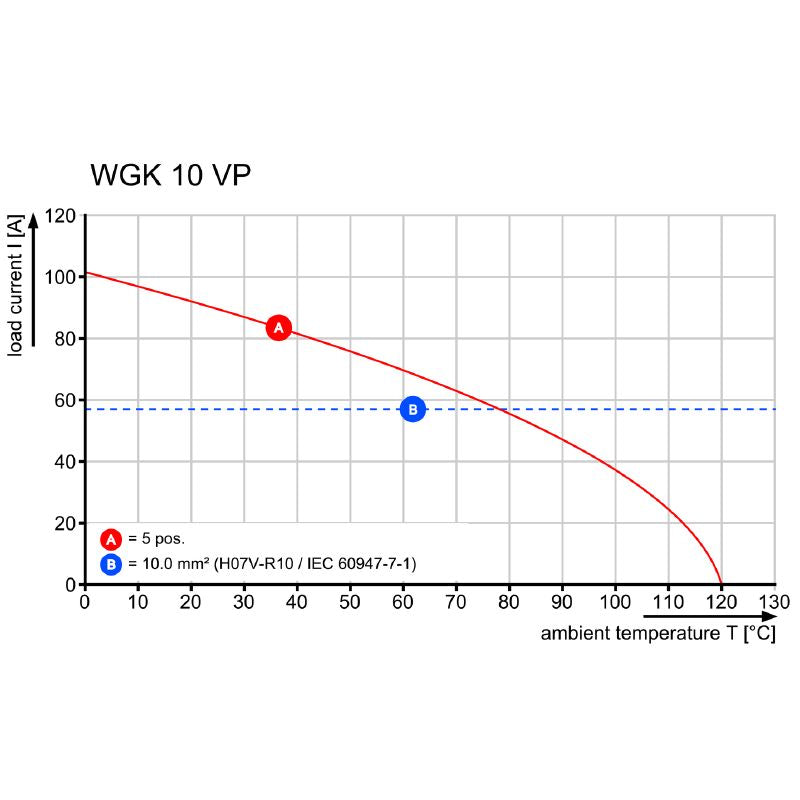

| Rated current (IEC) | 57 A |
| Rated voltage (UL) | 300 V |
| Rated current (UL) | 65 A |
| Protection degree | IP 20 |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 120 °C |
| Stripping length | 11 mm |
| Screwdriver blade size | 0.8 x 4.0 |
| Tightening torque, min. | 1.2 Nm |
| Tightening torque, max. | 2.4 Nm |
| Insulating material | Wemid (PA) |
