Description:

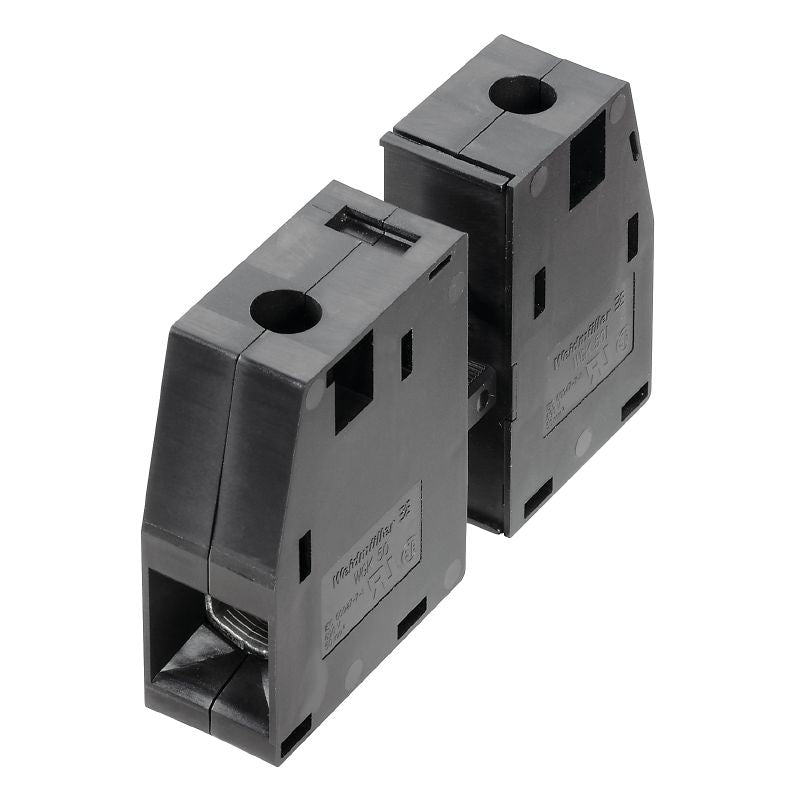

Discover the versatility of the OMNIMATE Power - series WGK feed-through terminal, engineered for direct installation and accommodating wire sections between 16 and 50 mm² With a voltage capacity of 690 V and a current rating of 150 A in line with IEC standards, it also adheres to UL requirements for a voltage of 600 V and current of 150 A for AWG wire sizes ranging from 6 to 1/0 This terminal features secure screw connections and consists of a single pin series.
Built with durability in mind, it boasts a protection degree of IP20 for safety assurance.
Features and Benefits:
•Screw connection method.
•Conductor outlet direction of 180°.
•Fitted by customer.
•Encased in a sturdy insulating material.
•Touch-safe protection according to DIN VDE 0470.
•Clamping yoke connections.
Specifications:

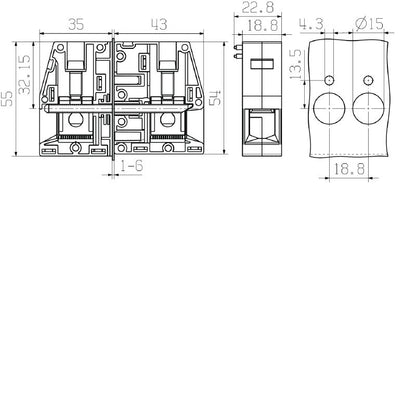

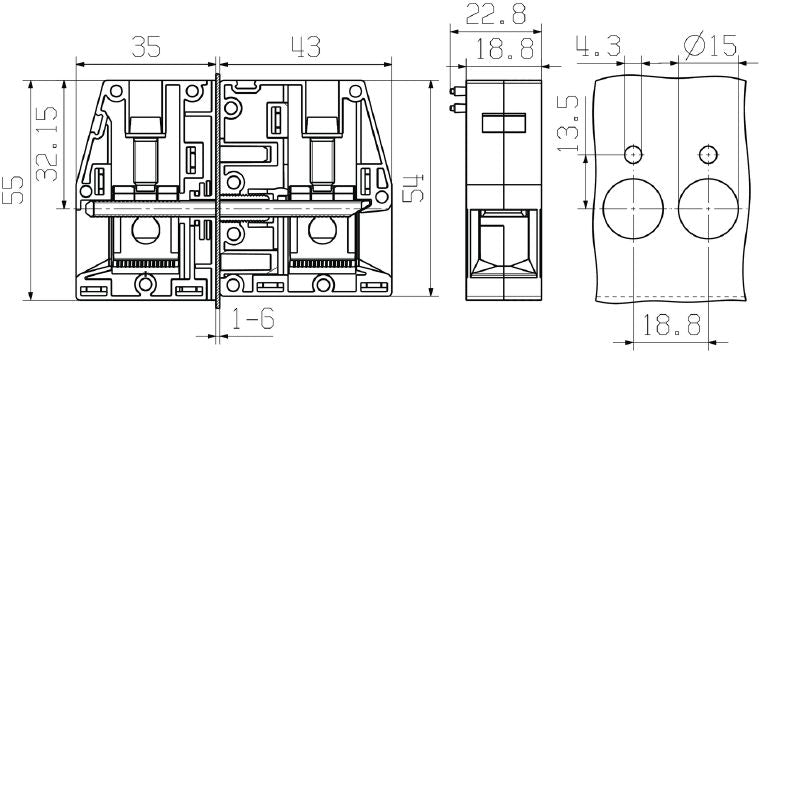

| Height: | 55 mm |
| Width: | 22.8 mm |
| Length: | 22.8 mm |
| Net weight: | 89.056 g |
| Rated voltage (IEC): | 690 V |

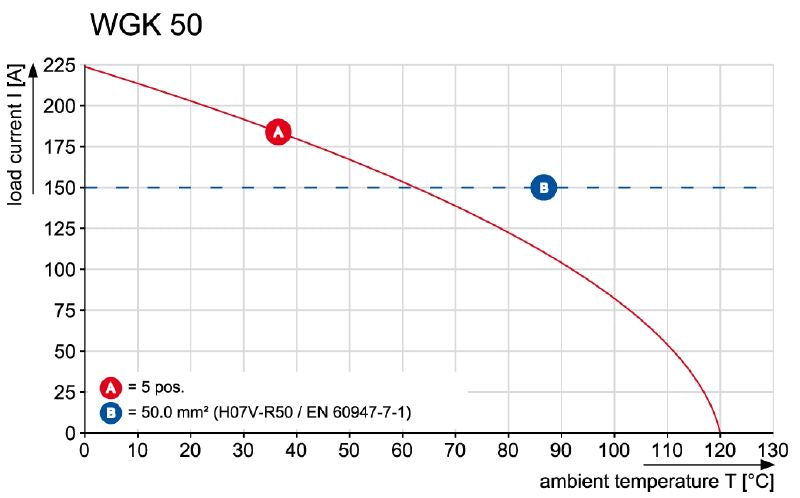

| Rated current (IEC): | 150 A |
| Rated voltage (UL): | 600 V |
| Rated current (UL): | 150 A |
| IP Protection Degree: | IP20 |
| Insulating material: | Wemid (PA) |
| Operating temperature, min: | -50 °C |
| Operating temperature, max: | 120 °C |
| Storage temperature, min: | -40 °C |
| Storage temperature, max: | 70 °C |
| Cross-section range, min: | 10 mm² |
| Cross-section range, max: | 50 mm² |
| Screwdriver blade: | 1.2 x 6.5 |
| Tightening torque, min: | 4 Nm |
| Tightening torque, max: | 5.5 Nm |
| Clamping screw: | M 6 |
