1003910000 - 4mm² Feed-Through Terminal, Grey PA, 500V Rated (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the reliability of the OMNIMATE Power series WGK feed-through terminal, expertly crafted for direct installation This terminal features a rated cross-section of 4 mm² with a secure screw connection, ensuring optimal performance Made from durable grey Wemid (PA) material, it meets RoHS regulations for safety and environmental compliance With a maximum rated voltage of 500 V, this terminal is versatile and suitable for a variety of wiring applications.

Features and Benefits:

•Screw/solder connection method.

•Compatible with conductor sizes between 0.5 mm² to 6 mm².

•Touch-safe protection in accordance with DIN VDE 0470.

•Accommodates tightening torques from 0.6 Nm to 0.8 Nm.

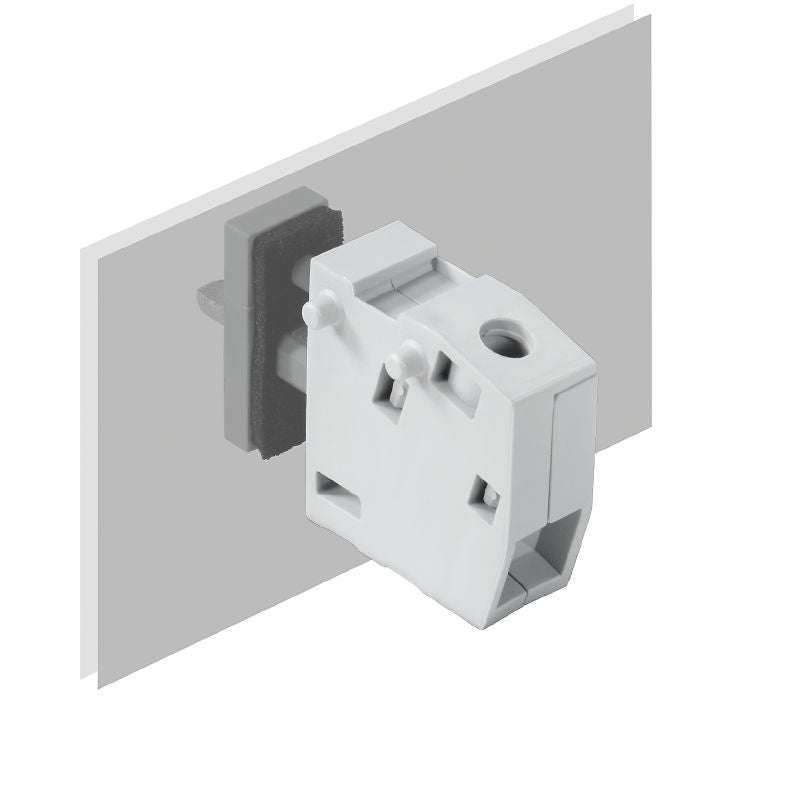

•Fitted by the customer for versatile installation.

Specifications:
