2444730000 - 25 mm² Feed-Through Terminal, RoHS Certified, 48.5 mm Height (Pack of 50)

SKU: SKU: 2444730000 Download PDF

Select a Variant:

2444730000 - 25 mm² Feed-Through Terminal, RoHS Certified, 48.5 mm Height (Pack of 50)

SET THE QTY:

Now $430.25 Web pricing policy

~~BEFORE $0.00~~ Now $430.25 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

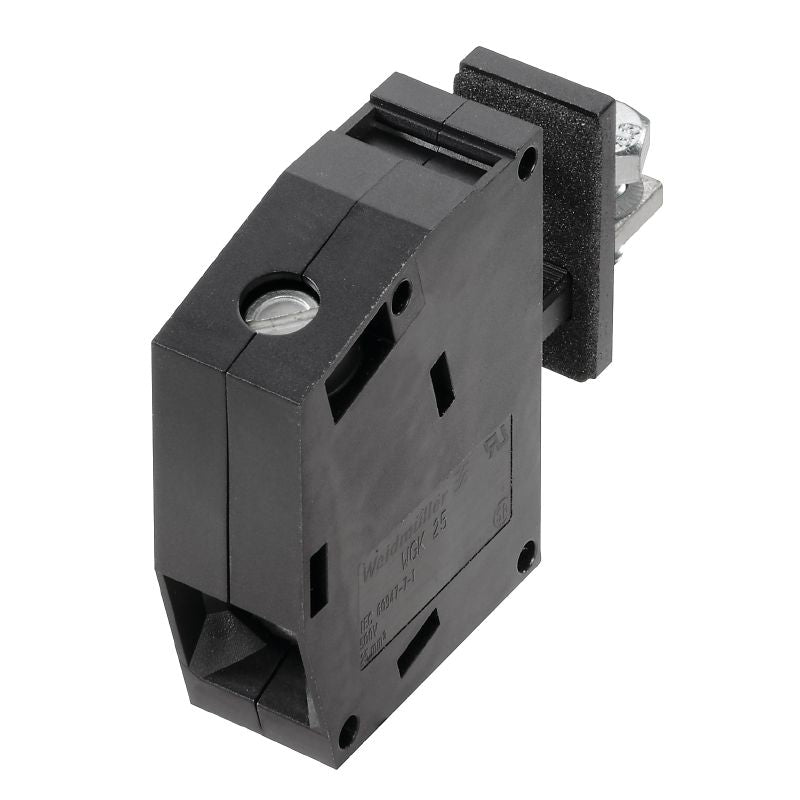

Discover the WGK 25 VP/Z GY BX feed-through terminal, expertly crafted for direct installation This terminal accommodates a rated cross-section of 25 mm² and is made from high-quality Wemid (PA) material Certified under RoHS regulations, it guarantees dependable connectivity for a variety of electrical purposes The terminal measures 485 mm in height, 197 mm in width, and 1966 mm in length, with a weight of approximately 42.

205 grams, making it a practical choice for your electrical projects.

Features and Benefits:

•Rated for IEC: 690 V / 101 A / 6 - 35 mm².

•UL rating: 600 V / 100 A / AWG 10 - AWG 3.

•IP 20 protection degree.

•180° conductor outlet direction.

•Clamping yoke connection type.

•Screw connection type.

Specifications:

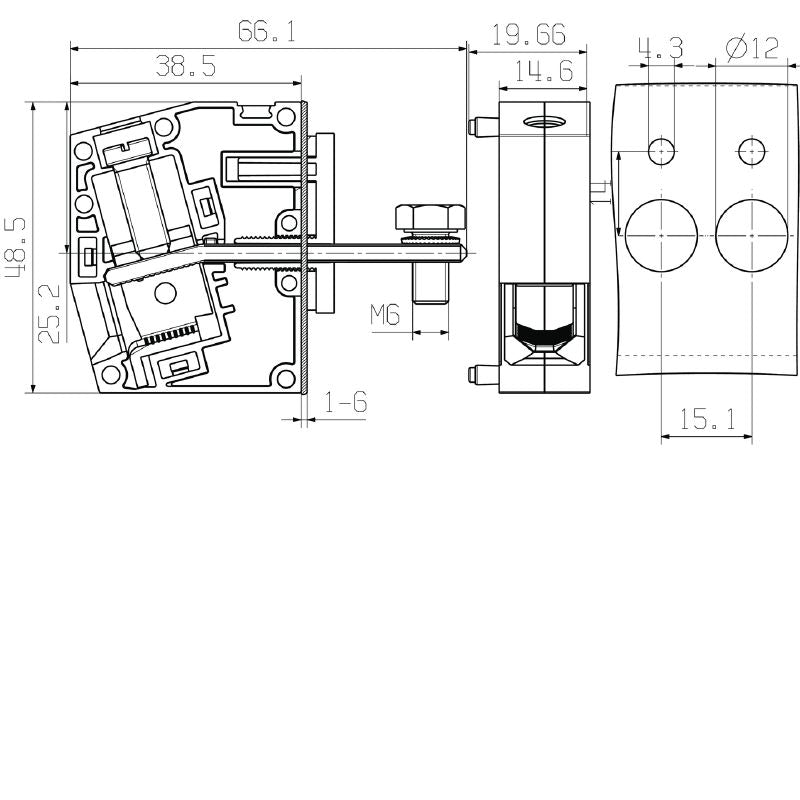

Height	48.5 mm
Width	19.7 mm
Length	19.66 mm
Net weight	42.205 g
Storage temperature (min)	-40 °C
Storage temperature (max)	70 °C
Operating temperature (min)	-50 °C
Operating temperature (max)	120 °C
Tightening torque (min)	4 Nm
Tightening torque (max)	4.5 Nm
Stripping length	18 mm
Wire connection cross section (min)	AWG 10
Wire connection cross section (max)	AWG 3
Insulating material	Wemid (PA)
Contact material	Cu-alloy
Contact surface	tinned
UL 94 flammability rating	V-0
