2619120000 - Compact Surge Voltage Arrester for Low Voltage Protection

2619120000 - Compact Surge Voltage Arrester for Low Voltage Protection

SKU: 2619120000 Download PDF

Variant:
  • 2619120000 - Compact Surge Voltage Arrester for Low Voltage Protection
Now $221.48
BEFORE   $0.00 Now $221.48
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

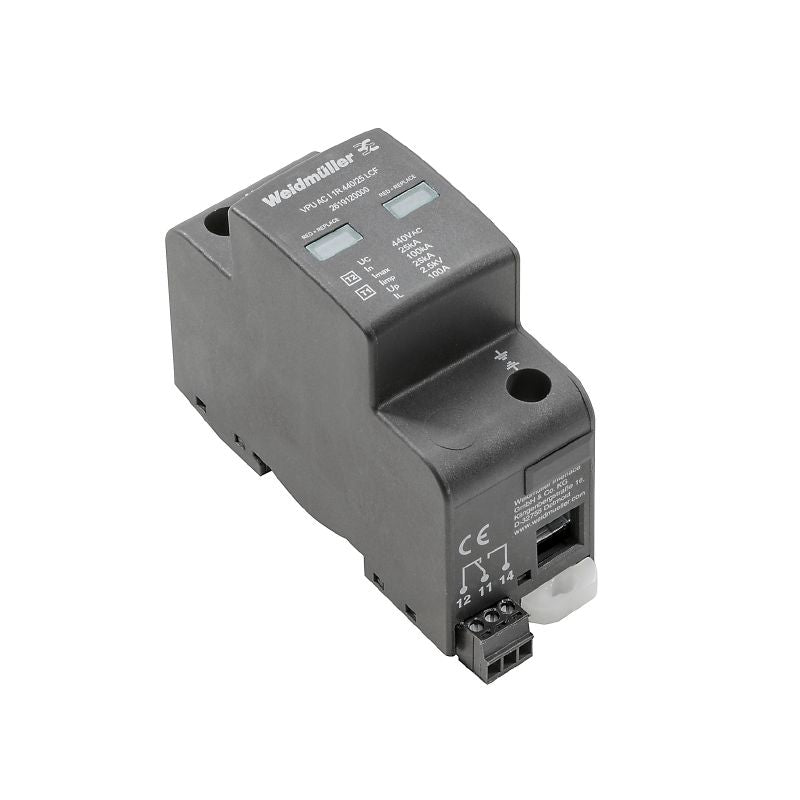

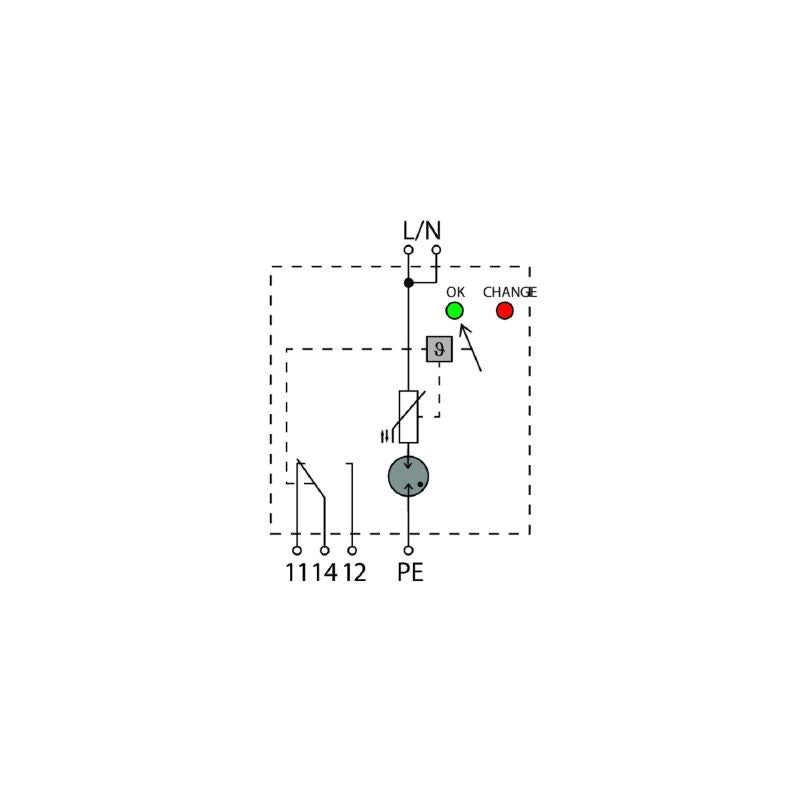

Introducing the VPU AC I 1 R 440/25 LCF, an effective single-phase surge voltage arrester tailored for low voltage surge protection With its remote contact feature, this device is perfect for power distribution needs It is compliant with RoHS standards and supports installations at elevations up to 2000 meters The compact design, crafted with a 2TE installation housing, allows for easy screw connections.

Additionally, it includes optical displays to clearly indicate its operational status, making it a reliable choice for safeguarding your electrical systems.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Suitable for count-in installation without leakage current.

    •Optical function display shows operational status.

    •Compact design fits standard mounting rails.

Specifications:

 Depth 93 mm
 Height 104.5 mm
 Width 36 mm
 Net weight 275 g
 Storage temperature -40 °C...85 °C
 Operating temperature -40 °C...85 °C
 Humidity 5 - 95% relative humidity
 Connection type Screw connection, pluggable
 Cross-section for connected wire, solid core, max. 1.5 mm²
 Cross-section for connected wire, solid core, min. 0.14 mm²
 Stripping length 8 mm
 Mains voltage 400 V / 690 V
 Max. continuous voltage, Uc (AC) 440 V
 Rated load current I_L 100 A
 Protection level U_p at I_N (L/N-PE) ≤ 2.5 kV
 Short-circuit current rating I_SCCR 50 kA
 Discharge current I_max (8/20µs) wire-PE 100 kA
 Discharge current I_n (8/20µs) wire-PE 25 kA
 Frequency range, max 60 Hz
 Frequency range, min 50 Hz
 Response time / fallback time ≤ 25 ns
 Protection degree IP20 in installed state
 Lightning test current I_imp (10/350 µs) (L-PE) 25 kA
 Probability of failure MTBF 15 a
