8951840000 - ATEX-Certified Base Unit for 4 Floating-Ground Cables

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

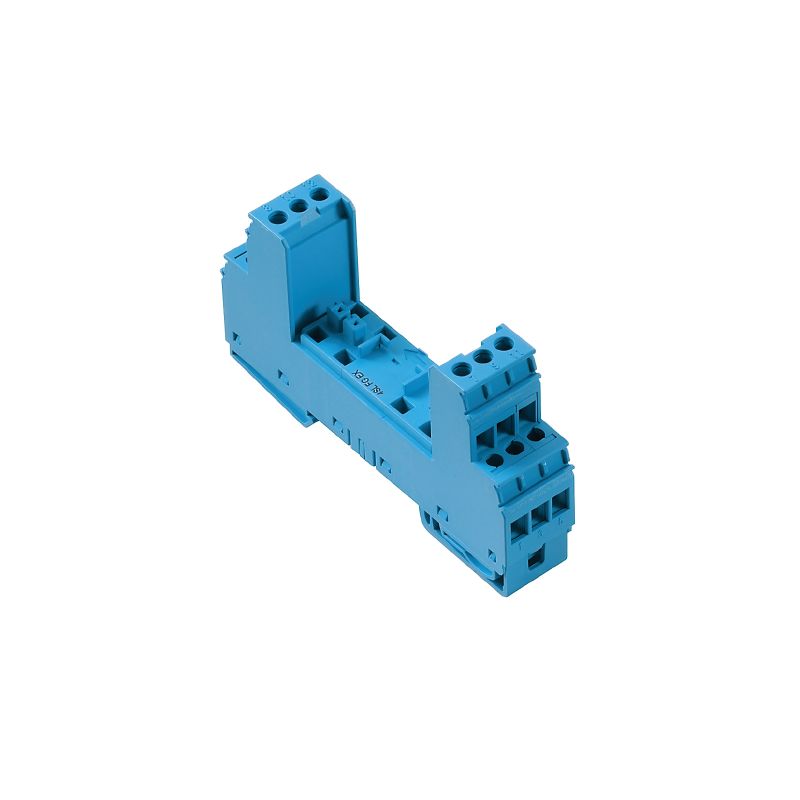

Introducing the VSPC BASE 4SL FG EX, a versatile base element specifically engineered to manage a protected plug accommodating up to four floating-ground powered paired cables This advanced unit creates a simultaneous sparkover gap between the mounting rail—serving as the grounding point—and the reference potential of the protective switch within the plug Complying with ATEX regulations, this base unit allows for mechanical coding that aligns with both switching type and rated voltage.

Upon the initial insertion of a protected plug, the base automatically self-codes, making setup seamless Furthermore, all terminals can easily be labeled for enhanced organization and clarity in your connections.

Features and Benefits:

•Designed for ATEX applications.

•Compatible with a protected plug for four floating-ground powered paired cables.

•Allows for mechanical coding of the base element.

Specifications:
