2755960000 - IP65 Surge Protector for Inverters with 2 MPPs, 1000V Safety

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

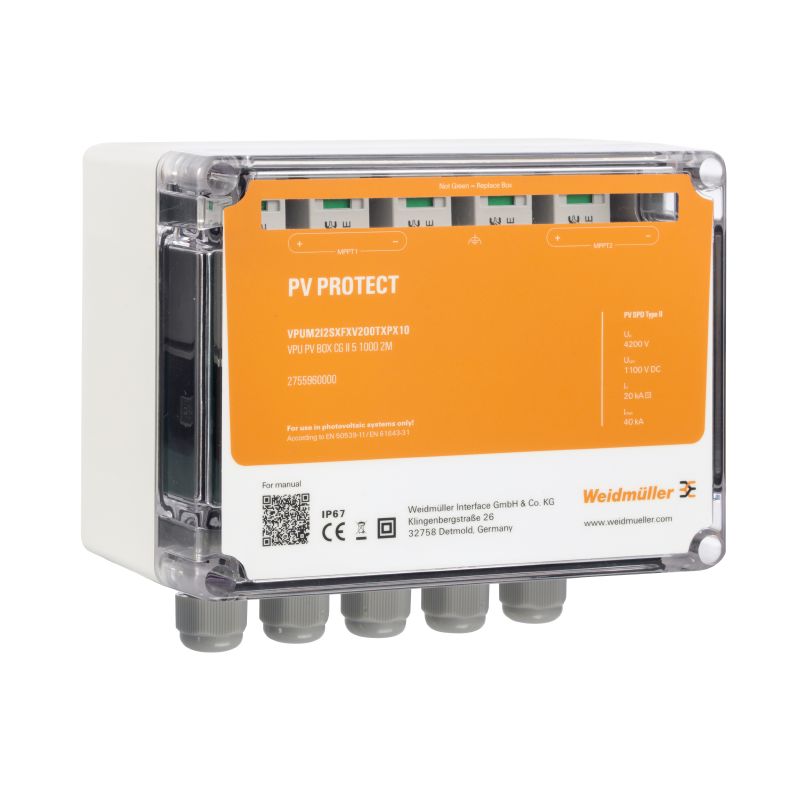

Ensure the safety of your inverter system with this advanced protective device designed specifically for the DC side This unit is equipped with dual maximum power points (MPP) and achieves optimal performance for a maximum string voltage of 1000 V Input connections are facilitated through cable glands, accommodating cable diameters between 4-8mm and a maximum cross-section of 16mm² Featuring type II surge protection, it effectively guards against overvoltage situations.

Please note that this device is intended for connection without a DC switch, and it comes with functional earth connections as well Enclosed in a robust plastic casing, this unit boasts IP65 and IP67 ratings, making it suitable for various environmental conditions.

Features and Benefits:

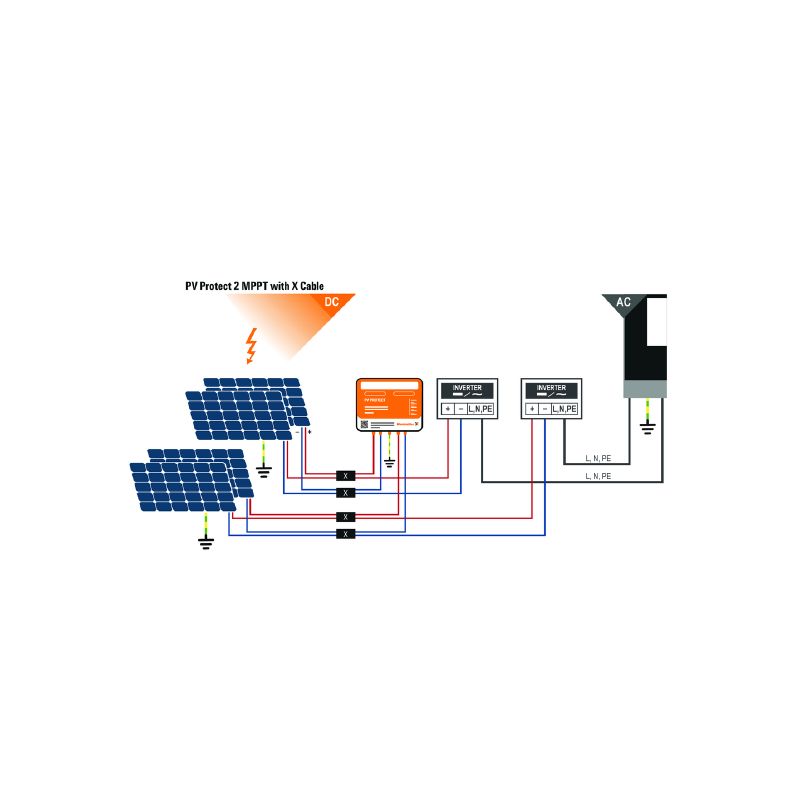

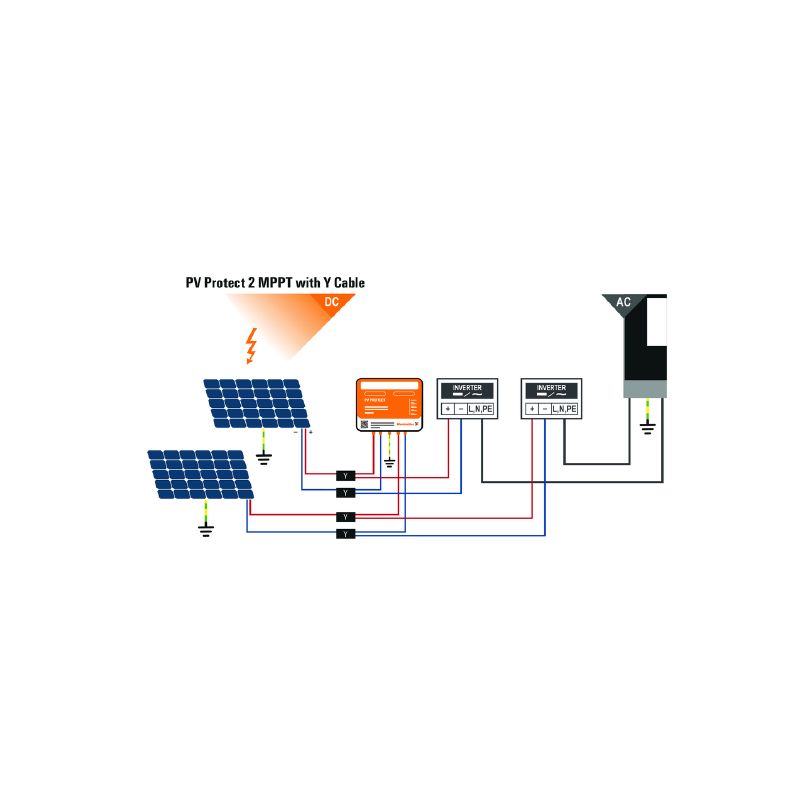

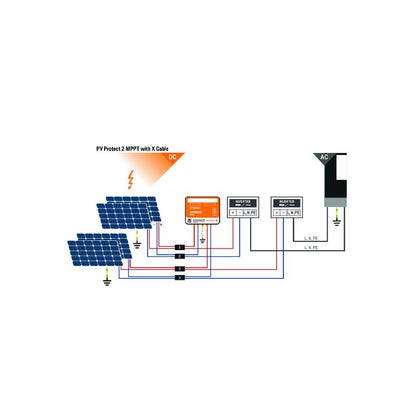

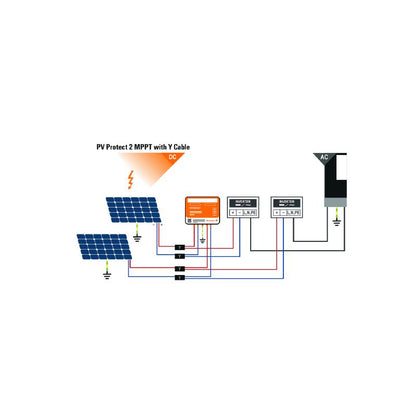

•Protects the DC side of inverters with two MPPs.

•Maximum continuous operating voltage of 1100 V.

•Compliant with RoHS and other standards.

•Enclosure offers high protection with an IP67 rating.

•Over voltage protection for solar inverters.

Specifications:
