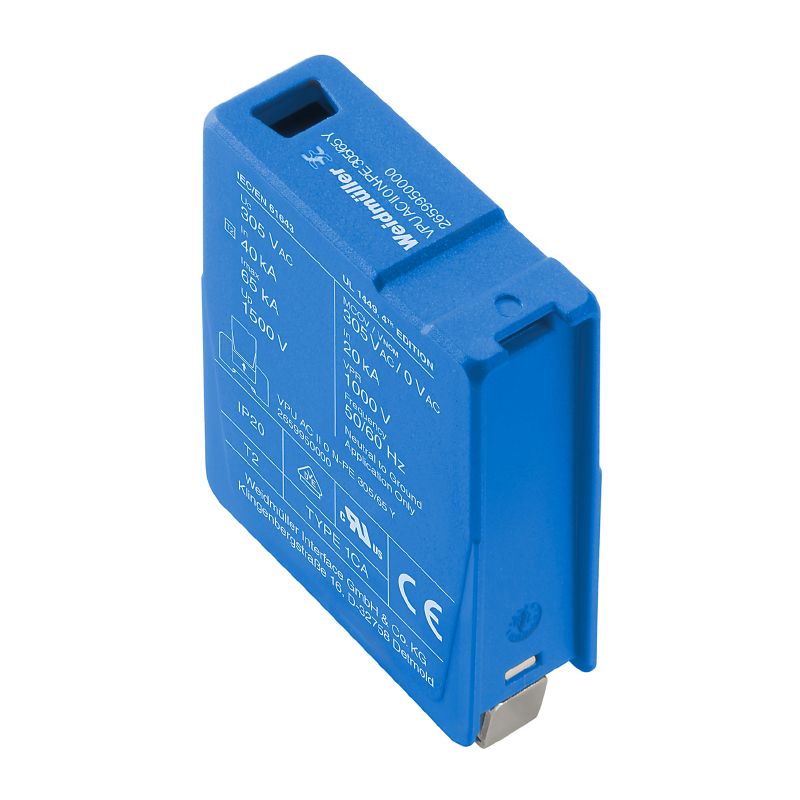

2659950000 - N-PE Surge Protector with -40°C to 85°C Range

2659950000 - N-PE Surge Protector with -40°C to 85°C Range

SKU: SKU: 2659950000 Download PDF

Variant:
  • 2659950000 - N-PE Surge Protector with -40°C to 85°C Range
Regular price Now $58.23
Regular price BEFORE   $0.00 Sale price Now $58.23
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure optimal surge protection with the VPU AC II 0 N-PE 305/65 Y device, engineered specifically for N-PE applications This spare arrester provides reliable voltage defense and comes with various approvals, including RoHS compliance, to meet stringent safety standards With an operational temperature range from -40°C to 85°C, it is well-suited for environments requiring robust electrical safeguarding, adhering to essential environmental regulations.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Optical function display indicating operational status.

    •Rated data includes maximum continuous voltage and rated voltage specifications.

    •Surge protection in power distributions.

Specifications:

 Depth 64 mm
 Height 45 mm
 Width 18 mm
 Storage temperature -40 °C to 85 °C
 Operating temperature -40 °C to 85 °C
 Rated Voltage U 240 V
 MCOV (N-PE) 305 V
 In 20 kA
 Protection degree IP20
 Number of poles 1
 Voltage type AC
 Response time ≤ 100 ns
 SCCR 0.1 kA
