8924450000 - Surge Protection Device for Control Systems, Under 800V Capacity

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

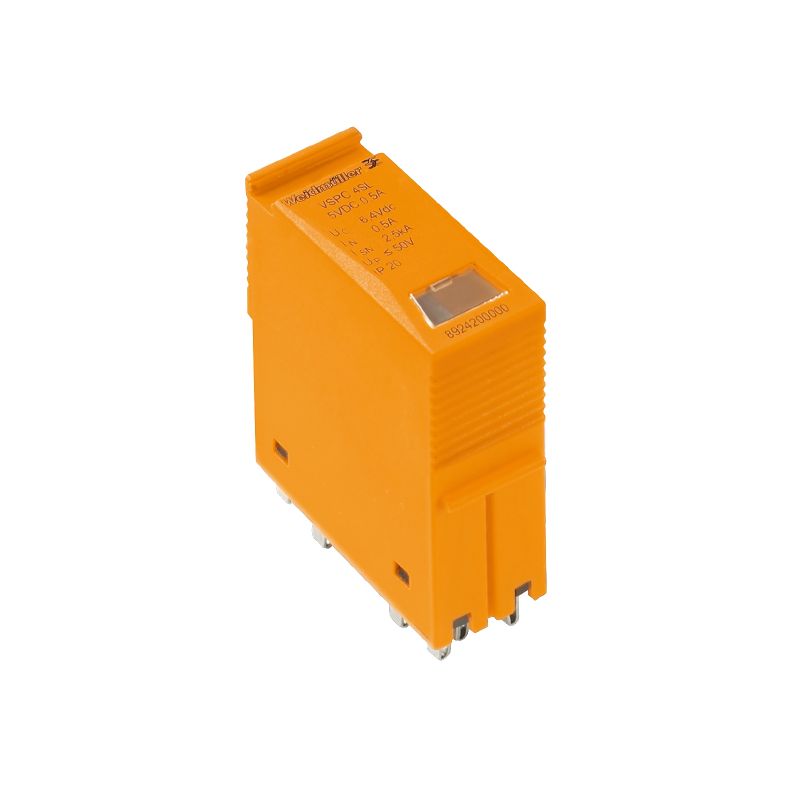

Introducing a robust surge protection device tailored for instrumentation and control systems This essential unit is designed to safeguard against overvoltage without any warning functionalities or indicators It accommodates a rated voltage of up to 800 V and operates effectively within a maximum input voltage of 15 V Meeting ROHS standards and featuring multiple approvals, including UL certification, this device is engineered to support defined surge currents, ensuring reliable protection for your current loops.

Features and Benefits:

•dimensions of 69 mm x 17.8 mm x 90 mm.

•net weight of 41 g.

•protection degree rated at IP20.

•UL certified component.

•color: orange.

•SIL rating in compliance with IEC 61508.

•temperature range for storage from -40 °C to 80 °C.

•operating temperature range from -40 °C to 70 °C.

•can withstand humidity levels from 5% to 96%.

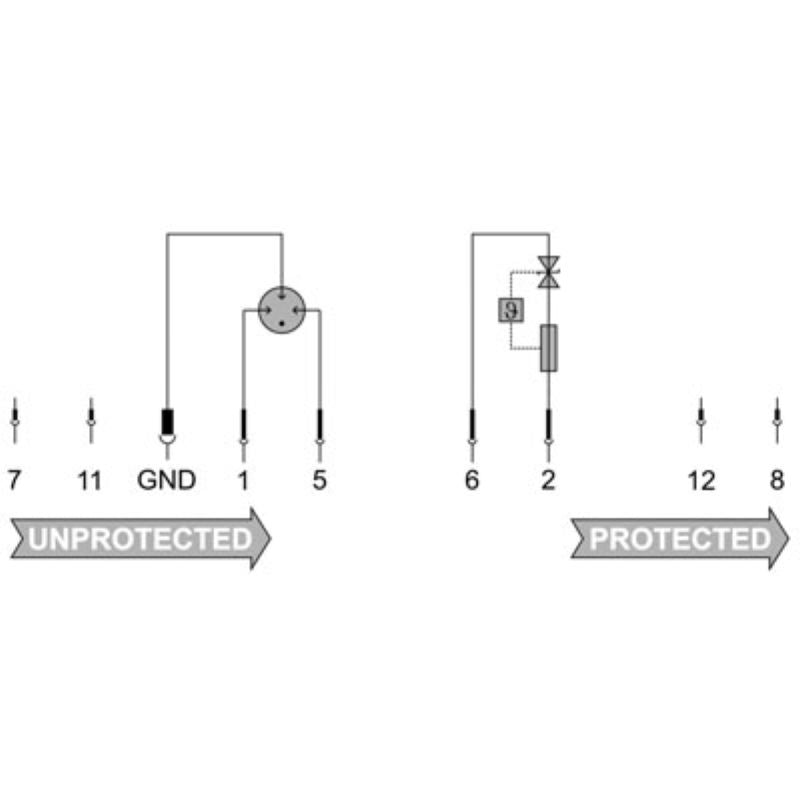

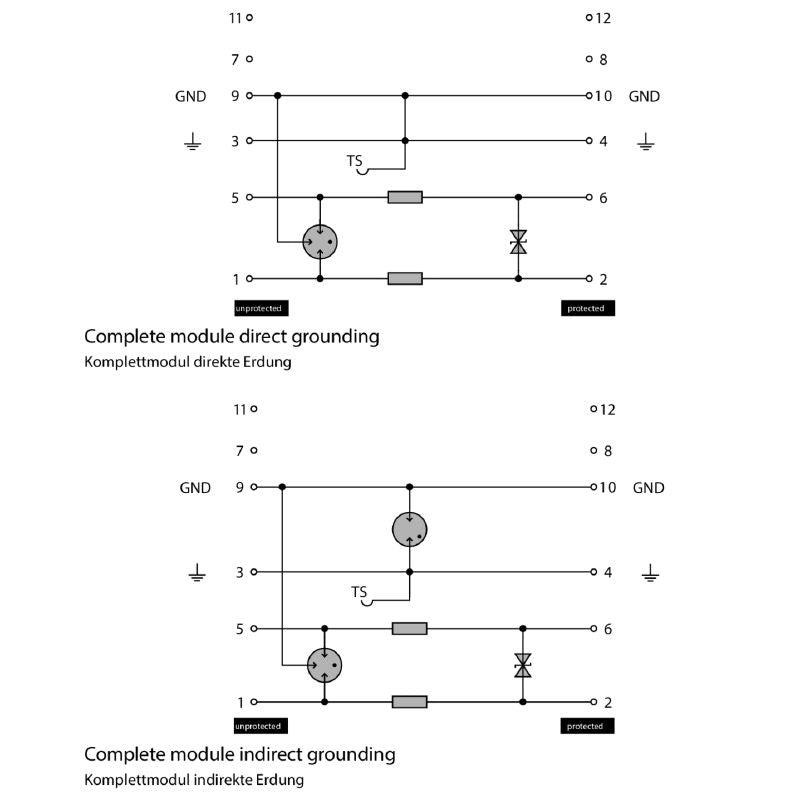

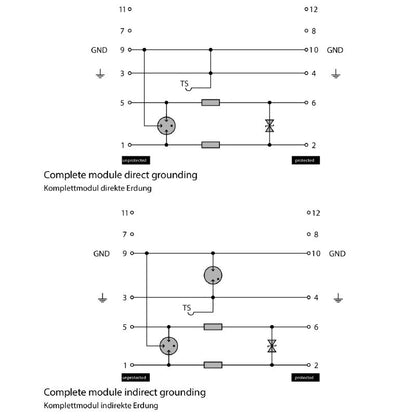

•equipped with two-stage protection circuit.

•surge protection for measurement and monitoring systems.

•protection for floating-ground driven paired cables.
