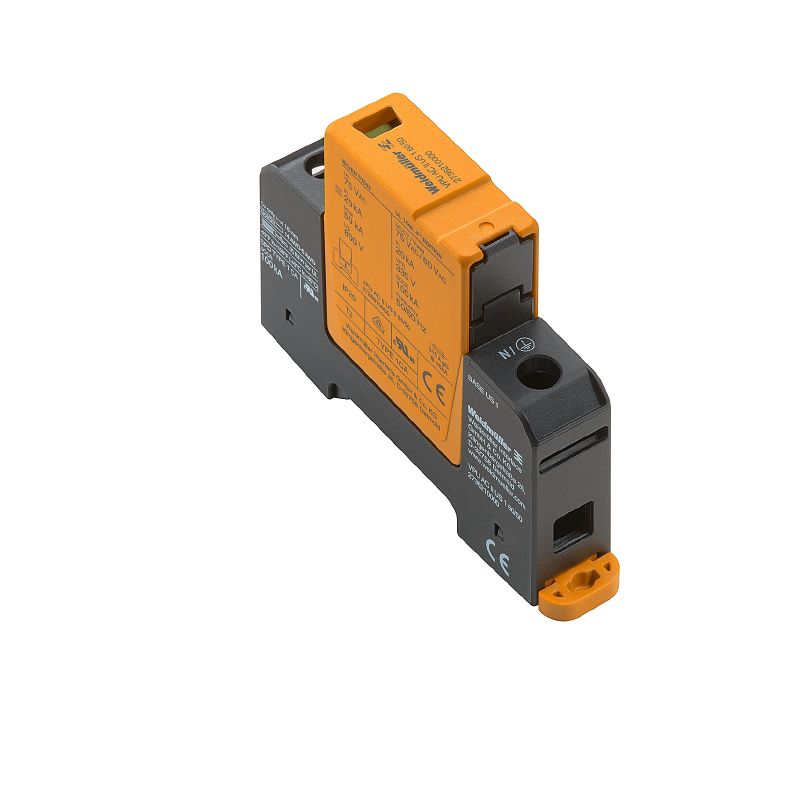

2736210000 - Low Voltage Surge Protector for Single-Phase Systems

2736210000 - Low Voltage Surge Protector for Single-Phase Systems

SKU: 2736210000   Download PDF

Select a Variant:
  • 2736210000 - Low Voltage Surge Protector for Single-Phase Systems
Qty:
Now $68.73   Web pricing policy
BEFORE   $0.00 Now $68.73 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the VPU AC II US 1 60/50, an essential device for safeguarding your single-phase systems against low voltage surges Complying with strict RoHS standards and boasting UL certification, this surge voltage arrester promises dependable performance Engineered to operate effectively in a wide temperature range from -40 °C to +85 °C, it also features a protection level of IP20 With a variety of rated specifications available, this product is built to efficiently manage surge voltages across different electrical configurations.

Features and Benefits:

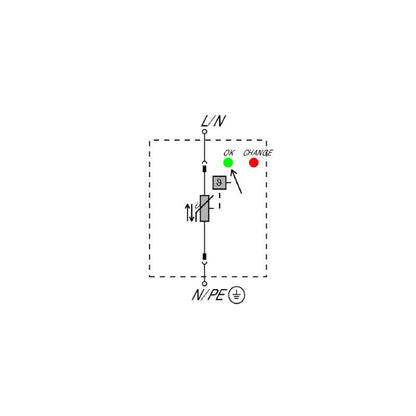

    •Includes an optical function display indicating operational status.

    •Compact design suitable for mounting on TS 35 rails.

    •Complies with RoHS without exemptions.

    •Operation up to an altitude of 4000 m.

Specifications:

 Depth 68 mm
 Height 90 mm
 Width 18 mm
 Storage temperature -40 °C...85 °C
 Operating temperature -40 °C...85 °C
 Humidity 5 - 95% relative humidity
 Rated Voltage U 60 V
 Max continuous voltage, Uc (AC) 75 V
 Number of poles 1
 Discharge current I max (8/20µs) wire-PE 50 kA
 Insulation coordination according to EN 50178 Pollution severity 2
 Protection level U at I N (L/N-PE) ≤ 0.8 kV
 Response time / fallback time ≤ 25 ns
