8951490000 - Surge Protection Plug with Two-Stage Circuit for VSPC BASE 2CL

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

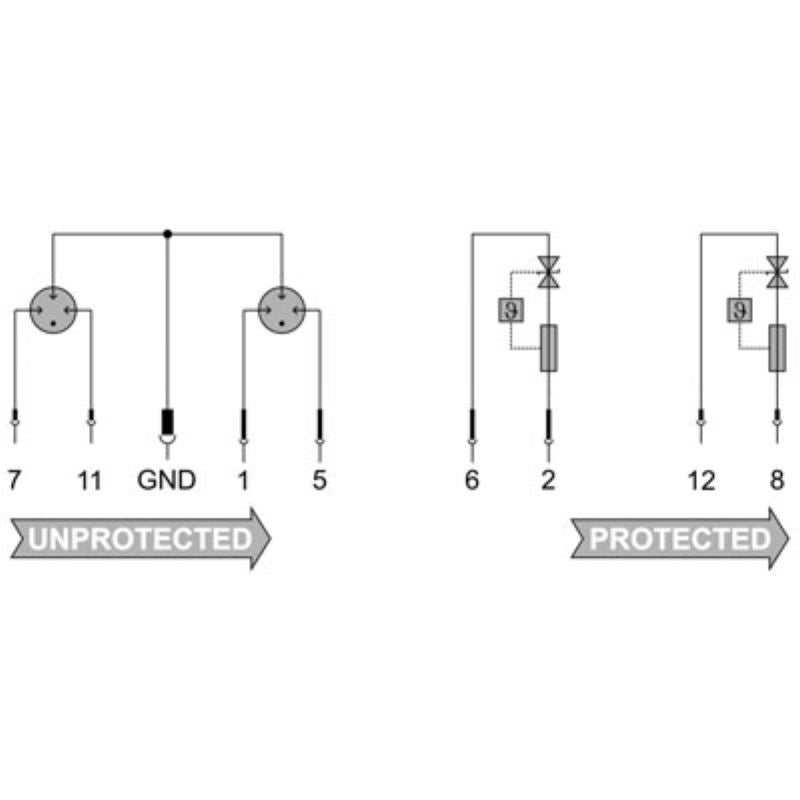

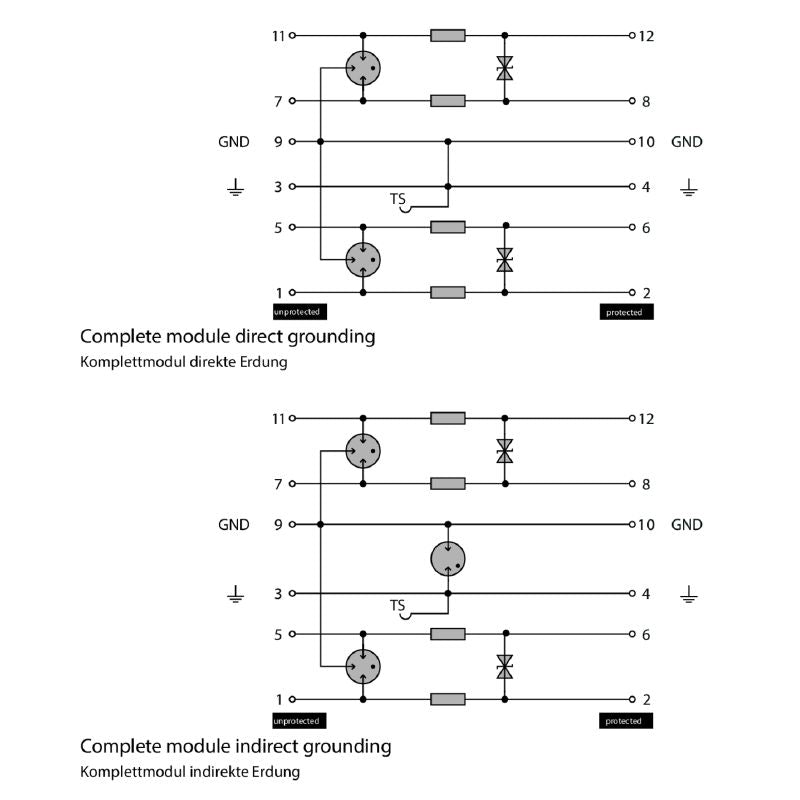

Introducing our specially designed surge protection plug, tailored for the VSPC BASE 2CL base element, ideal for two paired cables with a floating ground configuration This unit boasts a dual-stage protection circuit that combines coarse protection, decoupling resistors, and fine protection to shield signal wires from common mode voltage surges, while effectively grounding excess surges It features mechanical identification based on its switching type and voltage rating, ensuring compatibility with the base element.

For added convenience, the plug includes optical identification, clearly indicating the type of protected switching and the corresponding voltage levels.

Features and Benefits:

•RoHS compliant.

•IP20 protection degree.

•Rated for 48 V AC operation.

•Voltage-limiting part short-circuits to maintain equipment protection.

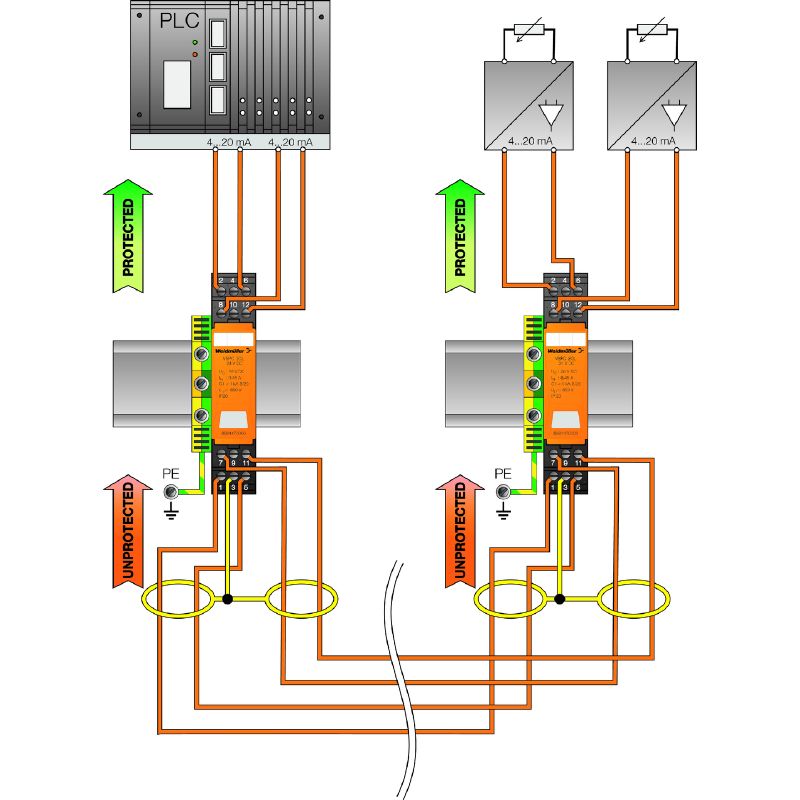

•Surge protection for instrumentation and control.

Specifications:
