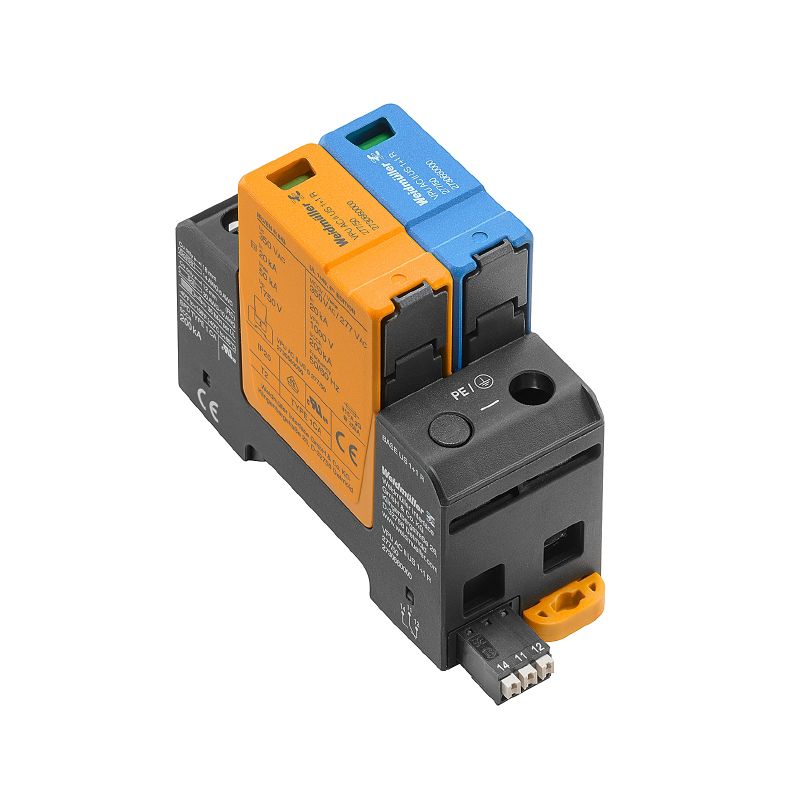

2730660000 - Compact Surge Arrester for Single-Phase Low Voltage Systems

2730660000 - Compact Surge Arrester for Single-Phase Low Voltage Systems

SKU: 2730660000 Download PDF

Variant:
  • 2730660000 - Compact Surge Arrester for Single-Phase Low Voltage Systems
Now $163.77
BEFORE   $0.00 Now $163.77
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a surge voltage arrester tailored for low voltage applications, this device is ideal for single-phase systems like TN, TT, and IT networks Equipped with remote contact functionality, it meets several industry approvals, including RoHS compliance Its order number is 2730660000, and the GTIN is 4050118807448 With a compact design, this arrester is perfect for installation in housing and can be easily mounted on standard TS 35 rail systems.

Features and Benefits:

    •Compact design suitable for installation housing.

    •Mountable on standard DIN rails.

    •Remote contact functionality.

    •Compliant with RoHS without exemptions.

    •Optical function display indicating operational status.

    •Surge protection in low voltage networks such as single-phase systems.

    •Installation in environments that require compliance with UL and IEC standards.

Specifications:

 Depth 68 mm
 Height 104.5 mm
 Width 36 mm
 Net weight 251 g
 Operating temperature -40 °C...85 °C
 Rated Voltage U 277 V
 MCOV (L-PE) 350 V
 Rated data UL {'Ambient temperature (operational), max.': '85 °C', 'Number of poles': '2', 'Protection degree': 'IP20 in installed state', 'SCCR': '200 kA'}
 Surge voltage category III
 Protection level U {'p at I': '≤ 1.75 kV', 'N-PE': '≤ 1.5 kV'}
 Connection type PUSH IN
 Discharge current I {'max (8/20µs) N-PE': '65 kA', 'n (8/20µs) N-PE': '40 kA'}
 Voltage type AC
