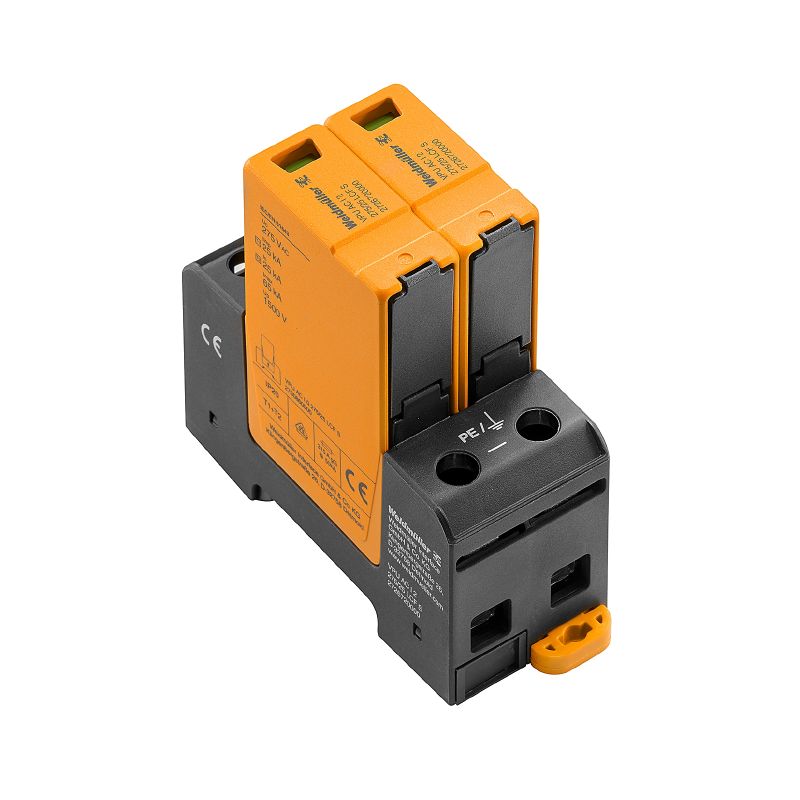

2726720000 - Compact Surge Voltage Arrester for Low Voltage, RoHS Compliant

2726720000 - Compact Surge Voltage Arrester for Low Voltage, RoHS Compliant

SKU: 2726720000 Download PDF

Variant:
  • 2726720000 - Compact Surge Voltage Arrester for Low Voltage, RoHS Compliant
Now $593.71
BEFORE   $0.00 Now $593.71
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a state-of-the-art surge voltage arrester crafted for low voltage applications This device offers leakage-current-free operation and reliable surge protection, making it an ideal choice for single-phase networks and TN-S systems It adheres to RoHS standards and operates efficiently within a broad temperature range of -40 °C to 85 °C Its compact design ensures hassle-free installation on mounting rails, making it a practical addition to your electrical setup.

Features and Benefits:

    •Leakage-current-free design.

    •Single-phase operation.

    •Suitable for TN-S systems.

    •Compact installation housing.

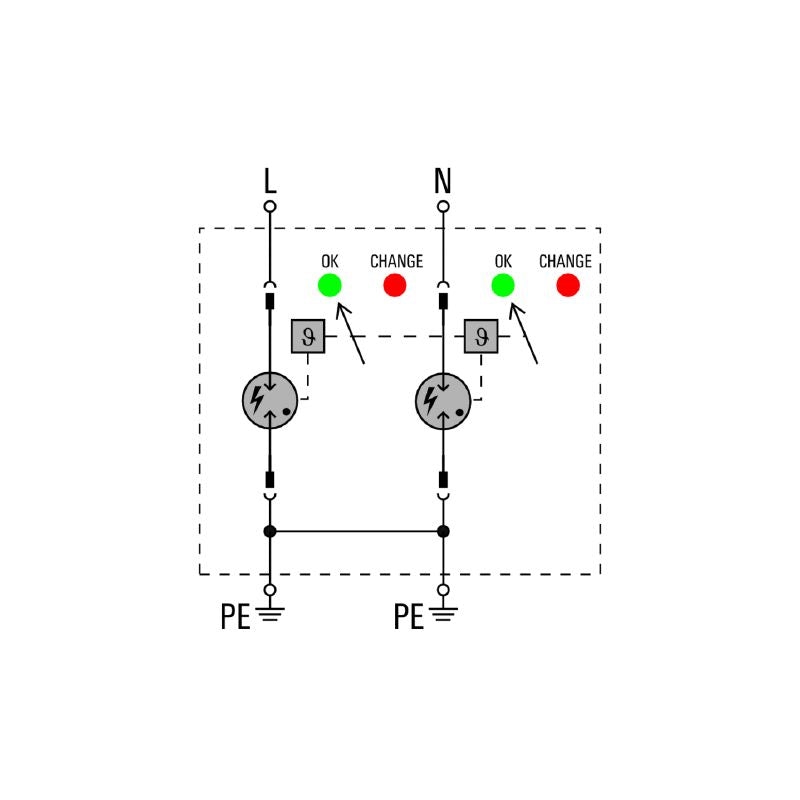

    •Green indicator for operational status, red indicator for defective state.

    •IP20 protection degree.

Specifications:

 Depth 91 mm
 Height 90 mm
 Width 36 mm
 Discharge current I max (8/20µs) wire-PE 65 kA
 Discharge current I n (8/20µs) wire-PE 25 kA
 Energy coordination (≤10 m) Type I, Type II, Type III
 Follow-on current extinguishing capability I fi 50 kA
 Mains voltage 230 V / 400 V
 Max. continuous voltage, Uc (AC) 275 V
 Protection level U p at I N (L/N-PE) ≤ 1.5 kV
 Rated voltage (AC) 230 V
 Requirements category acc. to IEC 61643-11 Type I, Type II
 Response time / fallback time <100 ns
 Short-circuit current rating I SCCR 50 kA
 Stripping length 18 mm
 Wire connection method Screw connection
 Clamping range, rated connection 16 mm²
 Clamping range, min. 1.5 mm²
 Clamping range, max. 35 mm²
 Wire cross-section, solid, min. 2.5 mm²
 Wire cross-section, solid, max. 35 mm²
 Voltage type AC
