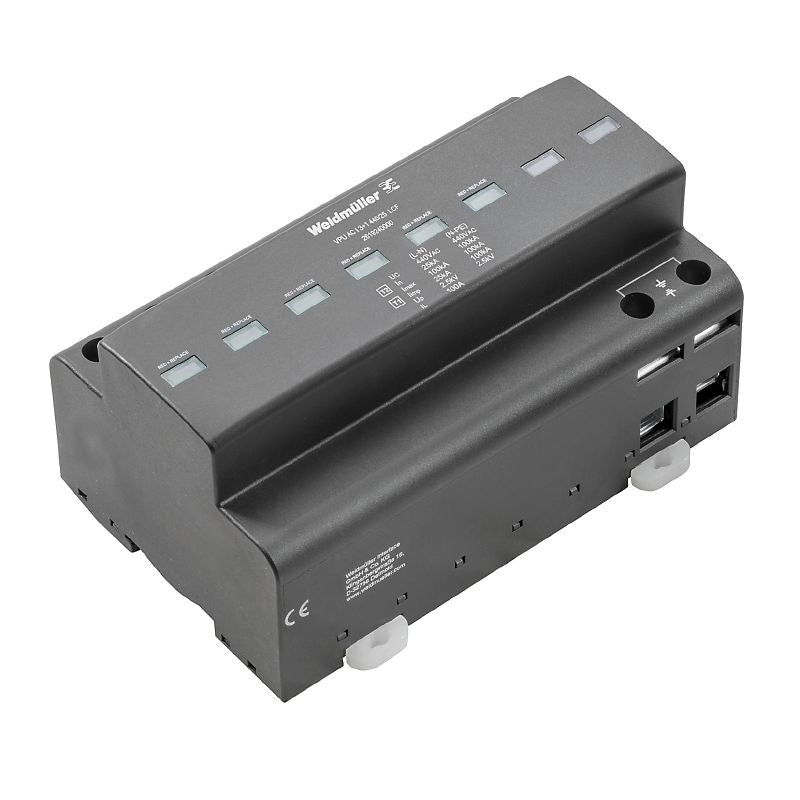

2619240000 - Surge Voltage Arrester, 93x90x144 mm, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the surge voltage arrester, expertly crafted for low voltage applications and versatile enough to protect various network types such as TN-C-S, TN-S, TT, IT with N, and IT without N Its compact design fits into an 8 TE installation housing, adhering to RoHS standards for environmental friendliness Measuring 144 mm in width, 90 mm in height, and 93 mm in depth, this arrester weighs 1,089 g, making it both sturdy and efficient.

It functions optimally within a temperature range of -40 °C to +85 °C and supports humidity levels from 5% to 95% Highlighting its advanced features, the arrester is equipped with optical function indicators—green signifies a healthy operational state, while red alerts you to a defect and signals that replacement is needed Protect your networks effectively and reliably with this essential surge protection device.

Features and Benefits:

•Compact design with installation housing.

• complies with RoHS standards without exemptions.

•Works with various low voltage networks.

•Operates in a wide temperature range.

•Equipped with optical function display.

•Used in power distribution systems.

•Count-in installation without leakage current.

Specifications:
