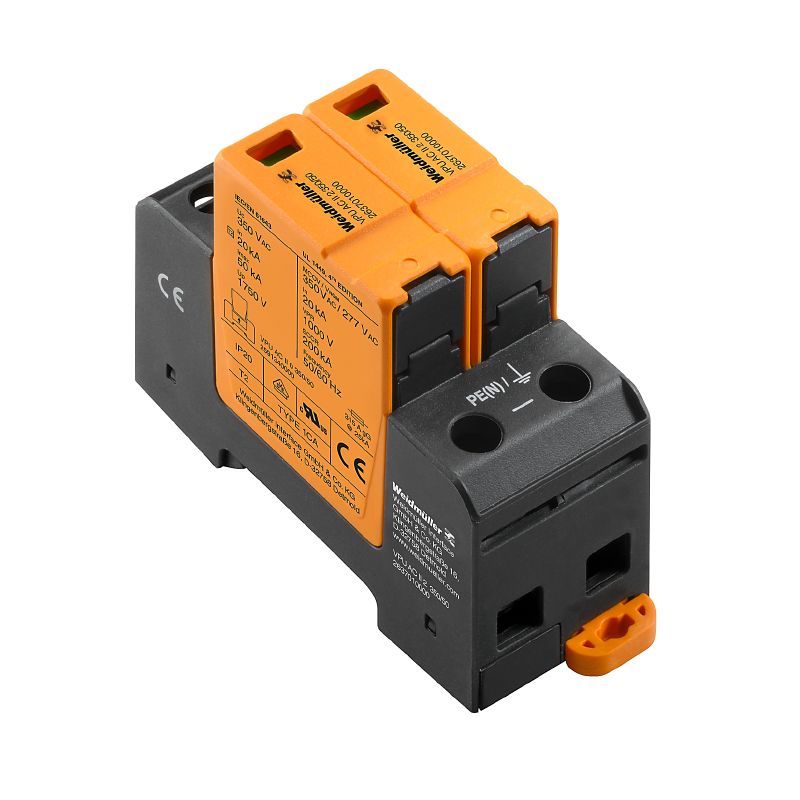

2637010000 - 90mm Surge Protector for 277V Low Voltage Applications

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VPU AC II 2 350/50 surge protection device, specially designed for low voltage single-phase systems, particularly those in TN configurations This device meets RoHS standards and is certified by cURus, ensuring high quality and safety With compact dimensions of 68 mm in depth, 90 mm in height, and 36 mm in width, it seamlessly fits into various installations It can operate effectively across a wide temperature range from -40 °C to 85 °C and is resilient in humidity levels from 5% to 95% relative.

Functioning at a rated voltage of 277V, this surge arrestor can handle a maximum continuous voltage of 350V, while safely managing surge voltages up to 2000V between line pairs Enhanced operational safety is provided with various disconnection options, making it a reliable choice for protecting your electrical systems.

Features and Benefits:

•RoHS compliant without exemption.

•Optical function display indicating operational status.

•Designed for easy installation with screw connections.

•Integrated back-up fuse not required.

•Flammability rating of V-0.

•Protection degree IP20 in installed state.

Specifications:
