Description:

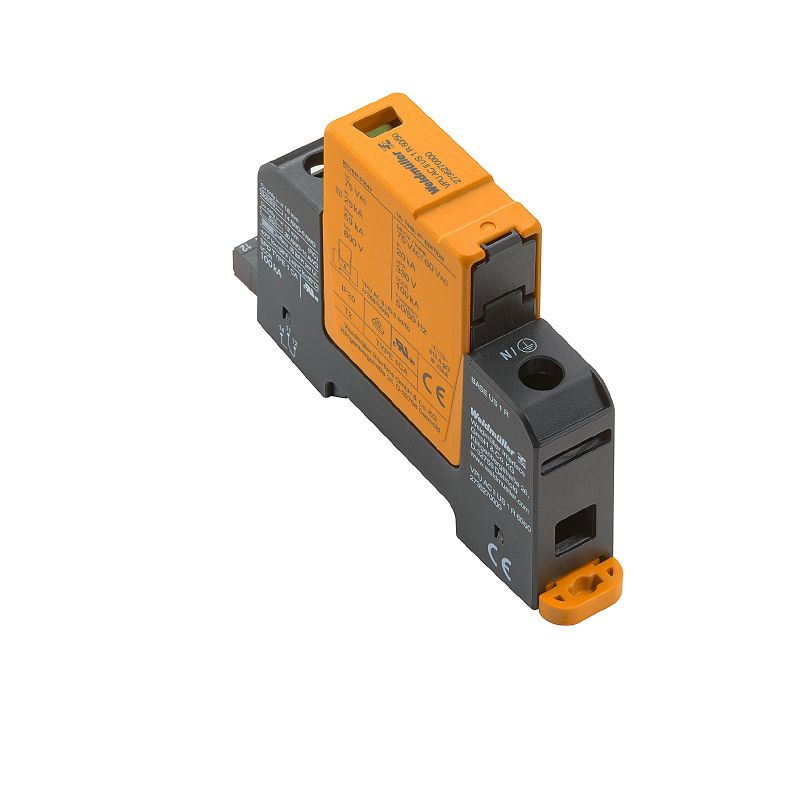

Introducing the VPU AC II US 1 R 60/50, a robust surge voltage arrester specifically engineered for low-voltage environments This unit offers reliable surge protection along with a remote contact function, making it ideal for single-phase systems that comply with TN standards With impressive certifications such as RoHS compliance and UL listing, this device guarantees adherence to stringent safety and environmental regulations.

It operates seamlessly in extreme conditions, withstanding temperatures from -40 °C to 85 °C and functioning effectively in humidity levels ranging from 5% to 95%.

Features and Benefits:

•RoHS Compliant without exemption.

•Surge voltage category III.

•Operating altitude of up to 4000 m.

•IP20 protection level while installed.

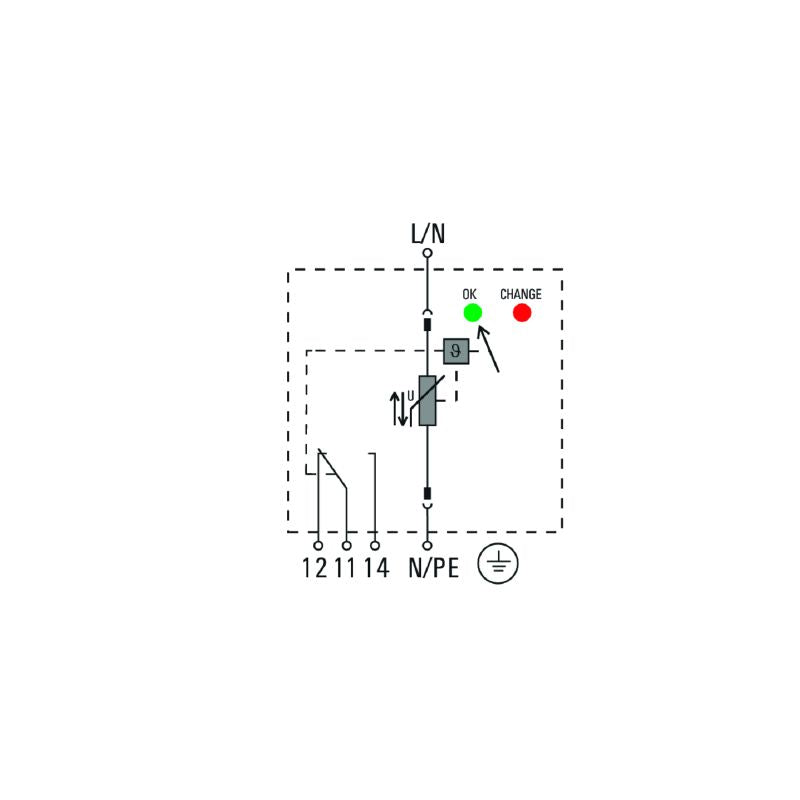

•Includes visual function display with green indicating operational status and red for defective status.

•Designed for easy installation in standard mounting rails.

Specifications:

Order No.	2736270000
Depth	68 mm
Height	111 mm
Width	18 mm
Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...85 °C
Rated Voltage U	60 V
MCOV (L-PE)	75 V
I_n	20 kA
Connection type	PUSH IN
Discharge current I_max (8/20µs) wire-PE	50 kA
Energy coordination	Type II and Type III
Number of poles	1
Response time	≤ 25 ns
Rated data IEC / EN	IEC 61643-11, EN 61643-11, UL 1449, NFPA 79
Connection data	Screw connection
Clamping range, rated connection	16 mm²
