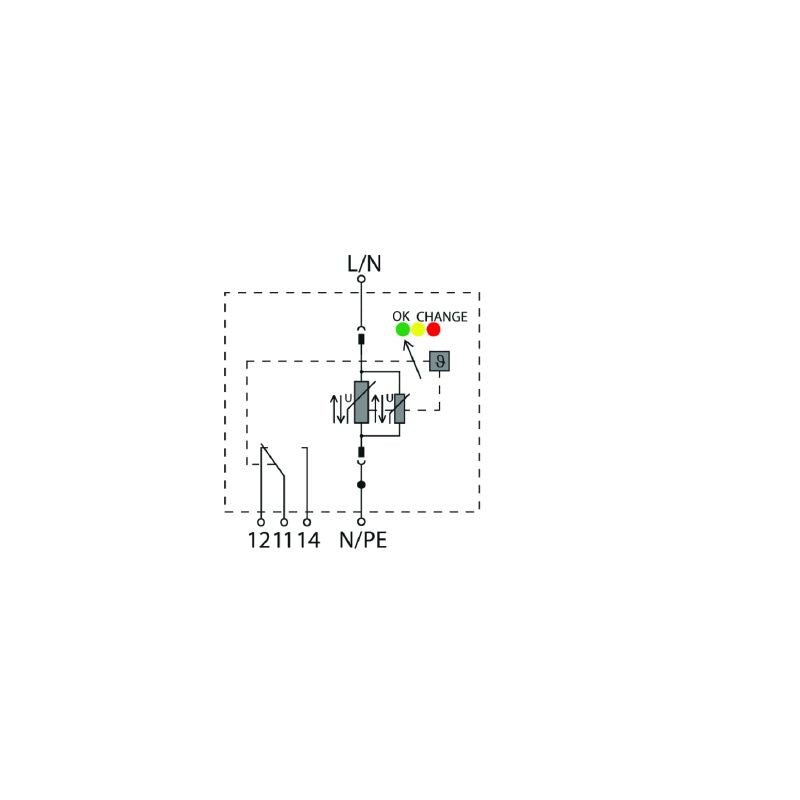

2639350000 - VPU AC II Surge Arrester, 70mm Depth, Remote Contact

SKU: SKU: 2639350000 Download PDF

Select a Variant:

2639350000 - VPU AC II Surge Arrester, 70mm Depth, Remote Contact

SET THE QTY:

Now $102.65 Web pricing policy

~~BEFORE $0.00~~ Now $102.65 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the VPU AC II 1 R 300/50 Y surge voltage arrester, specifically engineered for low voltage applications This reliable device features remote contact capabilities and is optimally designed for single-phase TN systems It has garnered approvals that meet both RoHS and UL standards, ensuring its safety and compliance With a temperature range from -40 °C to 85 °C, it can perform effectively in various environments.

Measuring 70 mm in depth, 111 mm in height, and 18 mm in width, this compact unit weighs just 146 g, making it a practical choice for your surge protection needs.

Features and Benefits:

•Compliant with RoHS without exemption.

•Green, yellow, and red optical indicators for status.

•Installation housing suitable for mounting rail TS 35.

•Protection degree of IP20 in installed state.

•Rated voltage of 240 V AC.

•Single-phase TN compatibility.

Specifications:

Depth	70 mm
Height	111 mm
Width	18 mm
Net weight	146 g
Operating temperature	-40 °C to 85 °C
Rated Voltage U	240 V
MCOV (L-PE)	300 V
SCCR	150 kA
I n	20 kA
Surge voltage category	III
Frequency range	50 Hz to 60 Hz
Number of poles	1
Protection degree	IP20 in installed state
Discharge current I max (8/20µs)	50 kA
Leakage current at U n	0.3 mA
Response time	≤ 25 ns
Connection type	PUSH IN
Cross-section for connected wire, solid core	0.25 mm² to 1.5 mm²
Rated data IEC / EN	Type II and Type III
