Description:

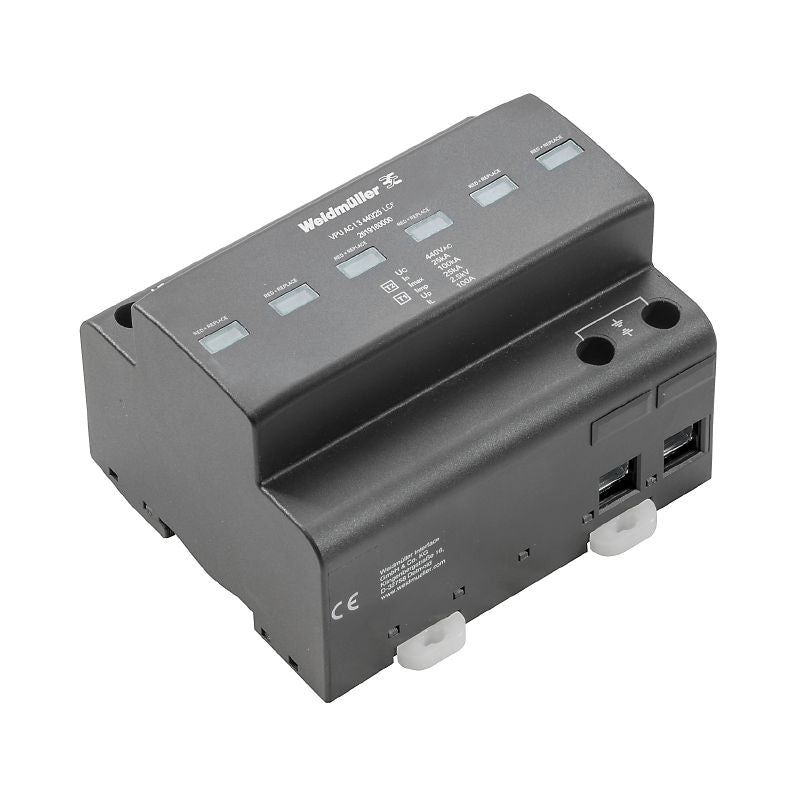

Ensure reliable surge protection with the VPU AC I 3 440/25 LCF, a low voltage surge voltage arrester specifically designed for TN-C systems This device is compliant with ROHS standards and operates effectively in temperatures ranging from -40 °C to 85 °C, with the ability to withstand the same storage temperature range It’s suitable for power distribution installations, handling a maximum continuous voltage of 440 V and offering a discharge capacity of 25 kA.

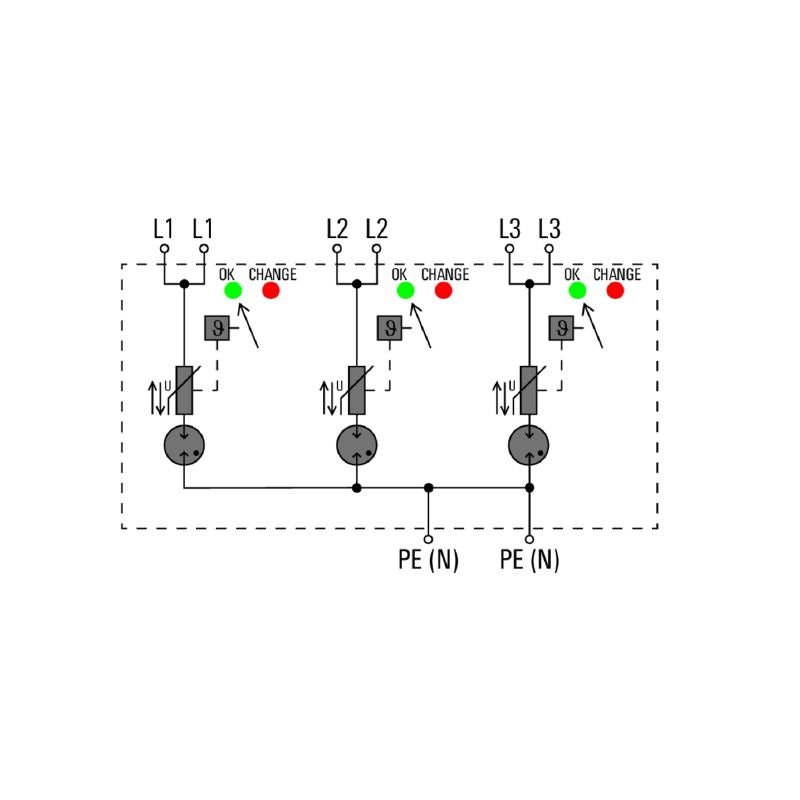

The product also includes an optical status display, featuring a green light for normal operation and a red light to signal when replacement is necessary Additionally, it adheres to IEC and EN standards and has an IP20 protection rating when installed.

Features and Benefits:

•RoHS compliant without exemption.

•Integrated optical function display for operational status.

•Protection level U_p at I_N is ≤ 2.5 kV.

•Frequency range between 50 Hz and 60 Hz.

•Suitable for count-in installation without leakage currents.

•V-0 flammability rating.

•Power distribution systems.

•Over-voltage protection in low voltage networks.

Specifications:

Depth	93 mm
Height	90 mm
Width	108 mm
MTBF	15 a
Operating altitude	≤ 2000 m
Rated load current I_L	100 A
Number of poles	3
Protection degree	IP20
Rated voltage (AC)	400 V
Discharge current I_n (8/20µs) wire-PE	25 kA
Lightning test current I_imp (10/350 µs)	25 kA
Max. continuous voltage, Uc (AC)	440 V
Response time / fallback time	≤ 25 ns
Short-circuit current rating I_SCCR	50 kA
Connection data	{'Stripping length': '13 mm', 'Tightening torque, min.': '2 Nm', 'Tightening torque, max.': '3 Nm', 'Clamping range, rated connection': '16 mm²', 'Wire connection method': 'Screw connection'}
