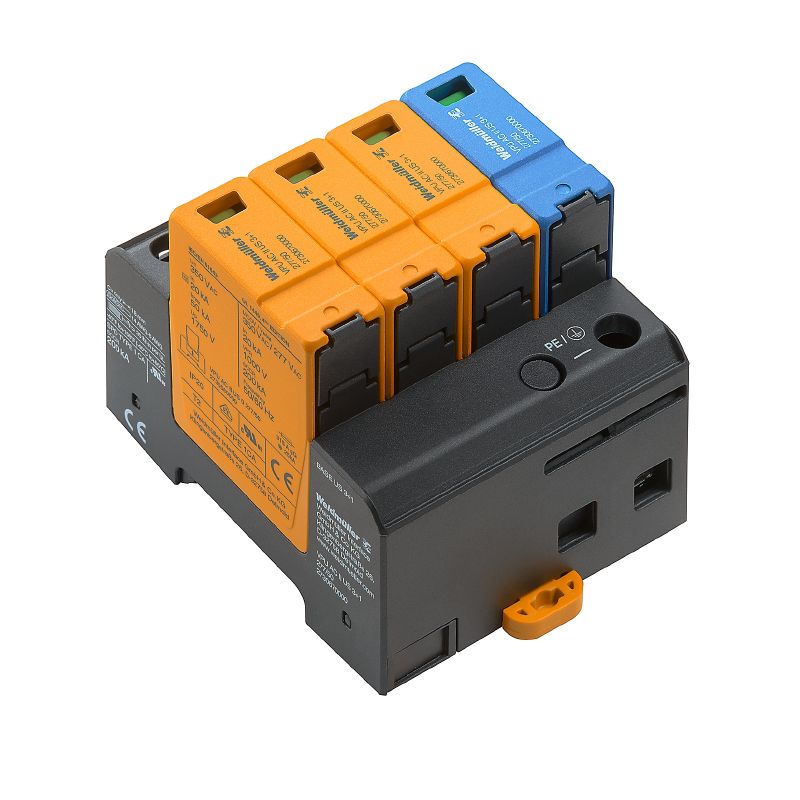

2730670000 - Surge Voltage Arrester for Low Voltage Systems

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The VPU AC II US 3+1 277/50 is a reliable surge voltage arrester ideal for low voltage applications It provides surge protection across a variety of network systems, including TN-C-S, TN-S, TT, and IT configurations, whether they utilize a neutral or not This device is both ROHS compliant and UL certified, boasting the file number E354261 for added assurance.

Features and Benefits:

•Compliant with ROHS and other environmental regulations.

•Available in several colors including orange, black, and blue.

•Designed for use in operational temperatures ranging from -40 °C to 85 °C.

•Displays optical functions with a green light indicating normal operation and a red light indicating the need for replacement.

•Rated for maximum continuous voltages of 350 V and 305 V across different connections.

•Includes a protection degree of IP20 in the installed state.

•Features screw connection for wire connection, allowing for a wide range of wire cross-sections.

Specifications:
