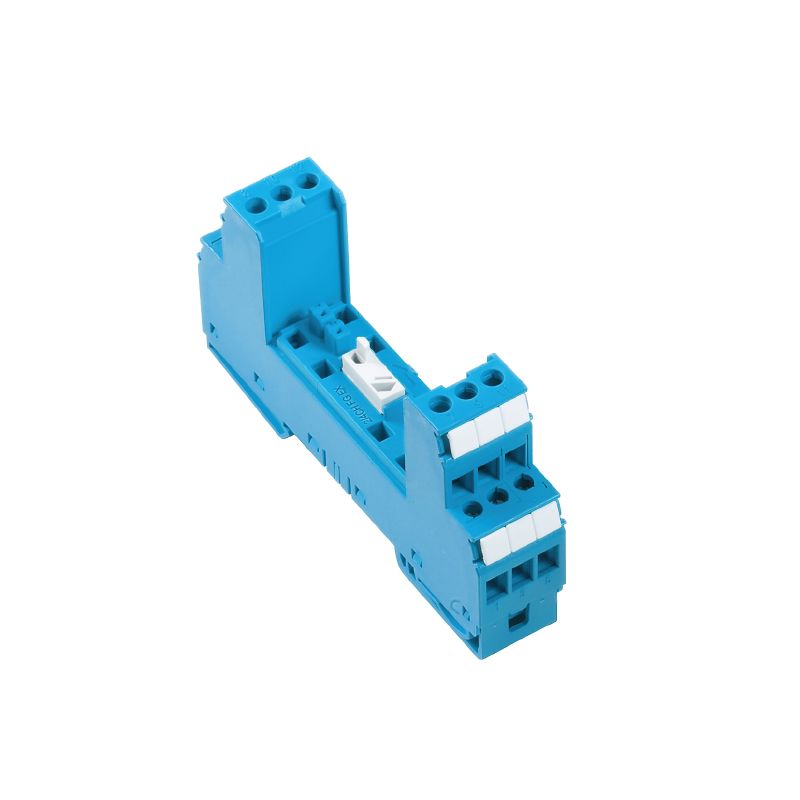

8951850000 - ATEX 4-Channel Sparkover Base with Mechanical Coding

8951850000 - ATEX 4-Channel Sparkover Base with Mechanical Coding

SKU: 8951850000   Download PDF

Select a Variant:
  • 8951850000 - ATEX 4-Channel Sparkover Base with Mechanical Coding
Qty:
Now $63.22   Web pricing policy
BEFORE   $0.00 Now $63.22 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

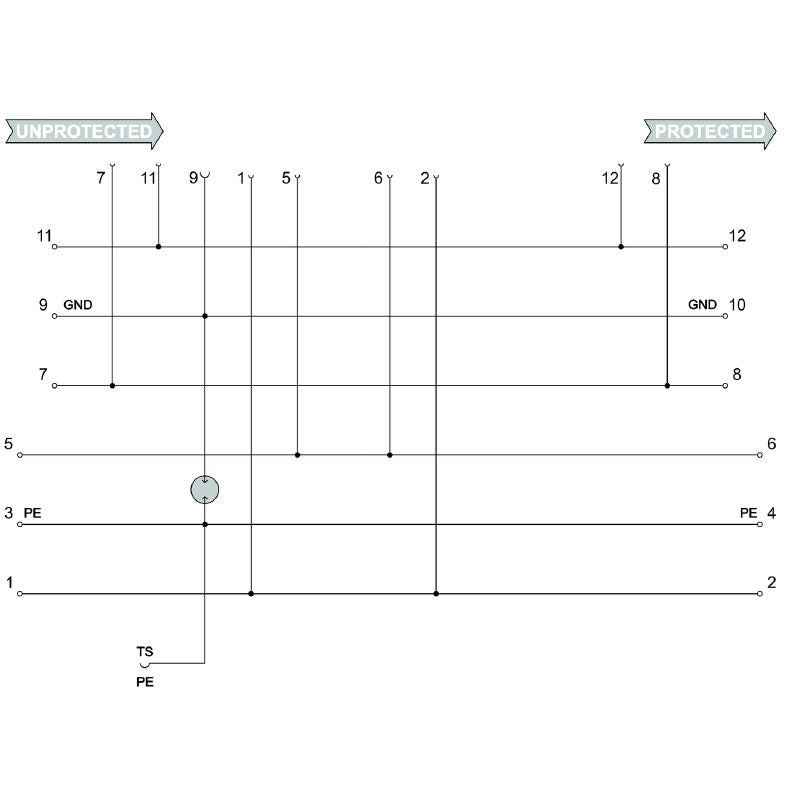

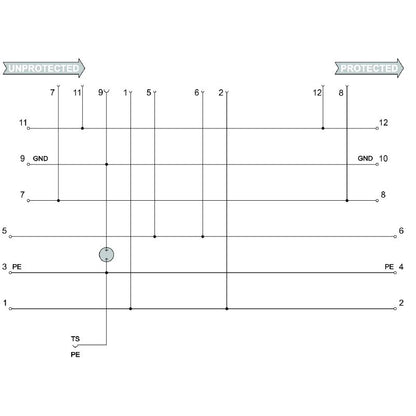

Introducing a cutting-edge base element crafted to house a secure plug for up to four floating-ground powered cable pairs Once installed, this base forms a simultaneous sparkover gap between the mounting rail (serving as the earth) and the reference potential (ground) of the protective switch within the plug This component is ideally designed for ATEX environments It includes mechanical coding that synchronizes with the plug according to the specified switching type and rated voltage, with the added feature of terminal marking for clarity.

Features and Benefits:

    •Surge protection included.

    •Flange-mounted housing.

    •Compliant with RoHS and various other standards.

    •IP20 protection degree.

    •Rated for AC/DC voltage types.

    •Mechanical coding to match the rated voltage and switching type.

    •Suitable for ATEX applications.

Specifications:

 Depth 69 mm
 Height 90 mm
 Width 17.8 mm
 Storage temperature -40 °C...80 °C
 Operating temperature -40 °C...70 °C
 Humidity 5...96 %
 Input-current, max. I 3300 mA
 Dielectric strength at FG against PE ≥ 500 V
 Stripping length 7 mm
 Type of connection Screw connection
 Tightening torque, min. 0.5 Nm
 Tightening torque, max. 0.8 Nm
 Clamping range, min. 0.5 mm²
 Clamping range, max. 4 mm²
 Wire cross-section, solid, min. 0.5 mm²
 Wire cross-section, solid, max. 4 mm²
 Wire connection cross section, finely stranded, max. 2.5 mm²
 Conductor cross-section, flexible, AEH (DIN 46228-1), min. 0.5 mm²
 Conductor cross-section, flexible, AEH (DIN 46228-1), max. 2.5 mm²
 Blade size 0.6 x 3.5 mm
 Protection degree IP20
 Flammability rating V-0
 Certified by ATEX and IECEx Yes
