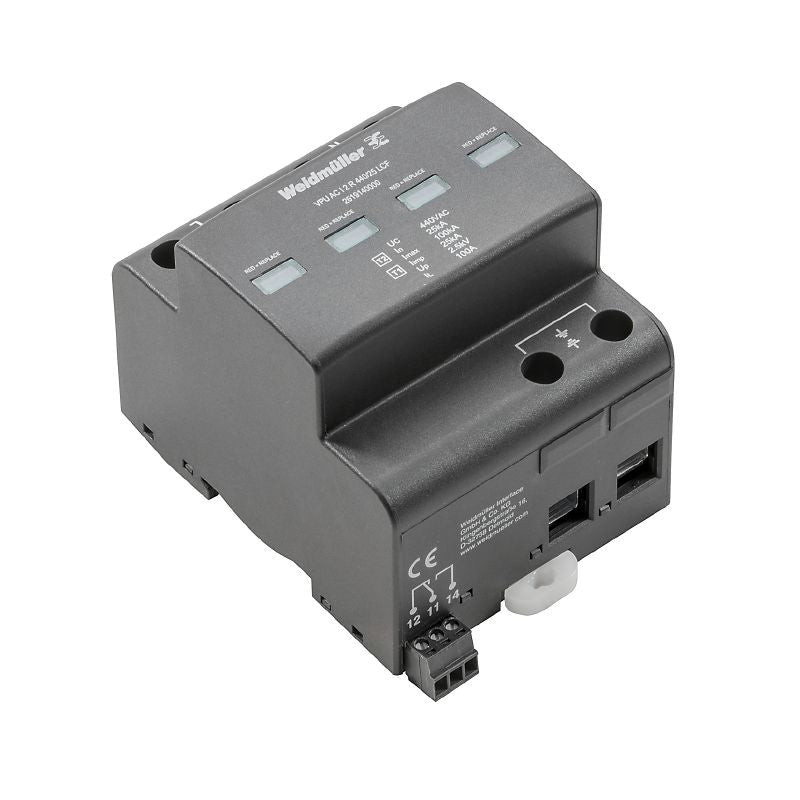

2619140000 - Surge Voltage Arrester for TN-S Systems, 93mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VPU AC I 2 R 440/25 LCF surge voltage arrester, expertly crafted for low voltage applications to safeguard your equipment from voltage spikes This model is tailored specifically for single-phase TN-S systems and measures 93 mm deep, 1045 mm tall, and 72 mm wide Weighing just 25 grams, it operates efficiently within a temperature range of -40 °C to 85 °C and can withstand humidity levels from 5% to 95% relative.

Additionally, this product adheres to RoHS standards without any exemptions, ensuring eco-friendliness and safety The inclusion of a remote contact feature makes it an essential component for reliable surge protection.

Features and Benefits:

•Compliant with RoHS standards.

•Installation housing includes a four-terminal configuration.

•IP20 protection grade when installed.

•Includes an optical function display indicating operational status.

•Mountable on TS 35 mounting rail.

•Designed for count-in installation without leakage current.

•Protection in power distribution systems.

Specifications:
