Description:

Introducing the VPCB PV I+II R M 1000, a product that meets ROHS compliance and is specifically engineered for photovoltaic applications With its compact dimensions of 522 mm in depth, 616 mm in height, and 179 mm in width, this lightweight component weighs just 20 g It operates efficiently across a broad temperature spectrum, from -40 °C to 85 °C, and is built to endure humidity levels ranging from 5% to 95%.

Designed with environmental regulations in mind, it also features an IP20 protection rating, ensuring reliability in its intended use.

Features and Benefits:

•RoHS compliant without exemption.

•Designed for photovoltaic applications.

•Can operate in varying environmental conditions.

•Kits include necessary components for installation.

Specifications:

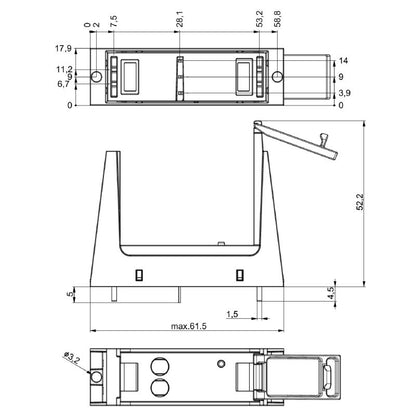

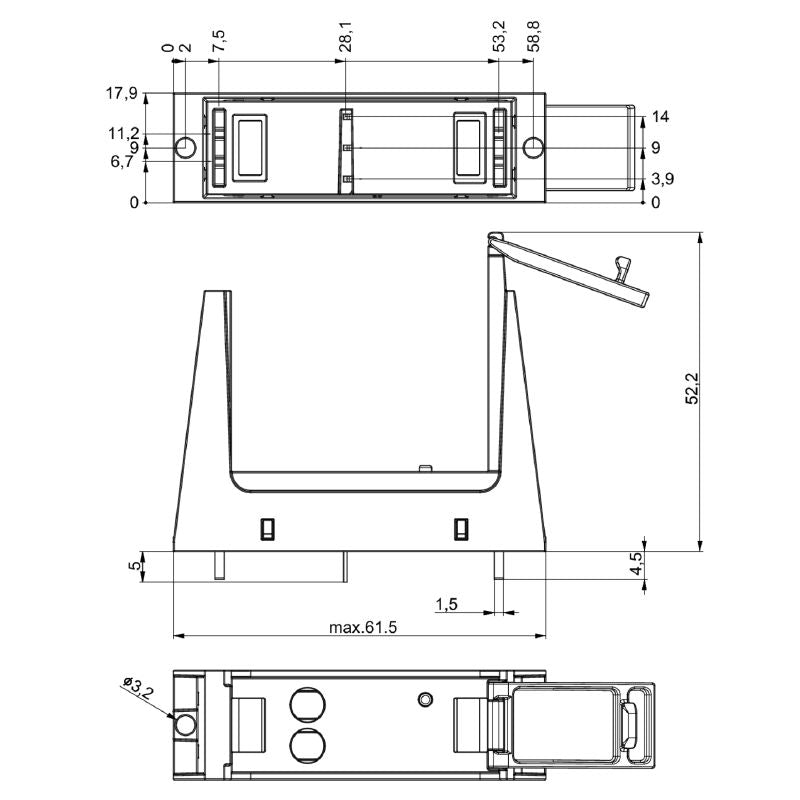

Depth:	52.2 mm
Height:	61.6 mm
Width:	17.9 mm
Net weight:	20 g
Storage temperature:	-40 °C...85 °C
Operating temperature:	-40 °C...85 °C
Humidity:	5 - 95% relative humidity
Protection degree:	IP20
UR 94 flammability rating:	V-0
Number of poles:	1

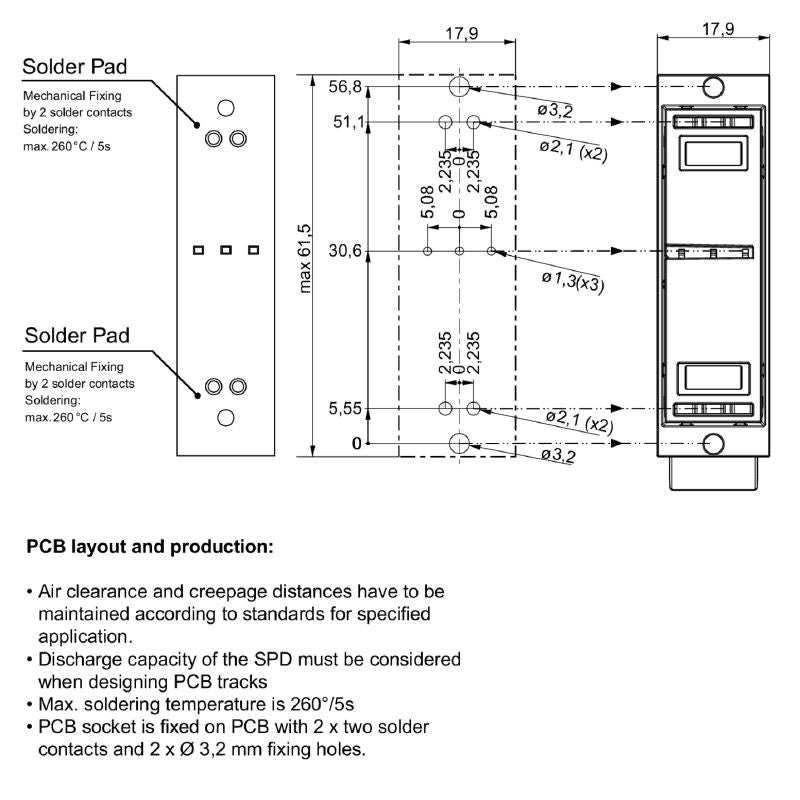

Type of connection:	Solder connection
Voltage type:	DC
Surge voltage category:	III
Photovoltaic system voltage, max.:	1,500 V
Discharge current (8/20 µs):	20 kA
Lightning test current (10/350 µs):	6.25 kA
Short-circuit current (I SCPV):	11 kA

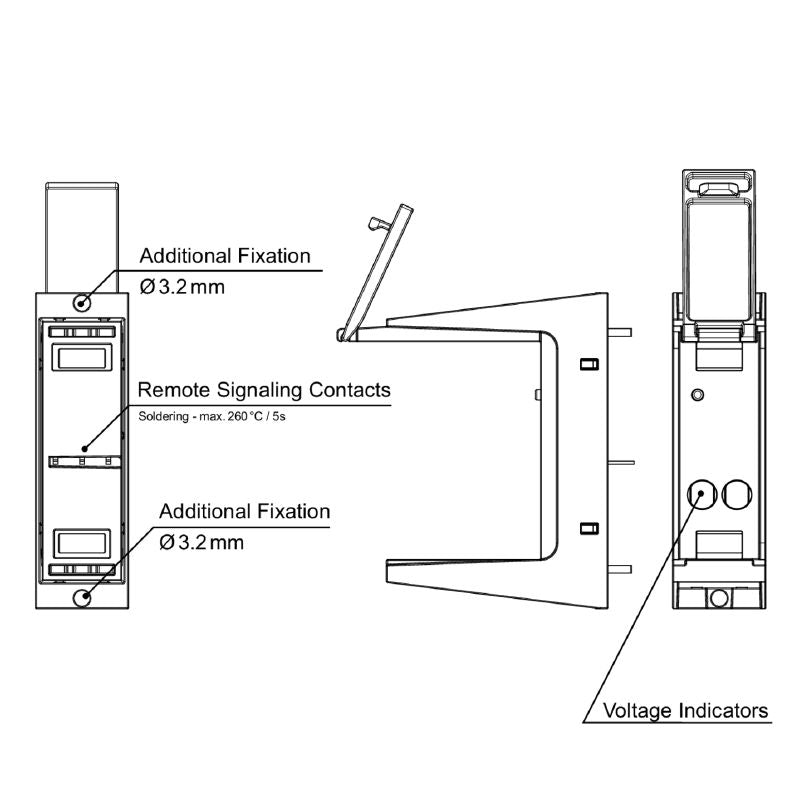

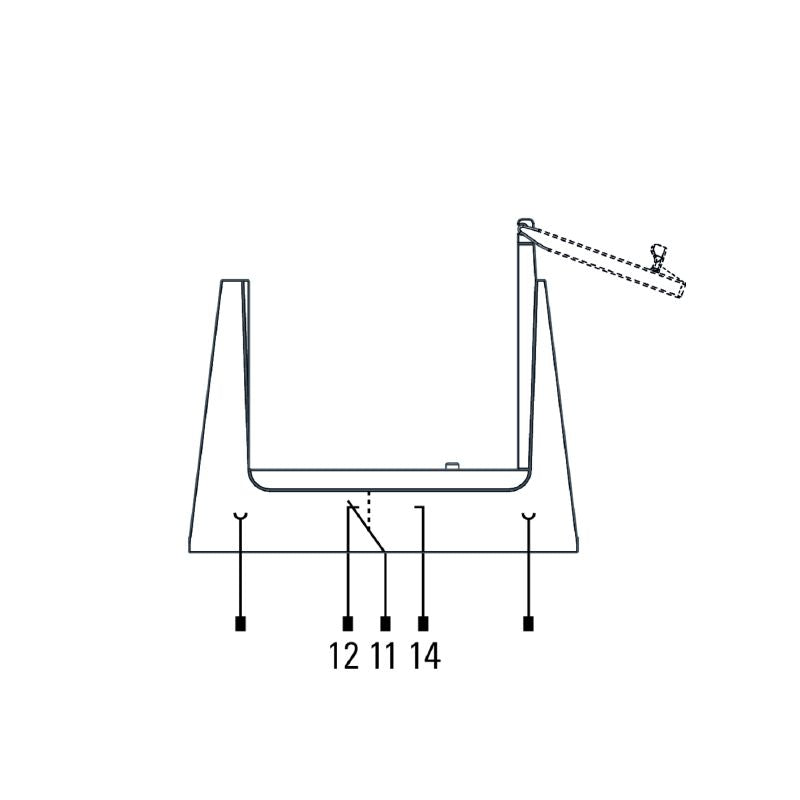

Signalling contact:	250 V / 0.5 A, 48 V CC / 0.5 A
