2756000000 - Surge Protection Device for Solar Inverters, 1500V IP65/IP67

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

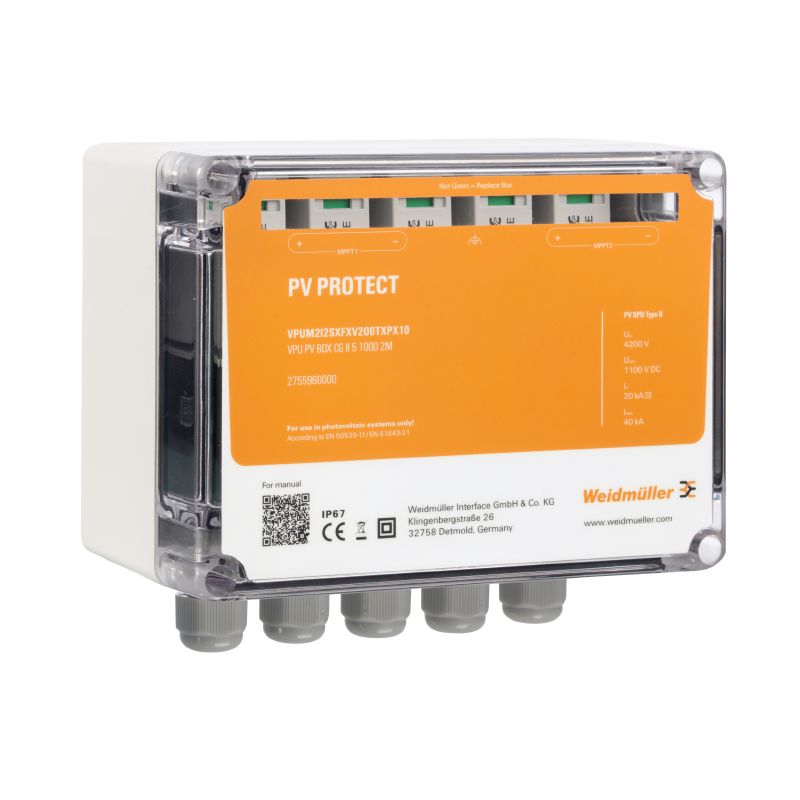

Ensure optimal performance of your solar panel system with this robust surge protection device (SPD) box, tailored specifically for the DC side of solar inverters equipped with two maximum power point trackers (MPP) Capable of handling a maximum string voltage of 1500 V, it boasts integrated surge protection of type II Encased in a durable plastic enclosure, this device complies with both IP65 and IP67 standards for water and dust resistance.

It operates efficiently across a wide temperature range of -40 °C to 85 °C and is designed to function in humidity levels from 5% to 95% relative humidity The SPD box facilitates easy installation with cable entries via cable glands and provides reliable internal terminal connections.

Features and Benefits:

•Designed for inverters with 2 MPPs.

•Max string voltage supported: 1500 V.

•Protection degree: IP67.

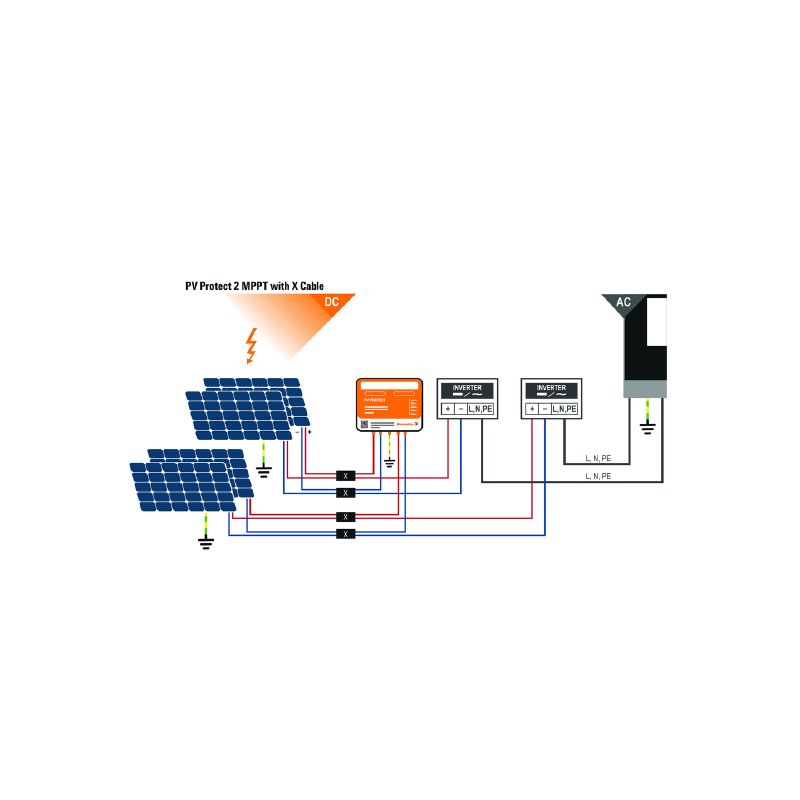

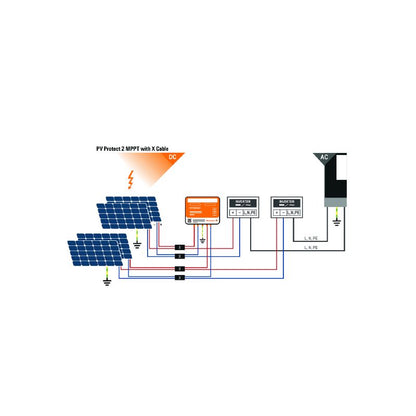

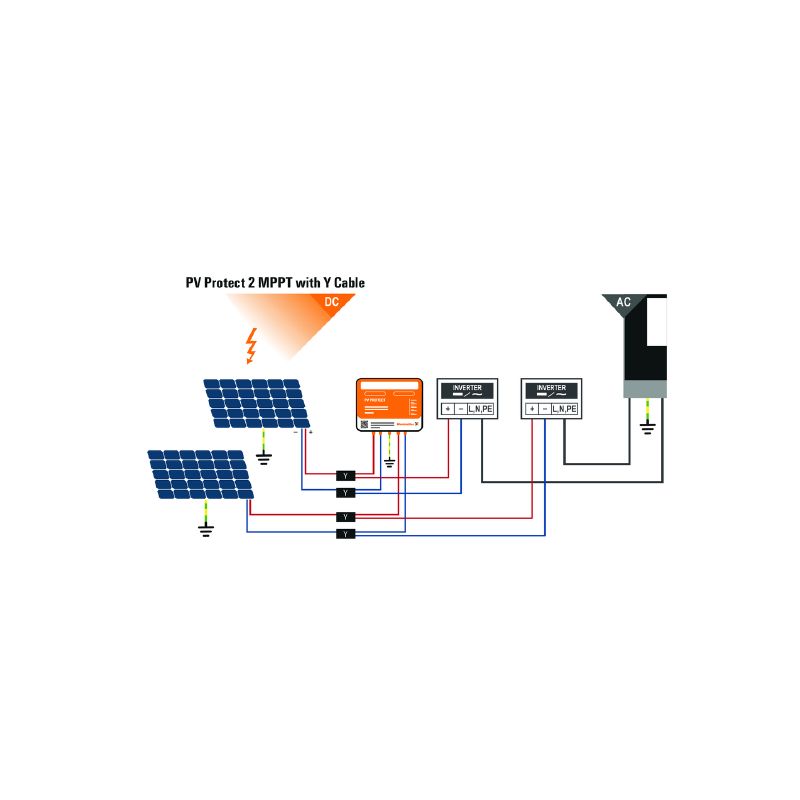

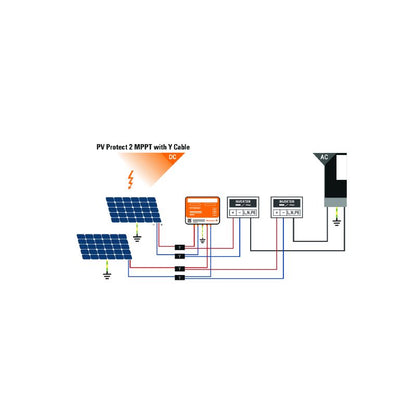

•Can be used in both grounded and ungrounded PV systems.

•Surge protection class: Type II.

•Plastic enclosure allows for durable protection.

•Used to protect the DC side of solar inverters.

Specifications:
