8924530000 - Compact Surge Protector, 69mm Depth, 800V Compatible

Description:

Introducing the VSPC 1CL 60VAC, a sophisticated solution for surge protection tailored for instrumentation and control applications, lacking indicator functions This device meets ROHS standards and carries UL certification (File Number E311081) It is proficient in handling input voltages of up to 800 V, all while operating without a warning system With compact dimensions of 69 mm in depth, 90 mm in height, and 17.

8 mm in width, and a lightweight design at just 40 grams, this product is easily installed in various settings It functions efficiently in a wide temperature range of -40 °C to 70 °C and is built to endure relative humidity between 5% and 96% Notably, the VSPC 1CL demonstrates a low probability of failure, aligning with SIL compliance level 3 as specified by IEC 61508, boasting an impressive mean time to failure of 2,537 years, which underscores its excellent reliability in performance.

Features and Benefits:

•Designed for use with VSPC BASE elements.

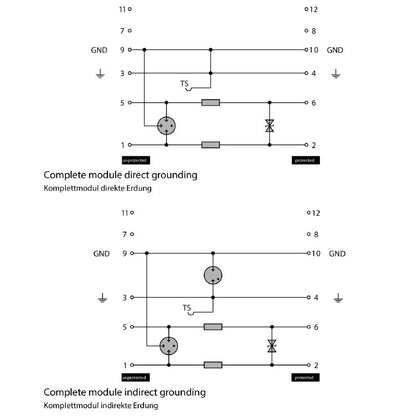

•Offers two-level protection circuits including coarse and fine protections.

•Suitable for floating-ground driven paired cables.

•Mechanical and optical identification for easy integration.

•Surge protection for instrumentation and control systems.
